Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

AMBIENT AIR TEMPERATURE SENSOR (EXCLUSIVE TO MULTI-CENTER DISPLAY) CHECK






CAUTION : The ambient air temperature sensor should be checked without removing it. If the sensor is removed, it is no longer serviceable.

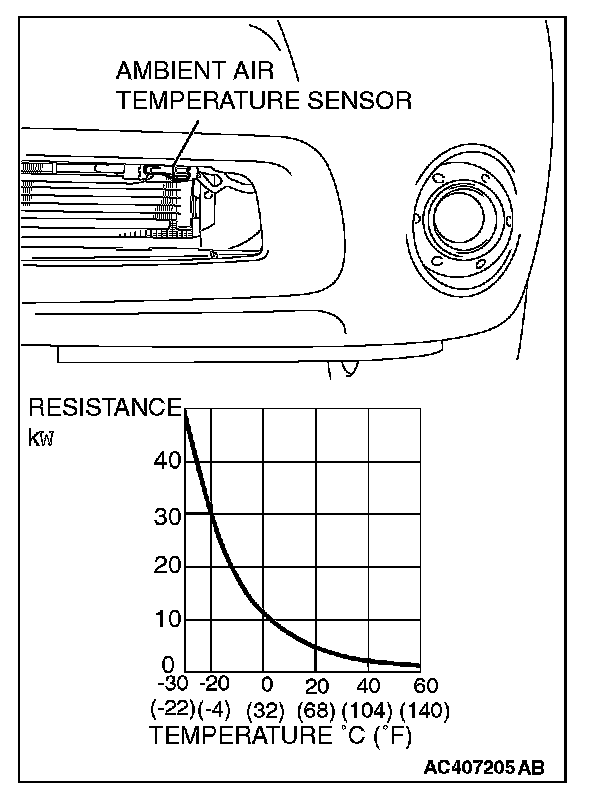

Measure the resistance between the sensor terminals under a least two temperatures. The resistance values should meet the values shown.

NOTE: The temperature should be within the shown range.
