Data List Reference Table
This document has been updated per TSB# 09-52b-001.
DATA LIST REFERENCE TABLE
The following items can be read by the scan tool from the SRS-ECU input data.

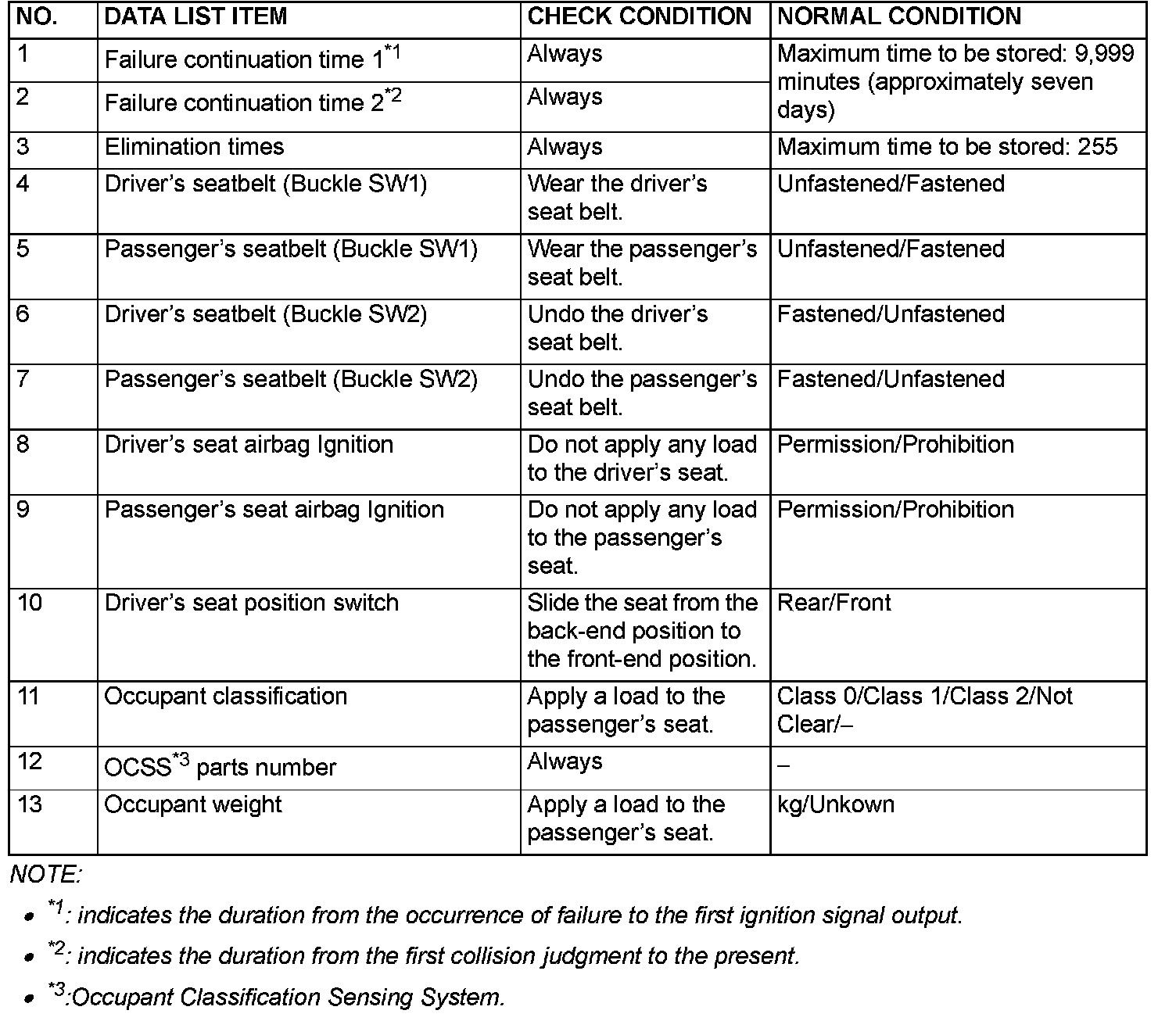

Data List Reference Table:
