Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Freeze Frame Data For General Scan Tool

Freeze Frame Data For General Scan Tool

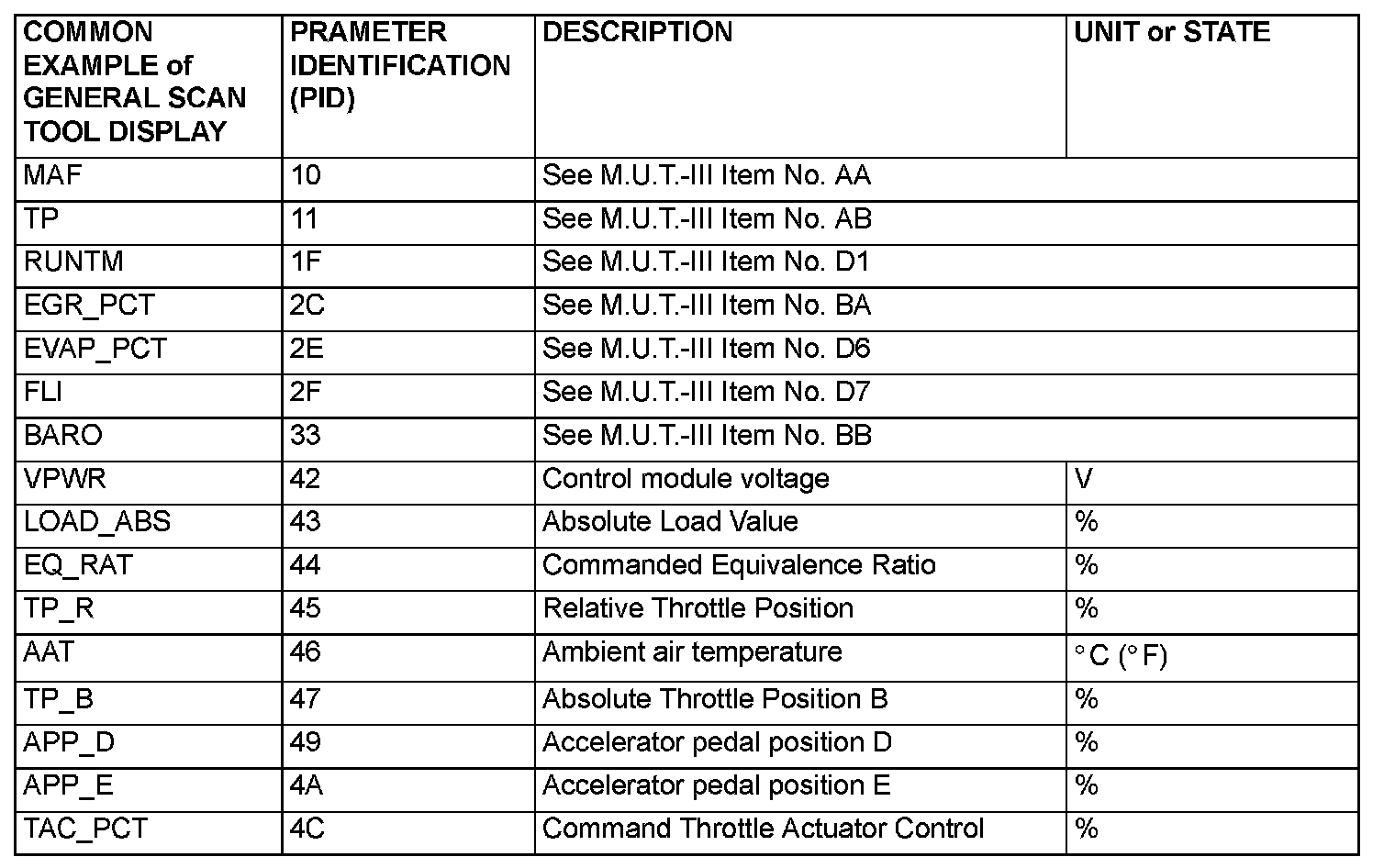

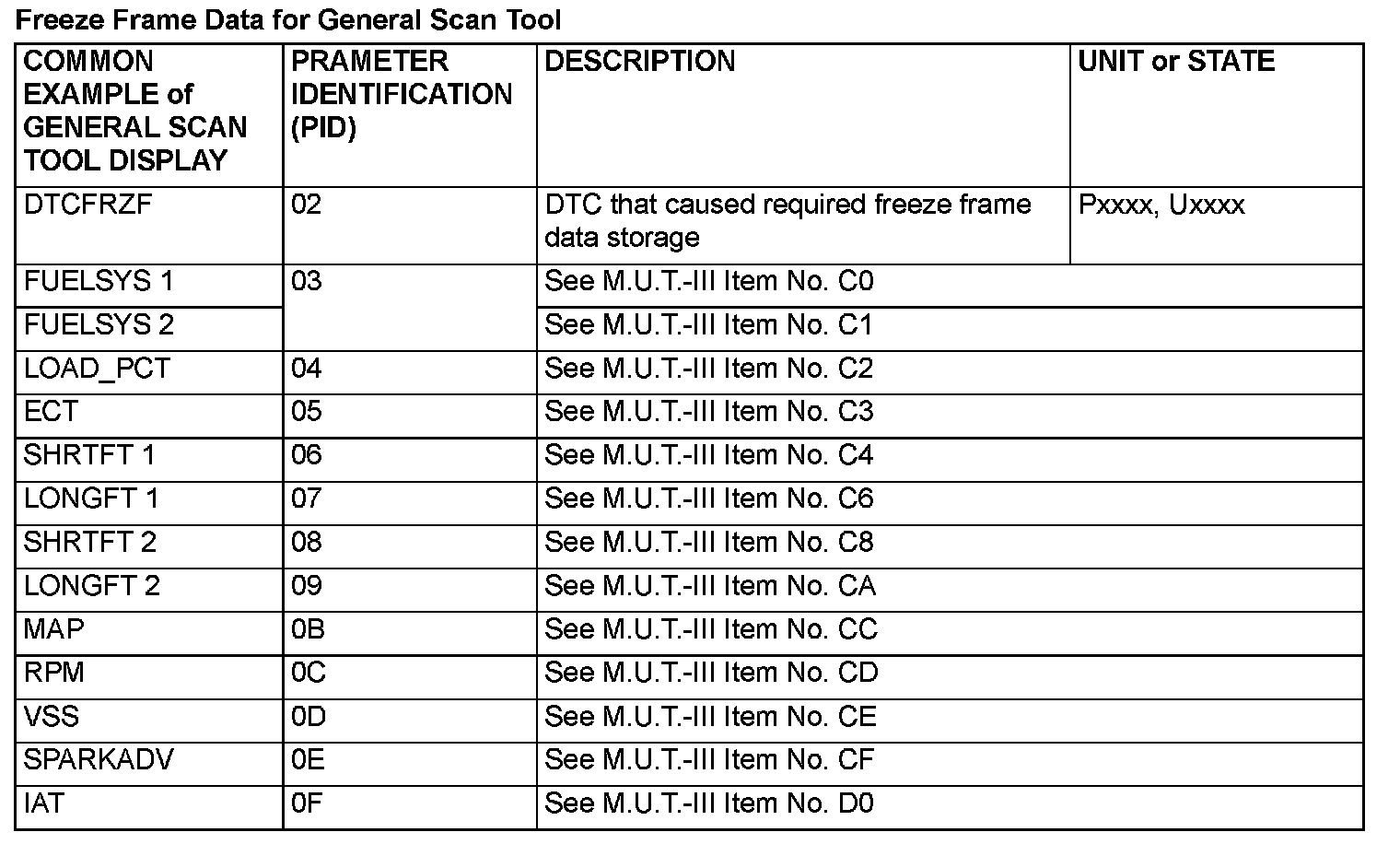

Freeze Frame Data For General Scan Tool (Part 1):



Freeze Frame Data For General Scan Tool (Part 2):
