Pinout Values and Diagnostic Parameters

CHECK AT THE ENGINE CONTROL MODULE (ECU) [M/T] OR THE POWERTRAIN CONTROL MODULE (PCM) [A/T]

1. Disconnect the ECM [M/T] or the PCM [A/T] connectors B-18, B-19, B-20, B-21 and B-22, and connect check harness special tool MB991923 between the ECM [M/T] connectors or the PCM [A/T] connectors.
2. Measure the voltage between each check harness connector terminal and check harness connector ground terminal (No. 25 or No. 29).

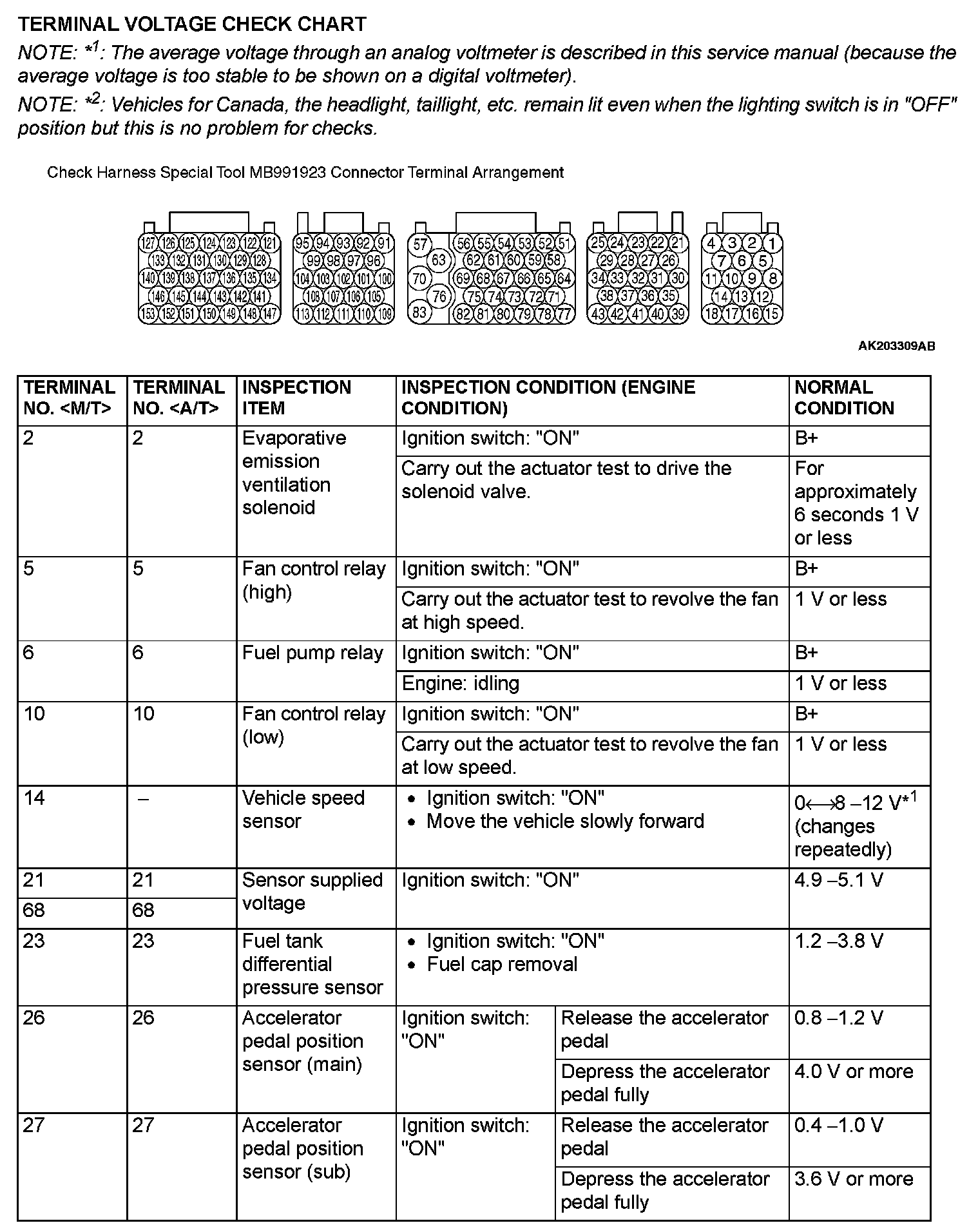

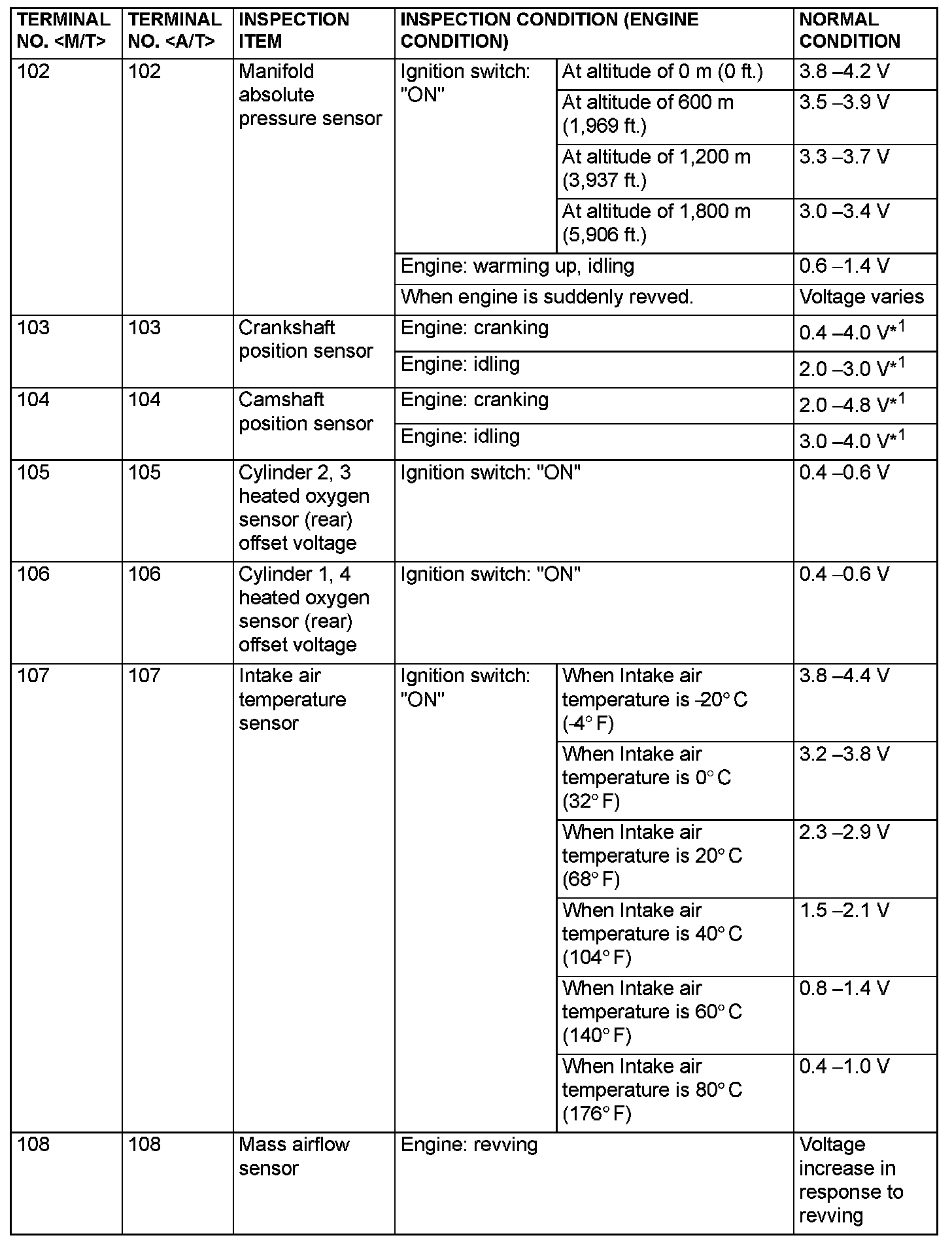

TERMINAL VOLTAGE CHECK CHART

Terminal Voltage Check Chart (Part 1):

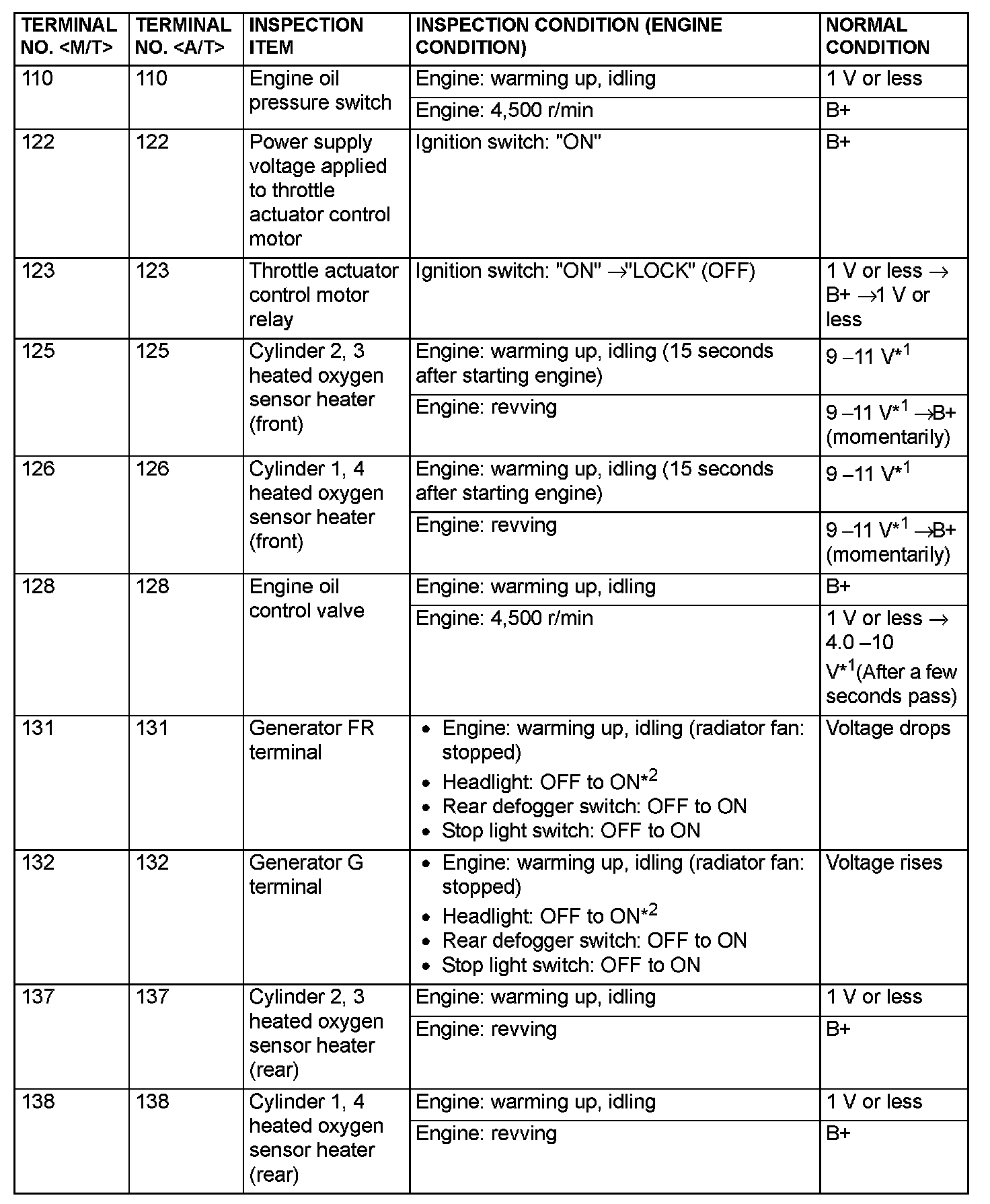

Terminal Voltage Check Chart (Part 2):

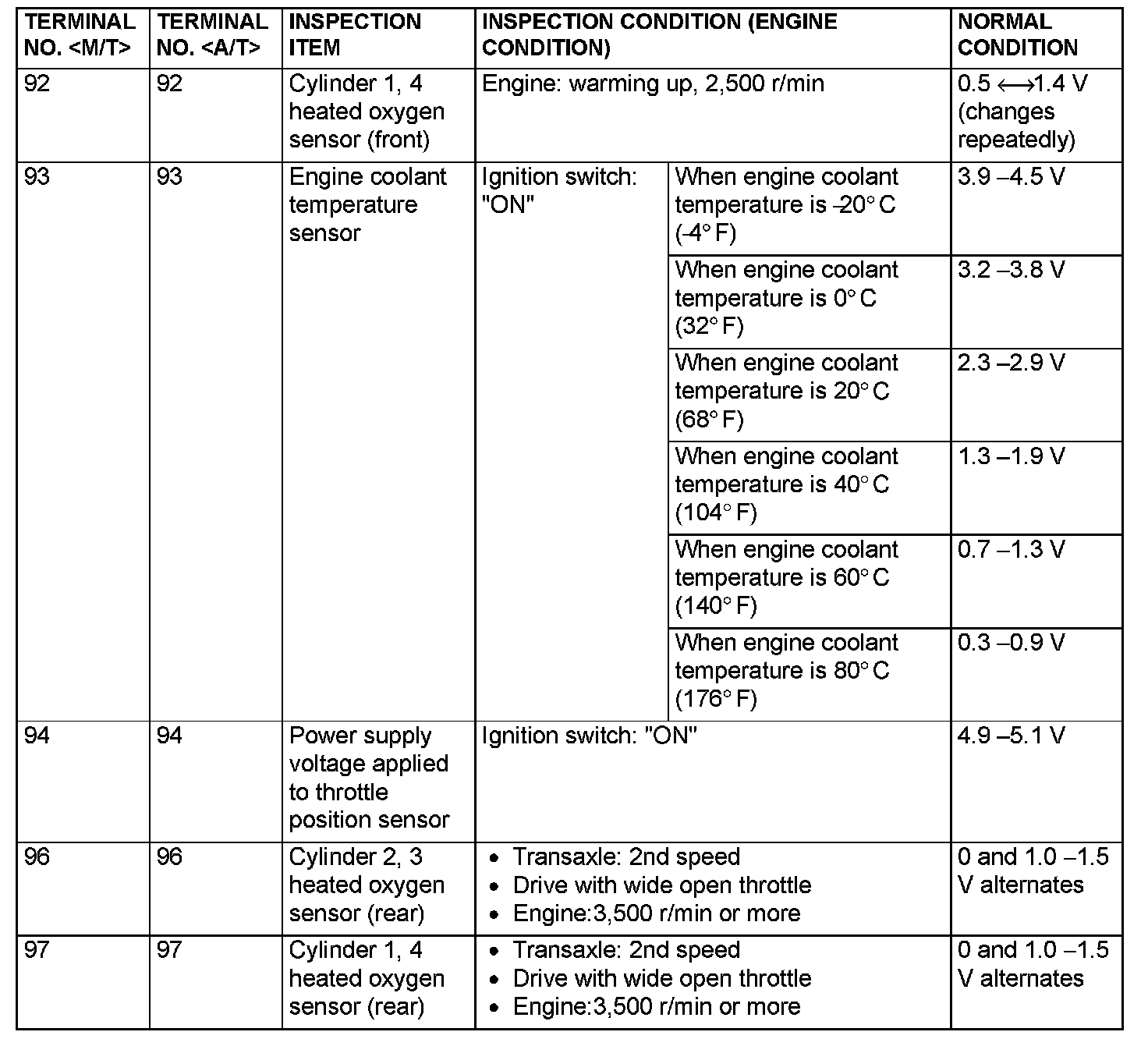

Terminal Voltage Check Chart (Part 3):

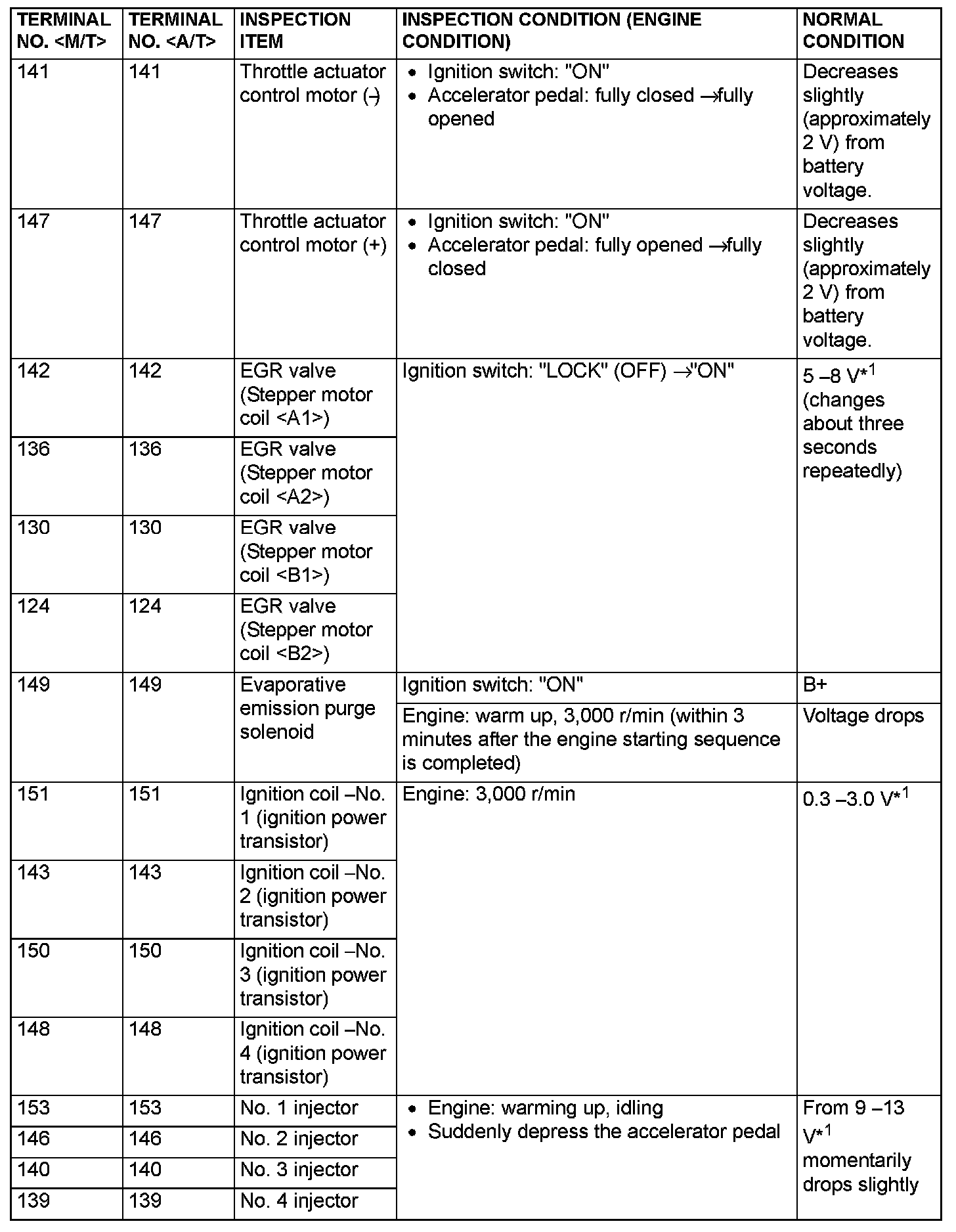

Terminal Voltage Check Chart (Part 4):

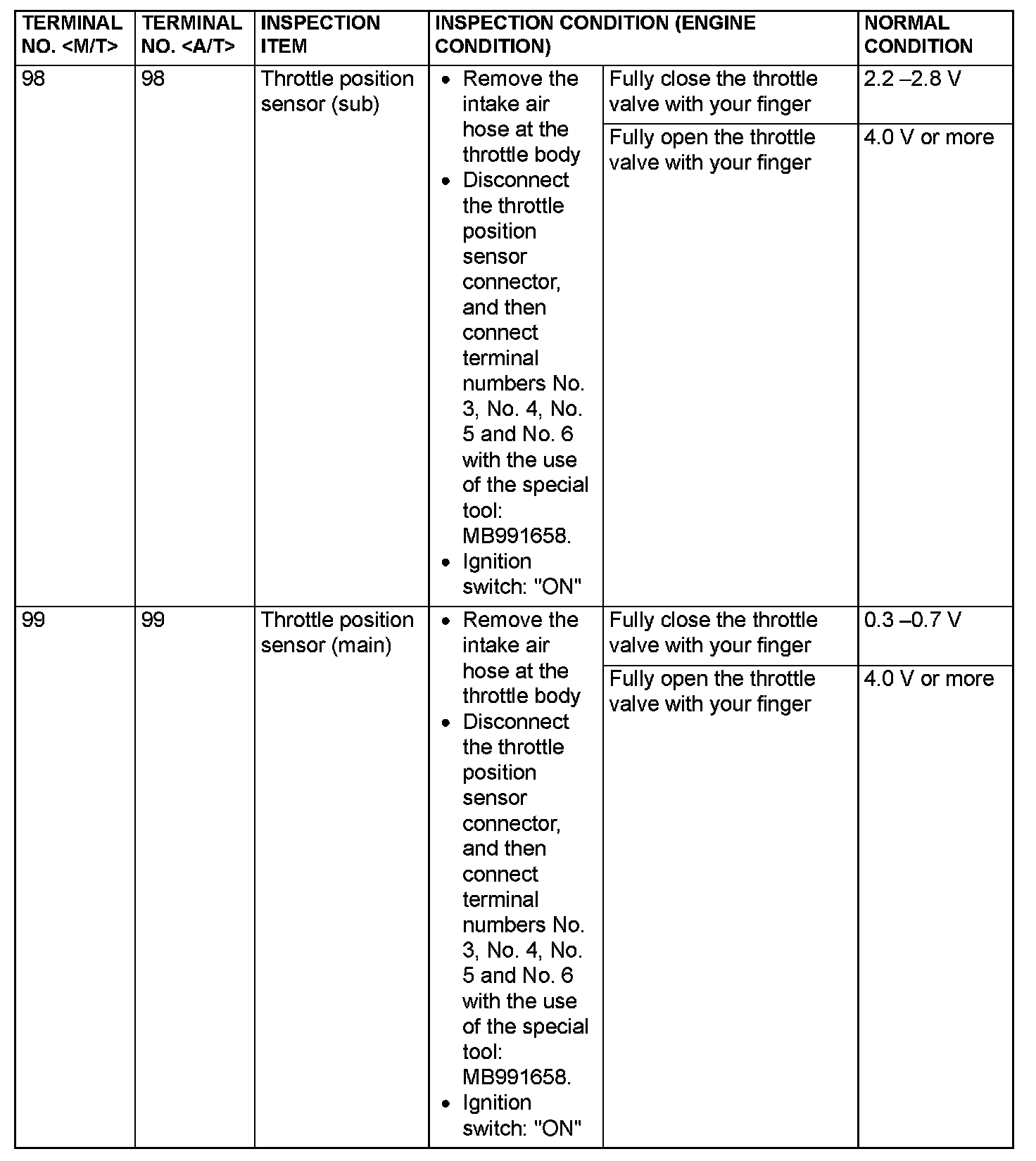

Terminal Voltage Check Chart (Part 5):

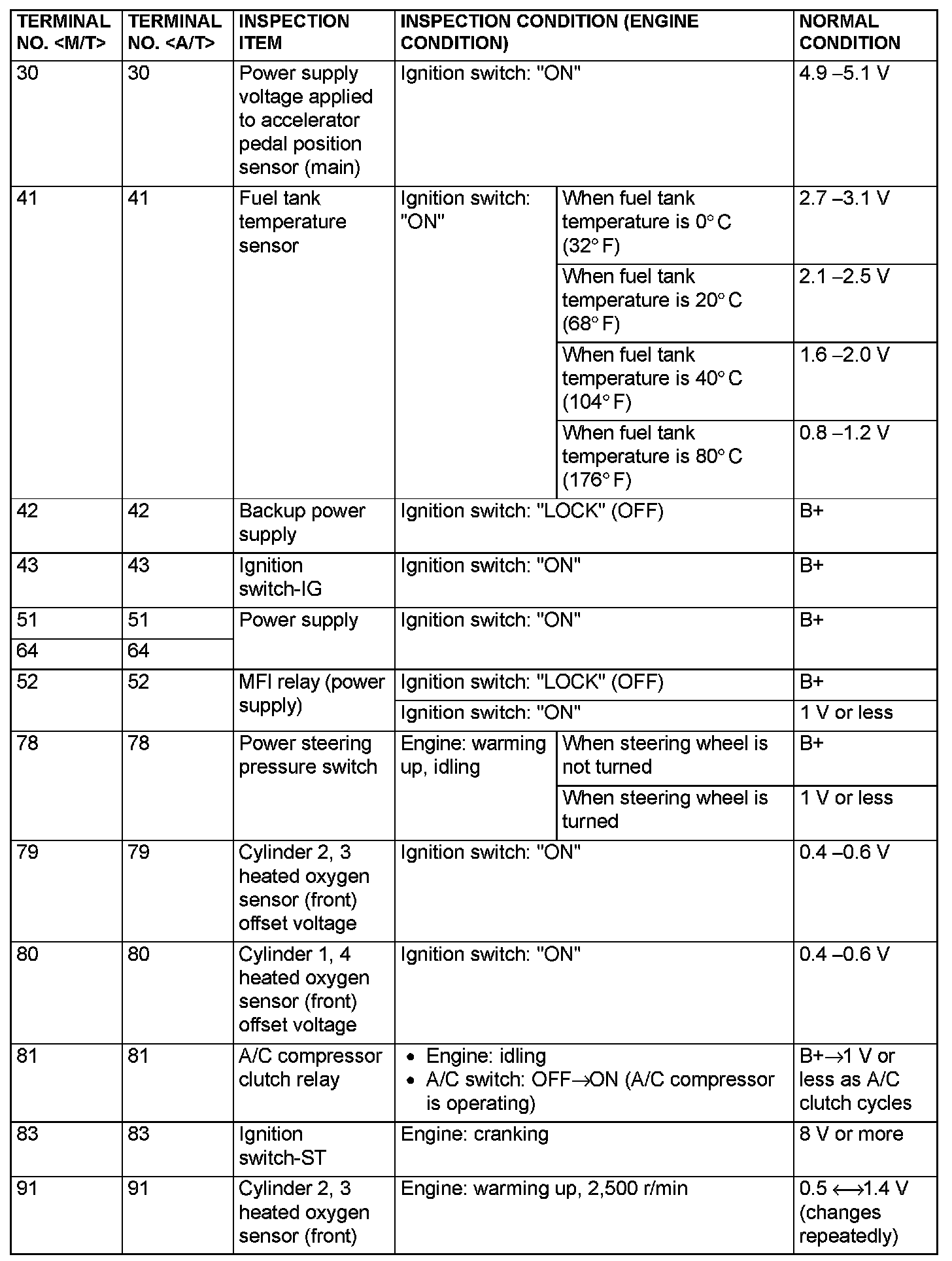

Terminal Voltage Check Chart (Part 6):

Terminal Voltage Check Chart (Part 7):

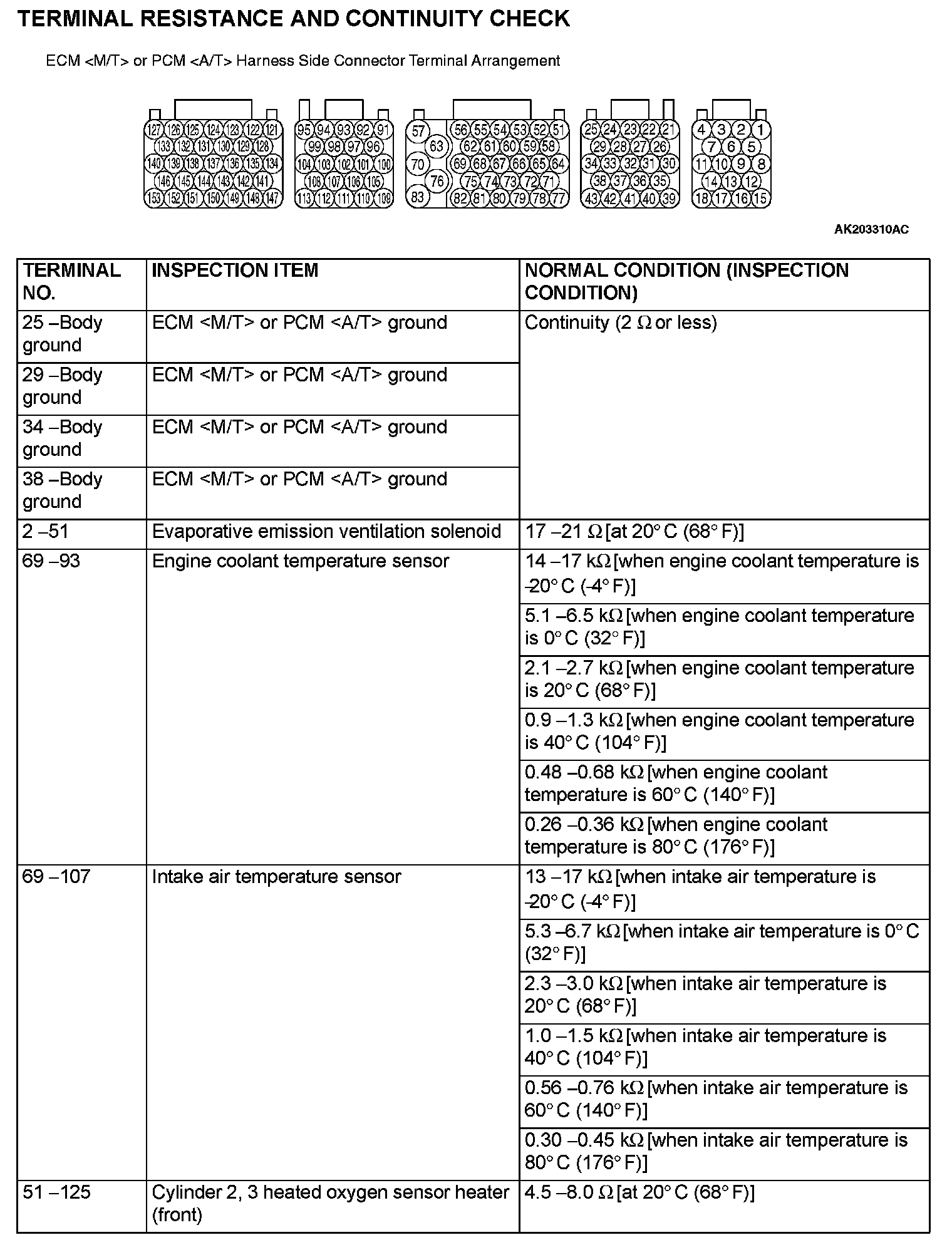

TERMINAL RESISTANCE AND CONTINUITY CHECK

Terminal Resistance And Continuity Check (Part 1):

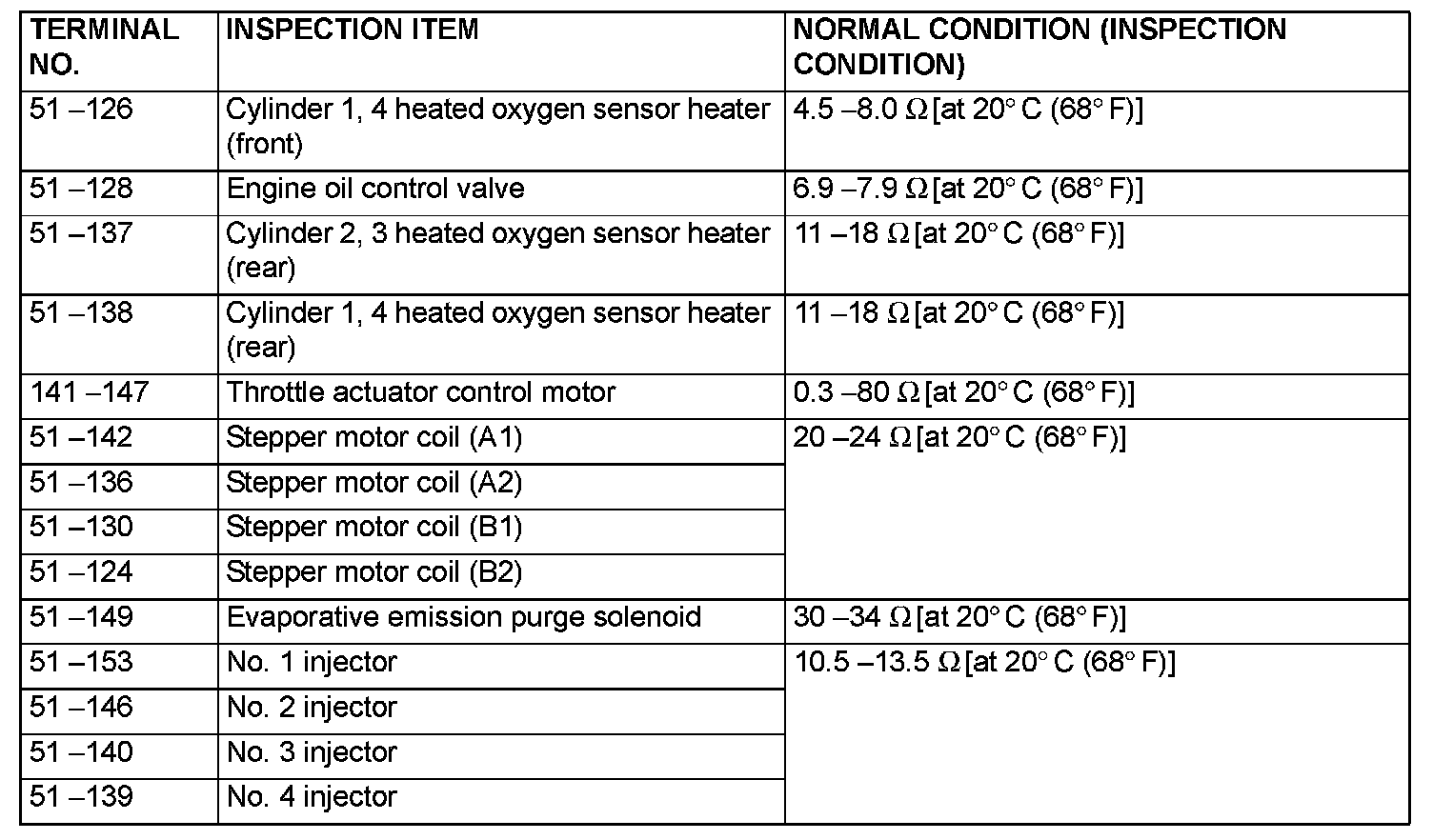

Terminal Resistance And Continuity Check (Part 2):
