Throttle Actuator Control Motor Check

THROTTLE ACTUATOR CONTROL MOTOR CHECK

[Operation Inspection]
1. Disconnect the air intake hose from the throttle body.
2. Set the ignition switch to the "ON" position.
3. Operate the accelerator pedal and confirm that the throttle valve is opening and closing accordingly.

[Checking the Terminal Resistance]




1. Disconnect the throttle position sensor connector.

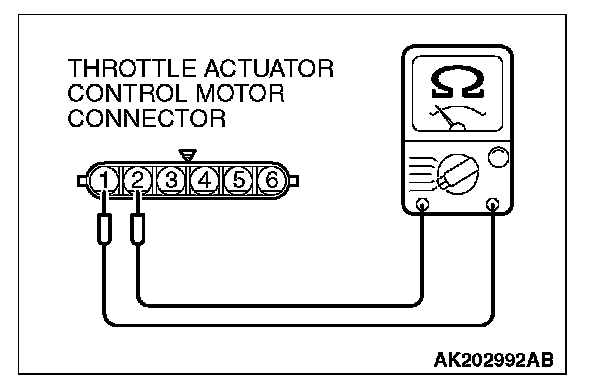

2. Measure the resistance between terminal No. 1 and No. 2.

Standard value: 0.3 - 80 ohms [at 20 °C (68 °F)]

3. If resistance is outside the standard value, replace the throttle body assembly.
