Fuel Pump Relay Continuity Check

FUEL PUMP RELAY CONTINUITY CHECK

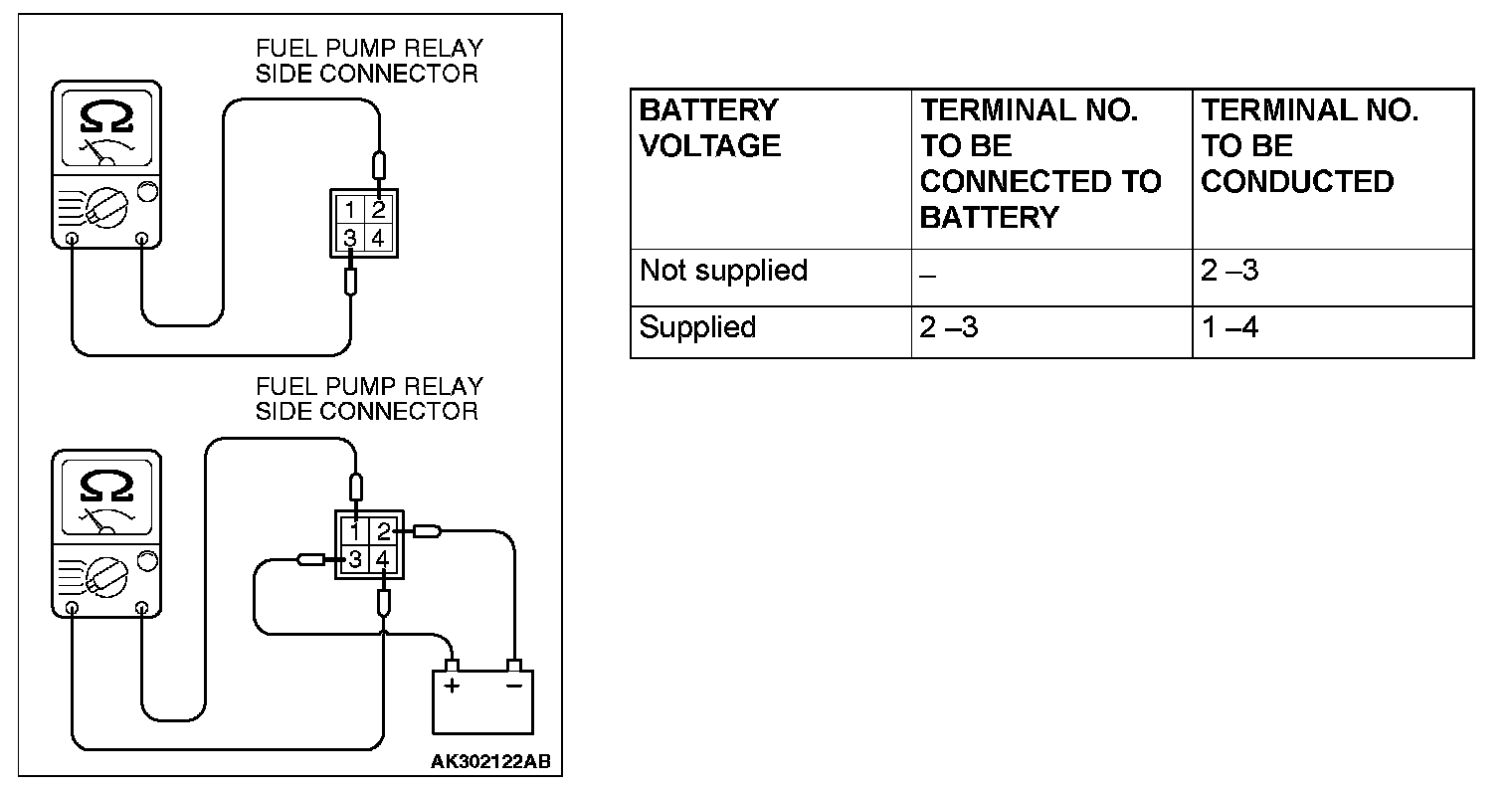

Inspect the fuel pump relay for continuity in accordance with the chart shown below.

Fuel Pump Relay Continuity Check:
