Drive Belt Tension Check

DRIVE BELT TENSION CHECK





CAUTION: Check the drive belt tension after turning the crankshaft clockwise one turn or more.

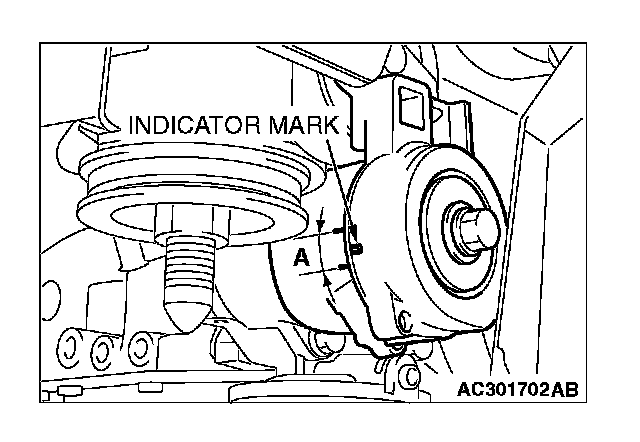

1. Make sure that the indicator mark is within the area marked with A in the illustration.
2. If the mark is out of the area, replace the drive belt.

NOTE: The drive belt tension adjustment is not necessary, as the engine is equipped with an auto-tensioner
