Tail Lamp: Service and Repair

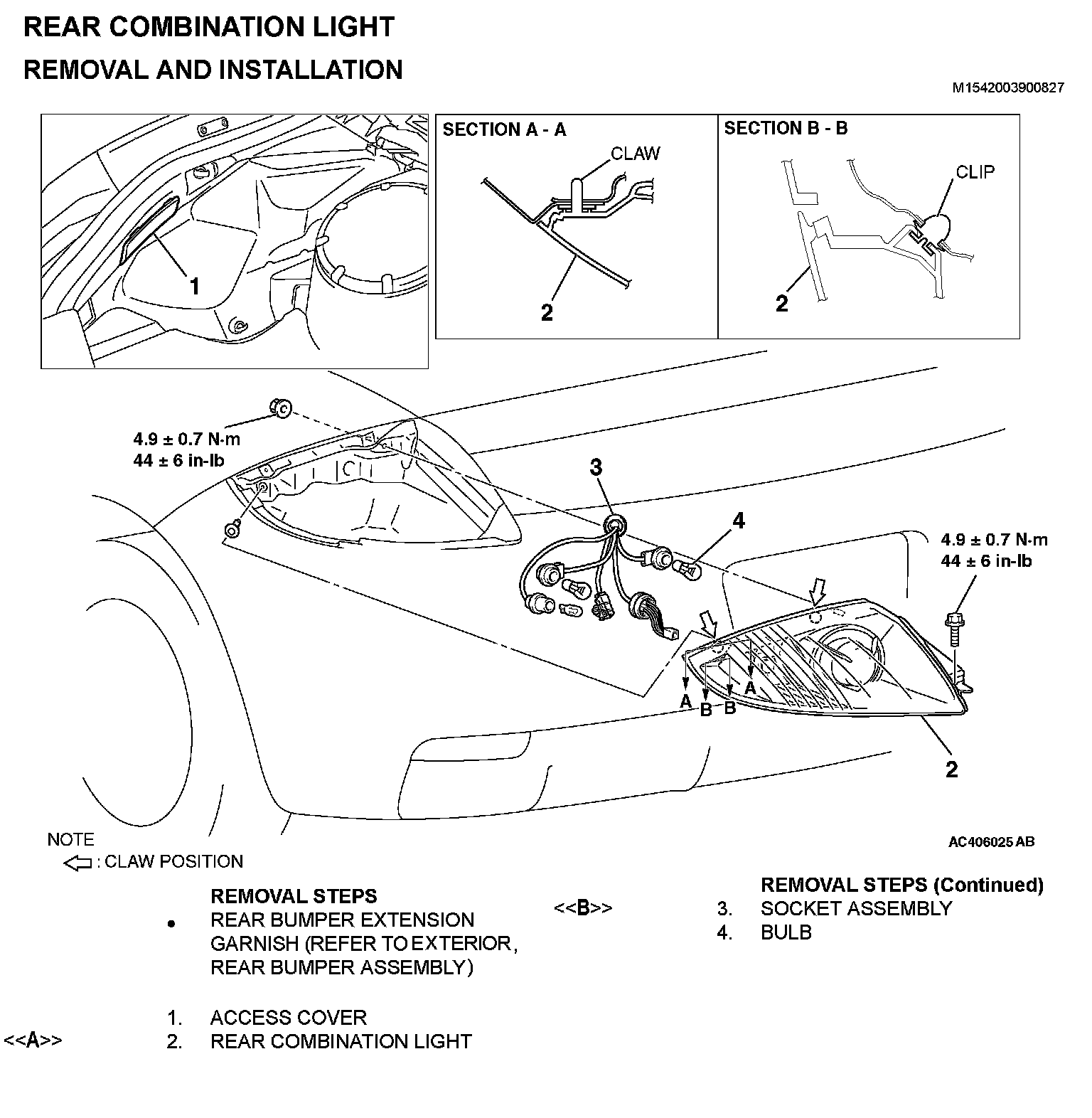

REMOVAL AND INSTALLATION

Removal Steps 1-4:

REMOVAL SERVICE POINTS

[[A]] REAR COMBINATION LIGHT REMOVAL

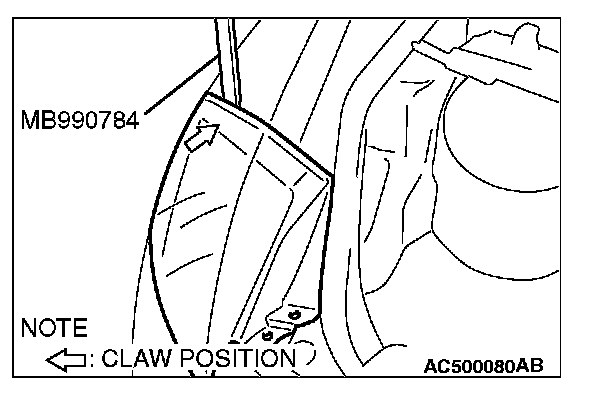

Before removing the rear combination light, disengage the claw shown in the illustration using special tool MB990784.

[[B]] SOCKET ASSEMBLY REMOVAL




Remove the socket assembly connector using a flat-tipped screwdriver as shown.
