Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Service and Repair

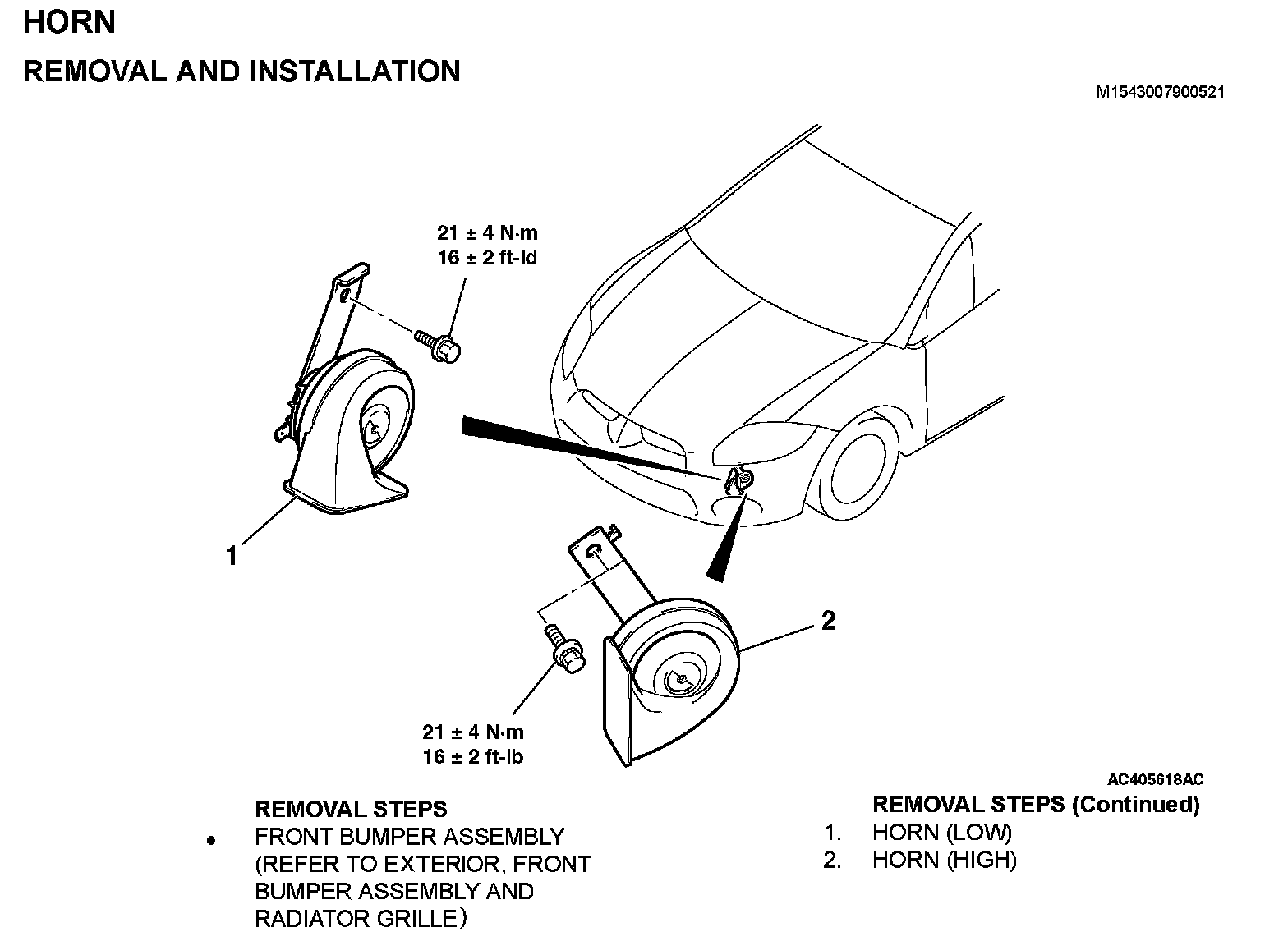

Horn: Service and Repair

Removal Steps 1-2:
