Headlamp: Service and Repair

HEADLIGHT AND FRONT COMBINATION LIGHT

REMOVAL AND INSTALLATION


Post-installation Operation:






Removal Steps:

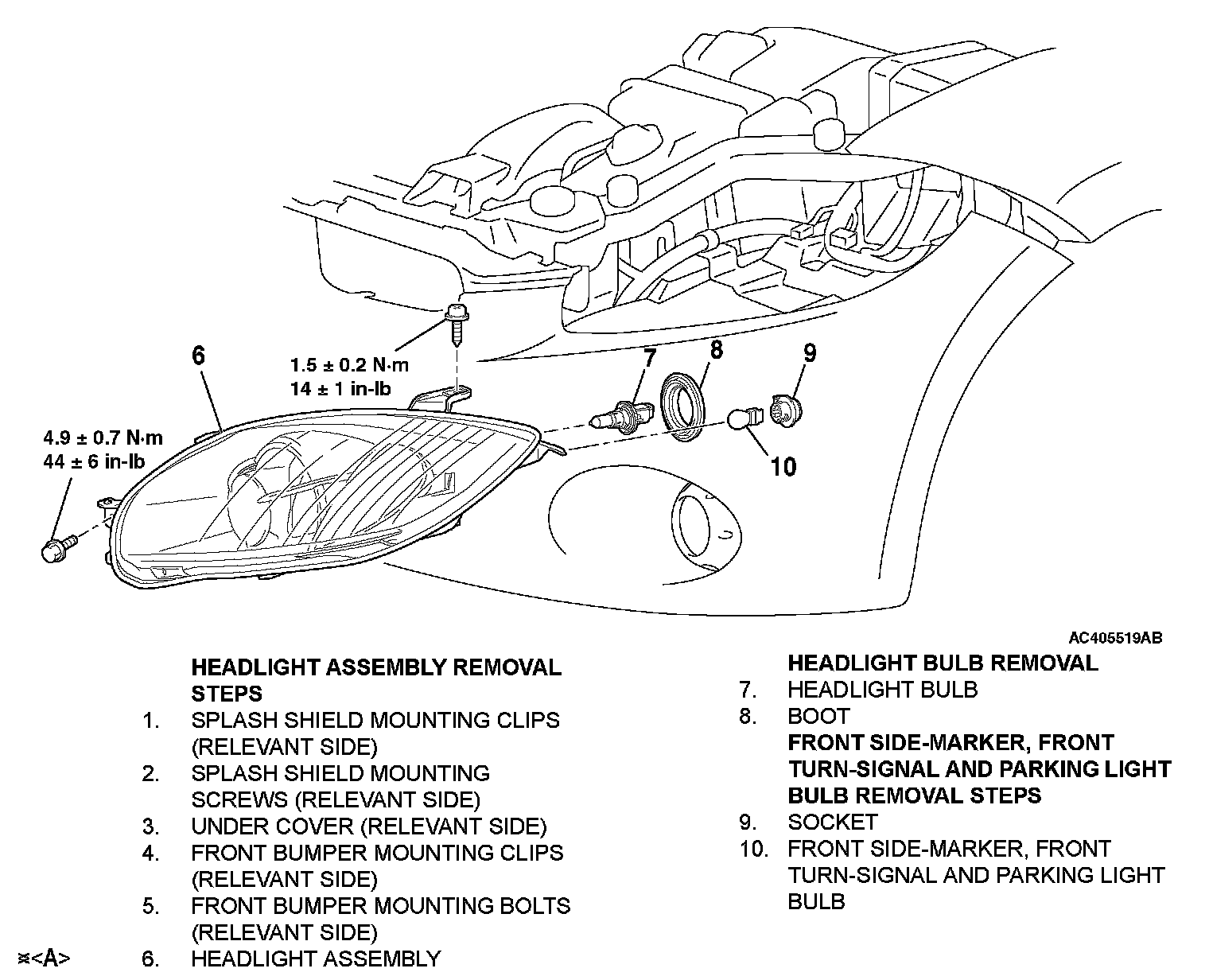

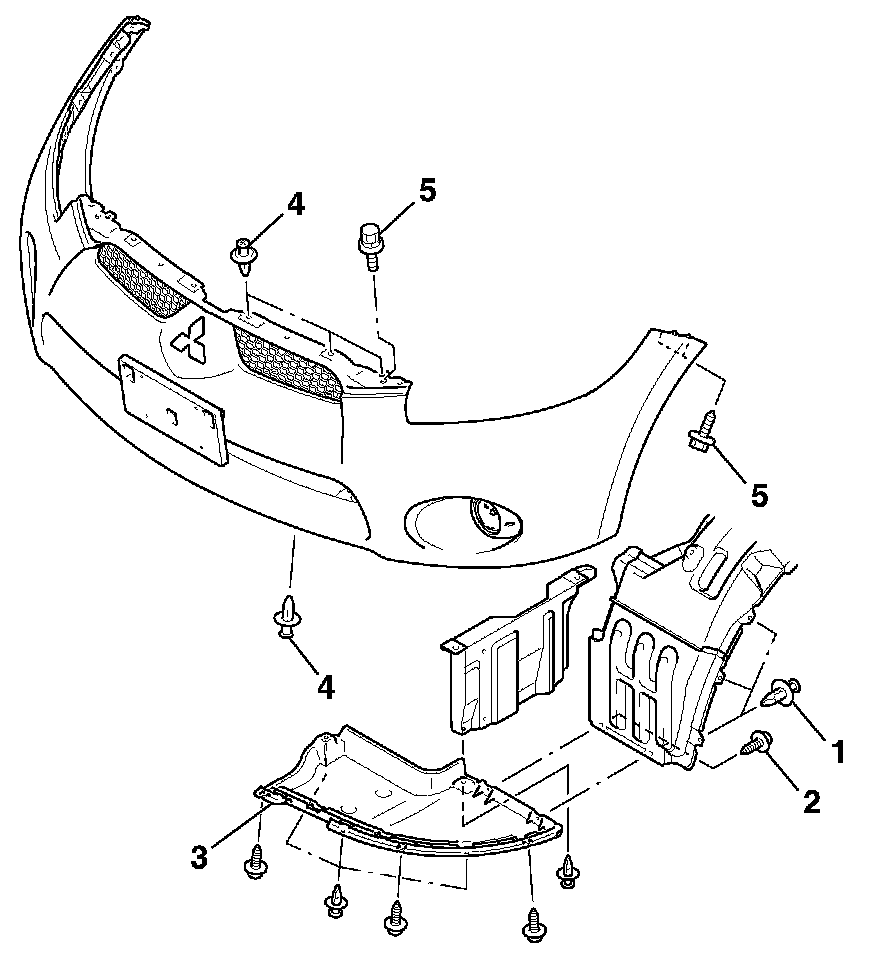

Removal Steps 1-10:






REMOVAL SERVICE POINT

[[A]] HEADLIGHT ASSEMBLY REMOVAL
Remove the headlight assembly with the applicable side of the front bumper slid downward slightly.
