Headlight Adjustment

HEADLIGHT ADJUSTMENT

NOTE: When adjusting headlight, disconnect the other headlight harness.

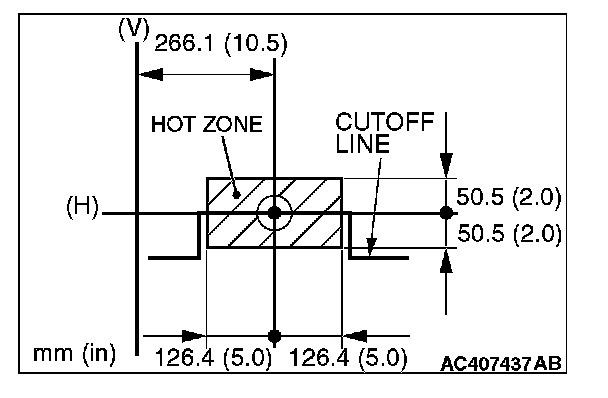

1. The low beam headlight will project on the screen upper edge of the beam (cut-off).

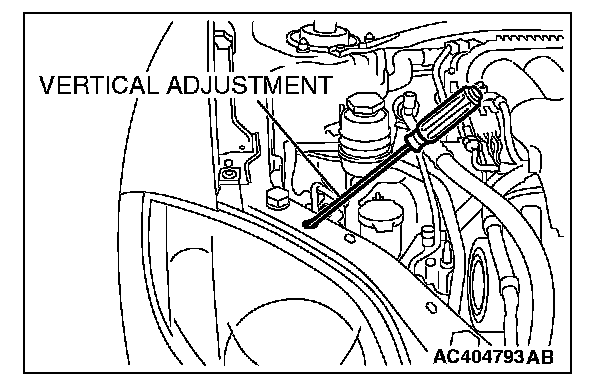

2. Turn the adjusting screws to achieve the specified low-beam cut-off location on the aiming screen.

Standard value:
(Vertical direction): Horizontal line (H) ±50.5 mm (±2.0 inches) (0.38 °angle)
(Horizontal direction): ±126.4 mm (±5.0 inches) (±0.95 °angle) from the axis, which is 266.1 mm (10.5 inches) (2 °angle) rightward from the vertical line (V)

CAUTION: Do not cover a headlight for more than three minutes to prevent the plastic headlight lens deformation.

NOTE: High-beam pattern should be correct when the low-beams are adjusted properly.
