Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Service and Repair

Fog/Driving Lamp: Service and Repair

Post-installation Operation:

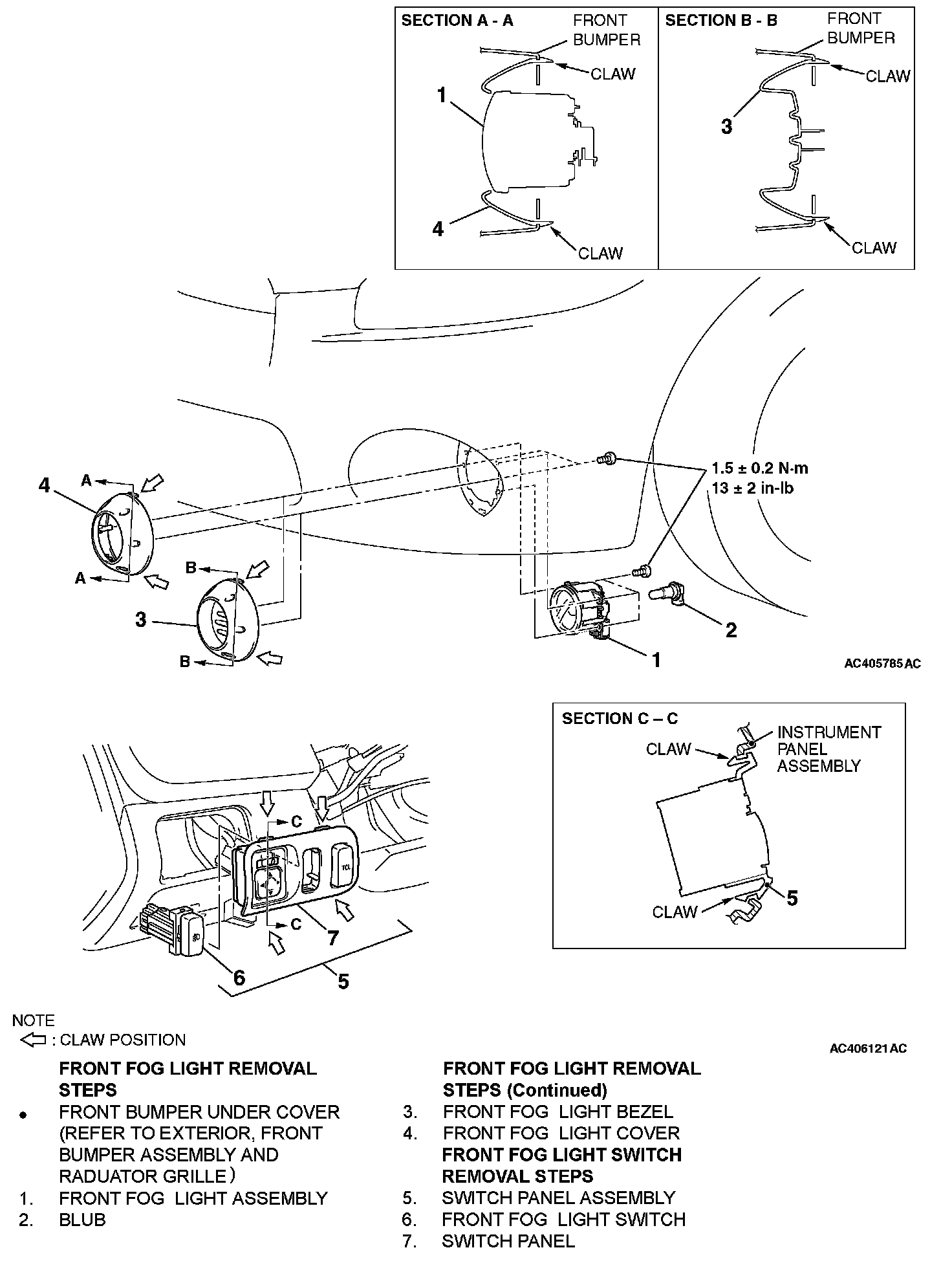

Removal Steps 1-7:
