Fog/Driving Lamp Bulb: Service and Repair

BULB REPLACEMENT

1. Remove the under cover mounting clips, then remove the under cover.

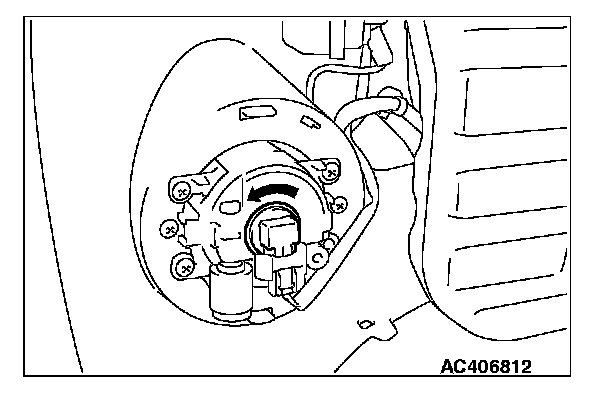

2. Remove the socket and bulb assembly by twisting it counterclockwise.
3. Remove the front fog light bulb from the connector.
4. Replace the bulb, and then install the socket and bulb assembly by twisting it clockwise.
