Drive Belts, Mounts, Brackets and Accessories: Testing and Inspection

DRIVE BELTS (FOR GENERATOR, POWER STEERING PUMP AND AIR CONDITIONING) (CHECK)

DRIVE BELT TENSION CHECK [2.4L ENGINE]

CAUTION: Check the drive belt tension after turning the crankshaft clockwise one turn or more.

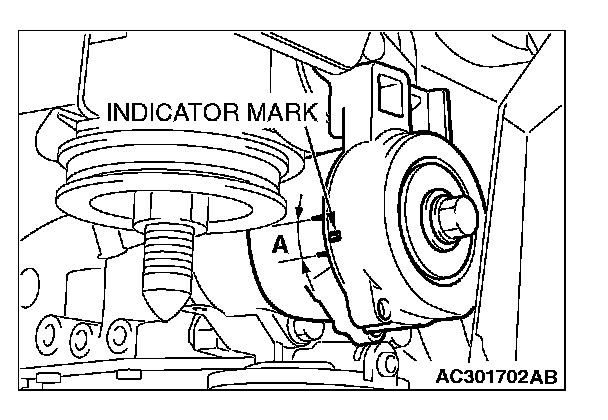

1. Make sure that the indicator mark is within the area marked with A in the illustration.
2. If the mark is out of the area, replace the drive belt. Refer to Crankshaft Pulley.

NOTE: The drive belt tension adjustment is not necessary, as an a auto-tensioner is provided.
