Engine Mount: Description and Operation

GENERAL DESCRIPTION

<2.4L>:

[2.4L ENGINE]

<3.8L>:

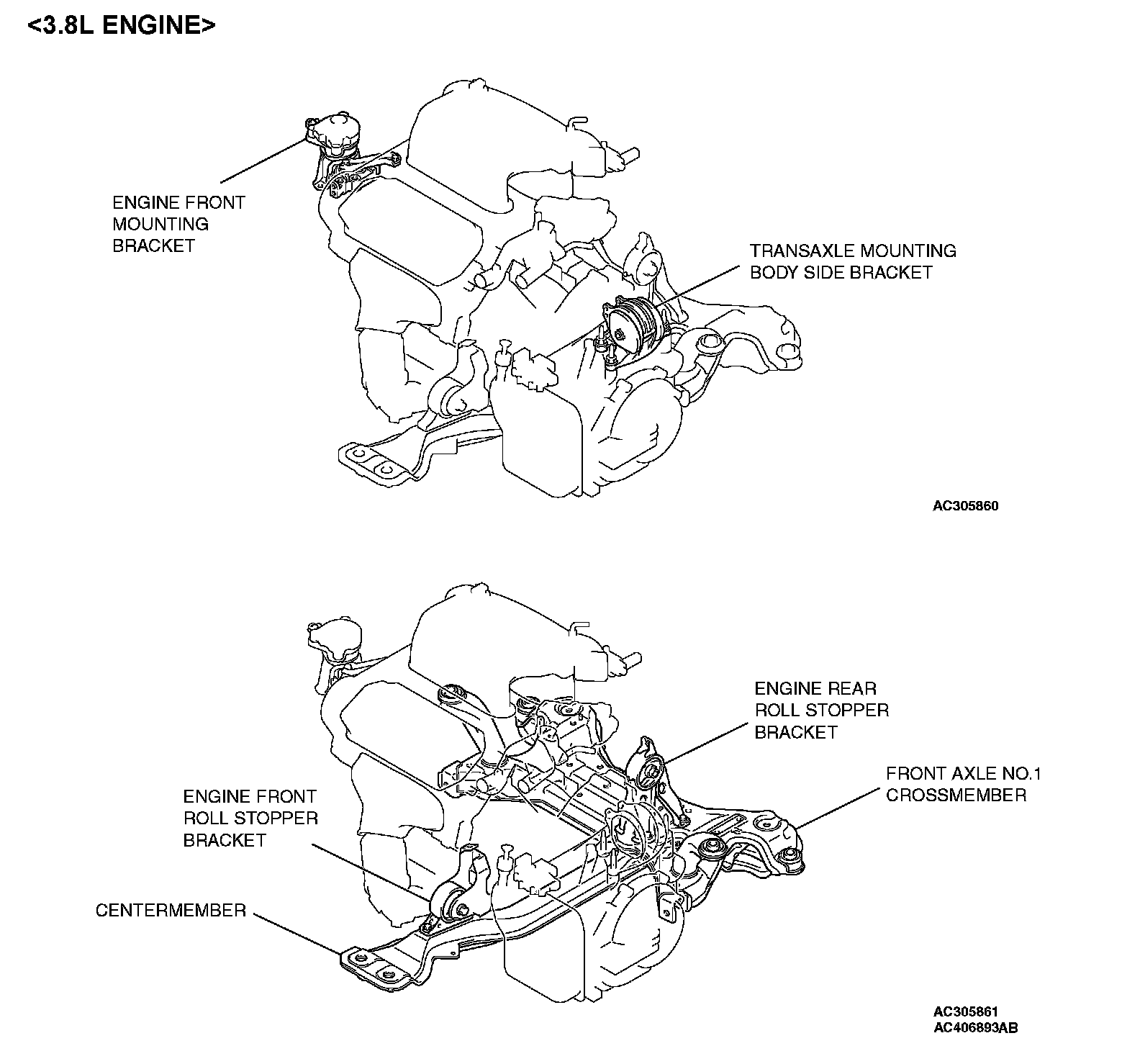

[3.8L ENGINE]

^ The engine front mounting bracket is a dome-shaped fluid-filled mount for improved responsiveness during acceleration and more stable vehicle performance against road disturbances.
^ The liquid-filled transaxle mounting body side bracket improves riding comfort by its refined insulator.
^ A roll stopper bracket in the upper area limits engine rolling. Furthermore, large diameter insulator reduces idle vibration.
