Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Connectors >> D Connectors - Floor and Roof >> D-01 to D-47

D-01 to D-47

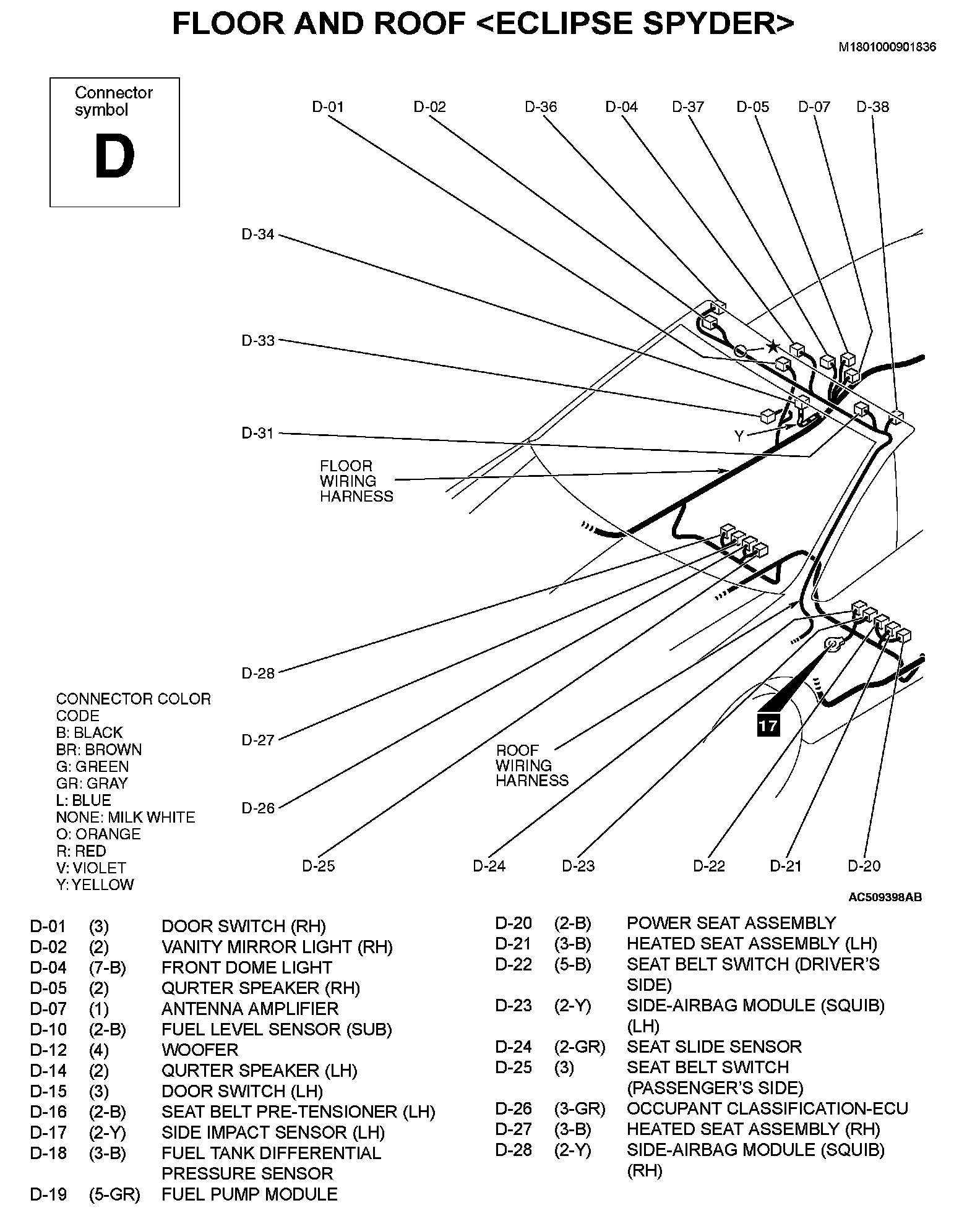

D-01 To D-47 Part 1:

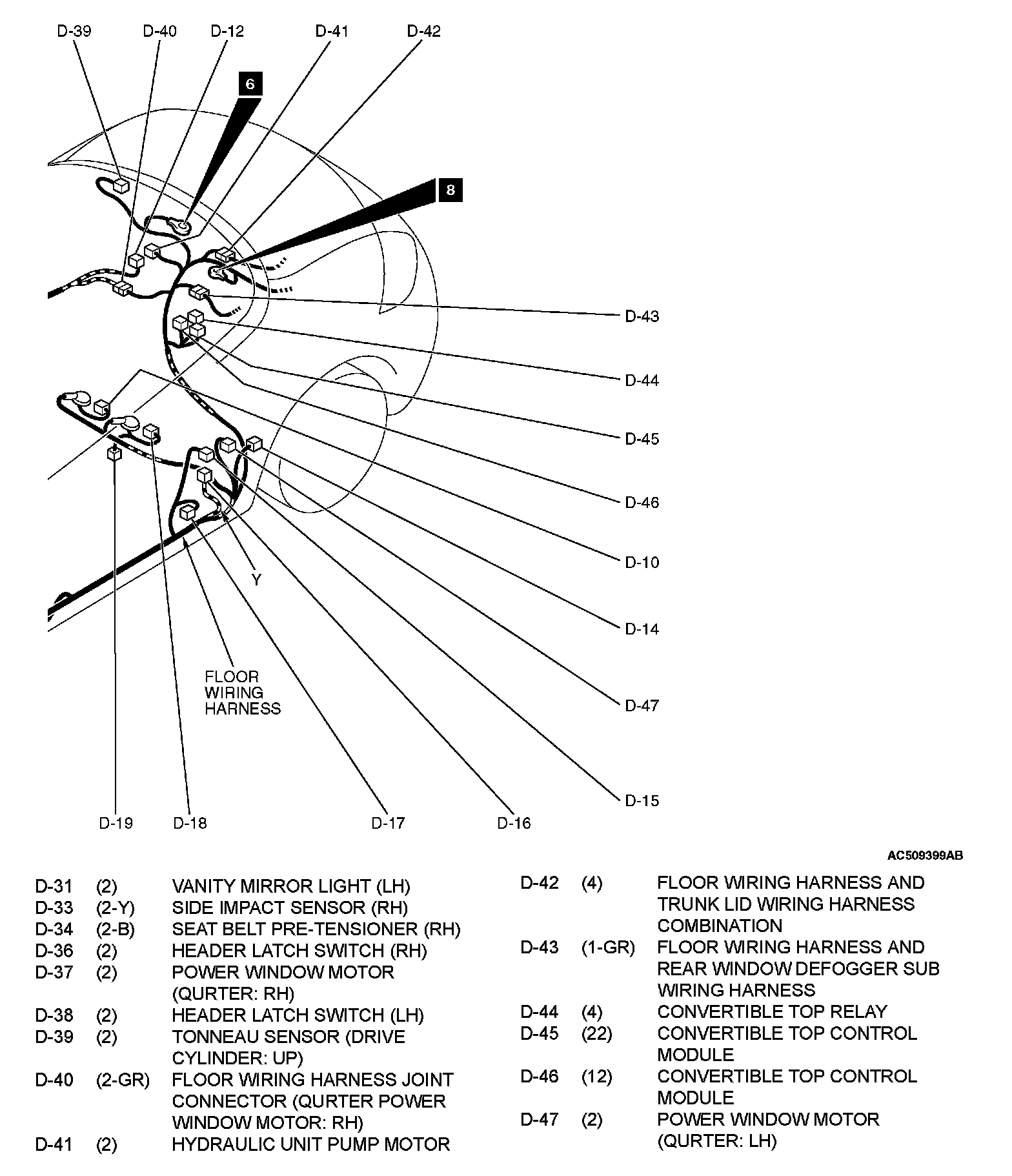

D-01 To D-47 Part 2:
