Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Connectors >> C Connectors - Dash Panel >> C-01 to C-32

C-01 to C-32

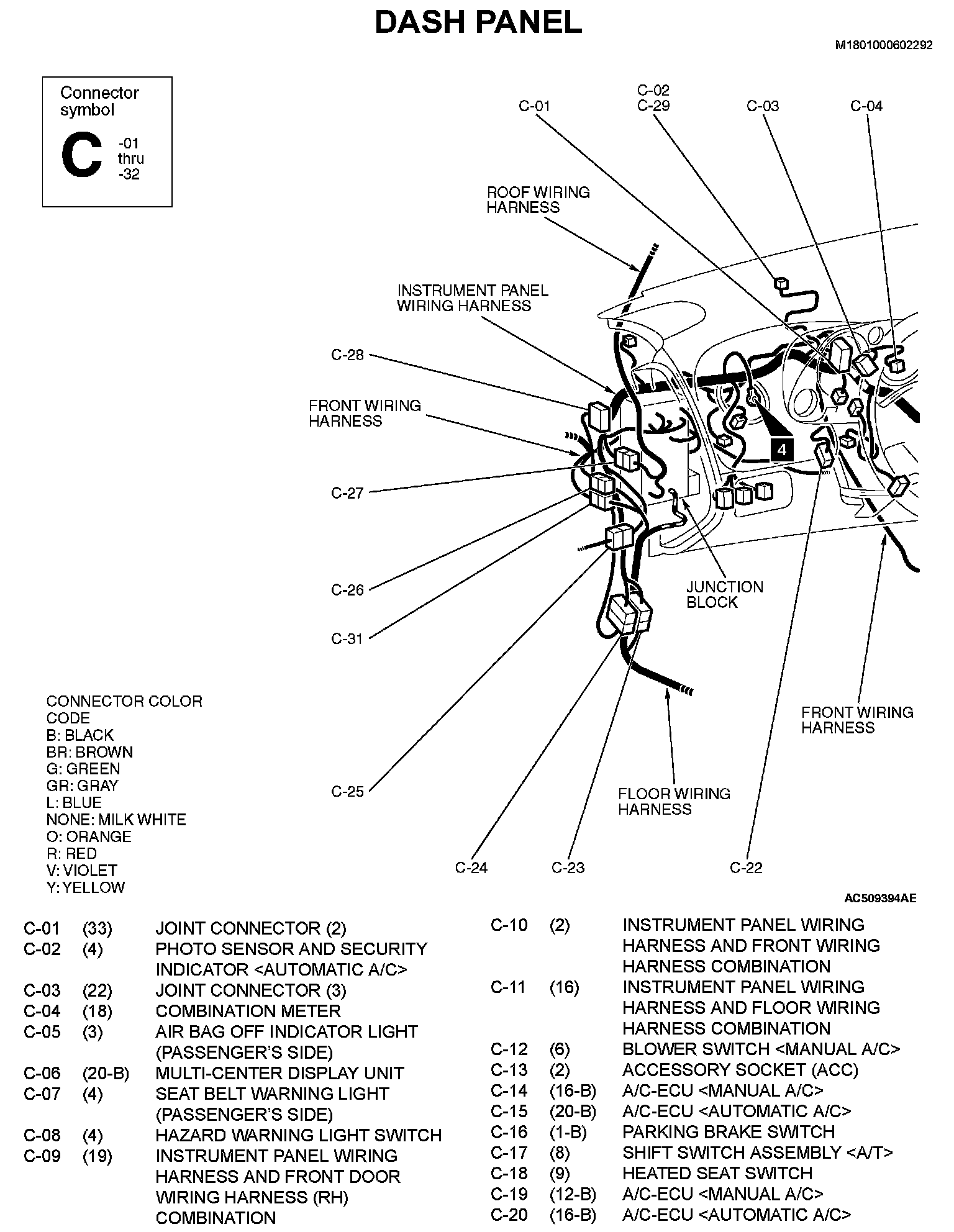

C-01 To C-32 (Part 1):

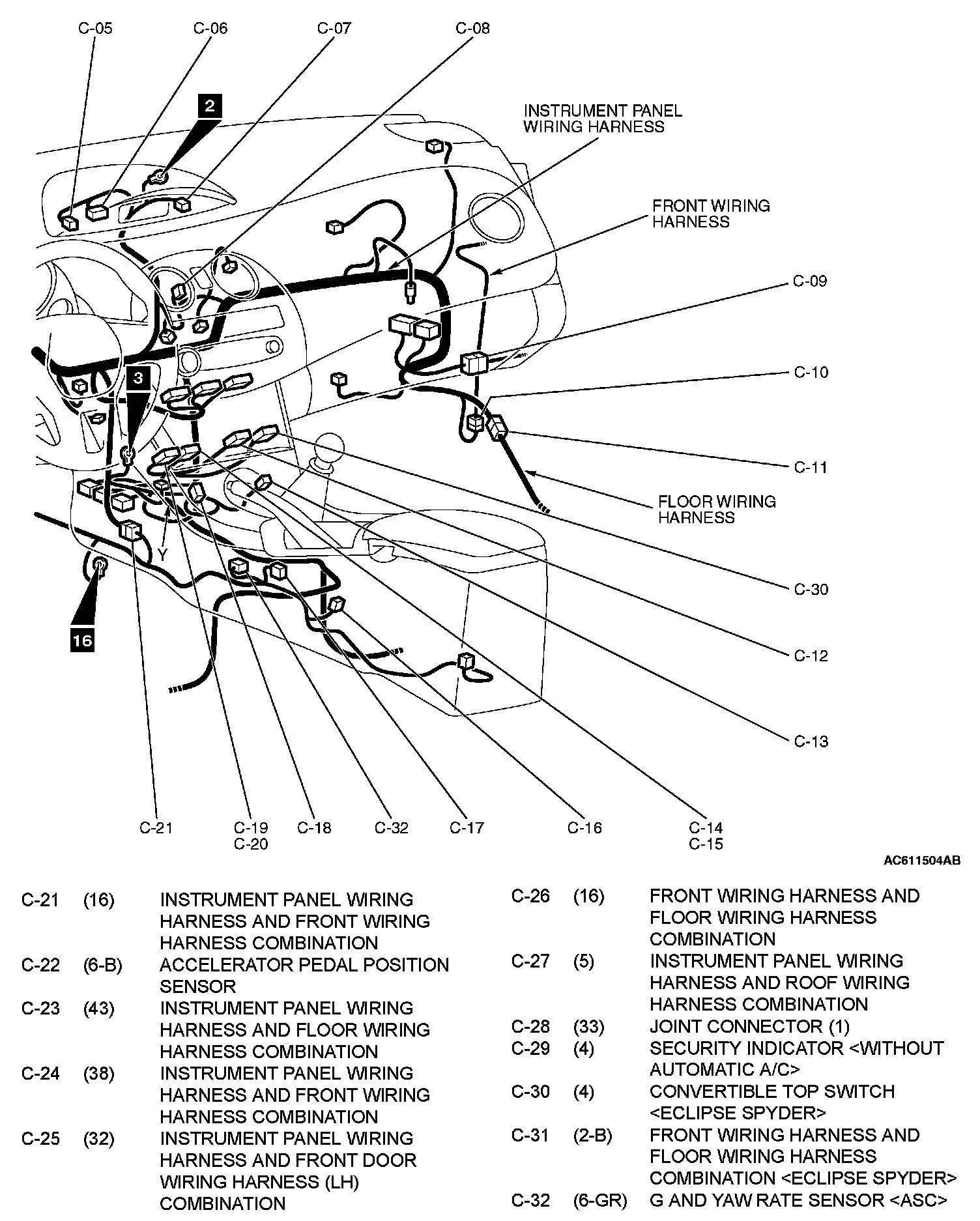

C-01 To C-32 (Part 2):
