Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Connectors >> B Connectors - Engine and Transaxle >> B-101 to B-127

B-101 to B-127

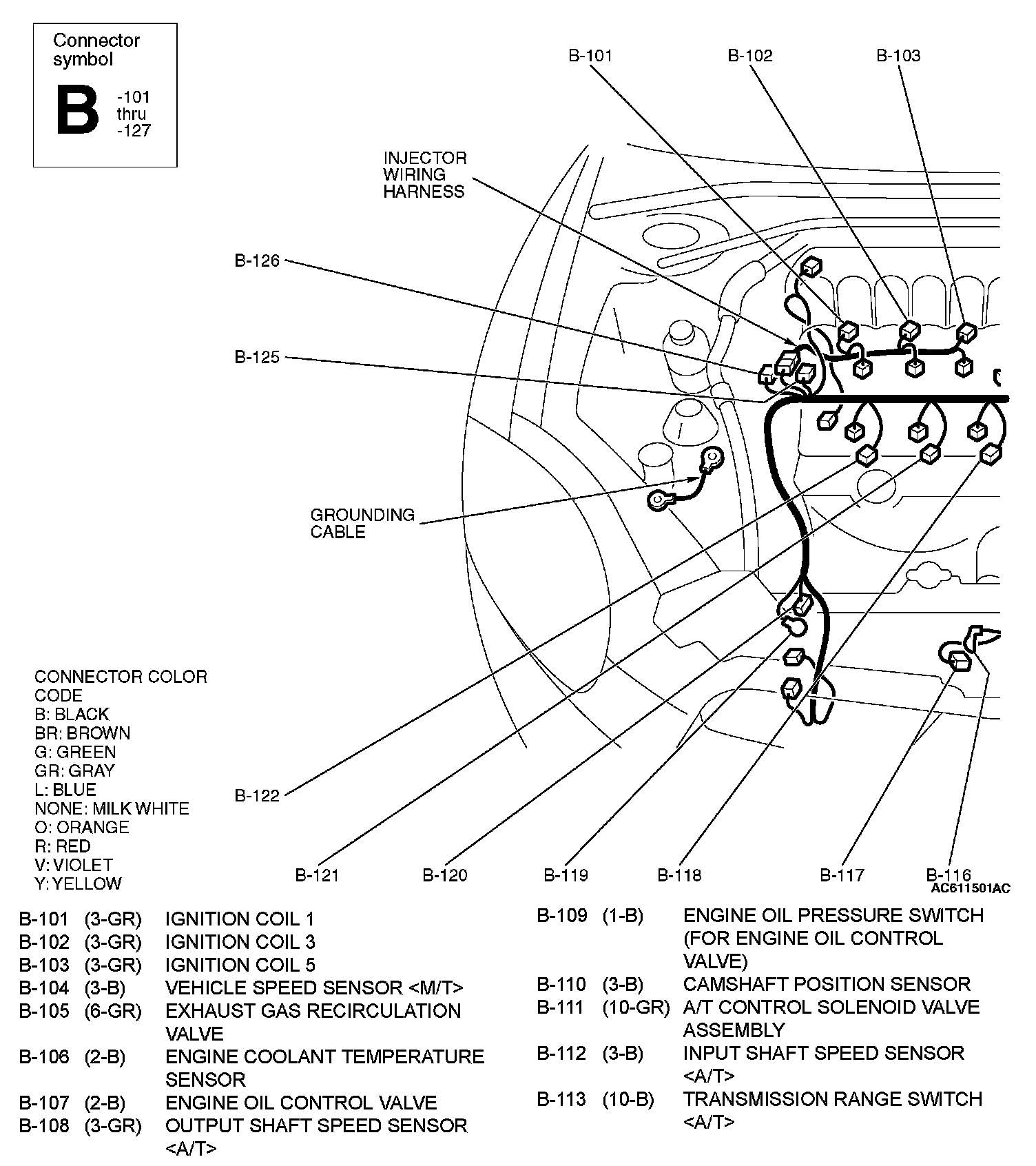

B-101 To B-127 Part 1:

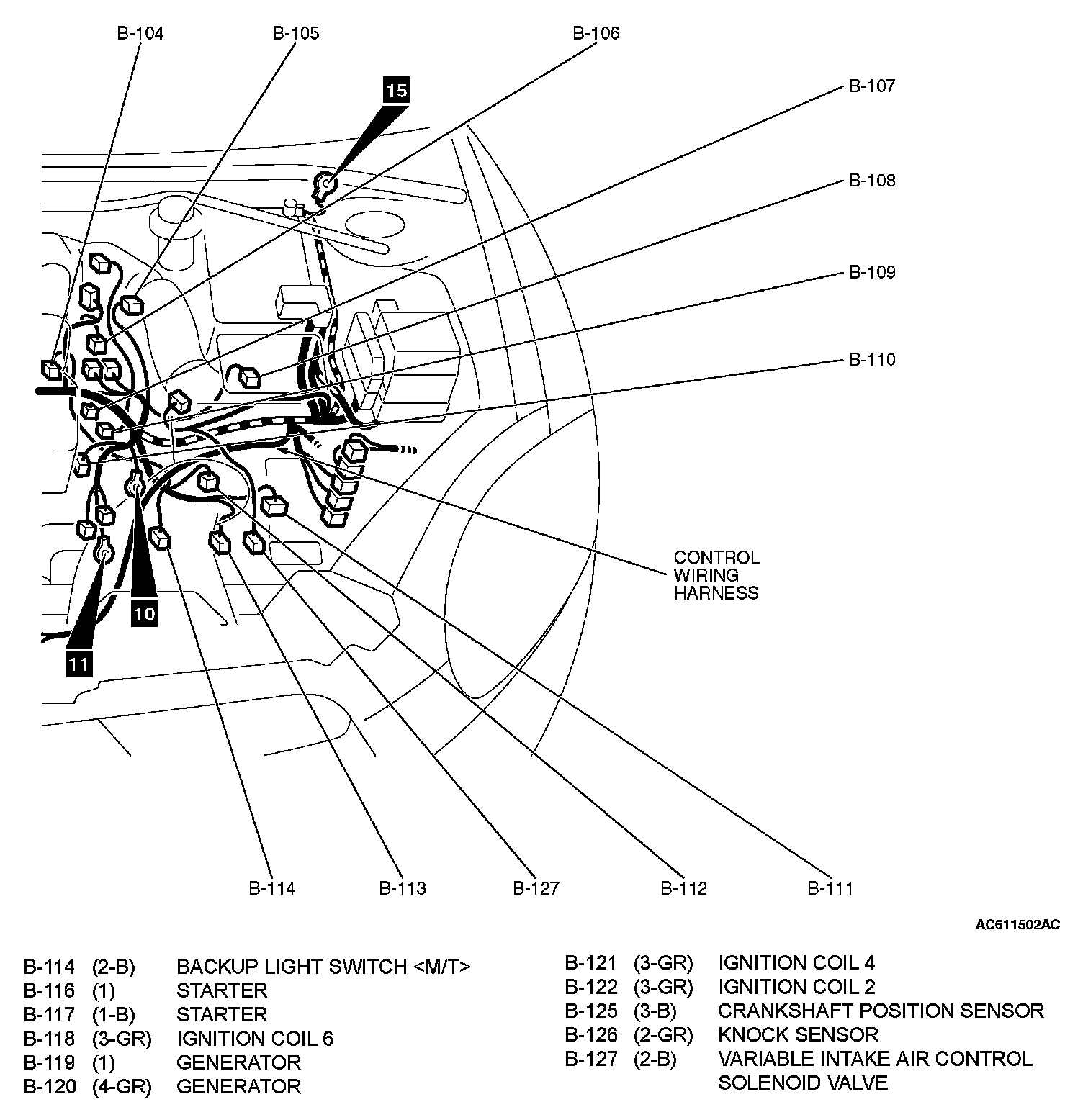

B-101 To B-127 Part 2:

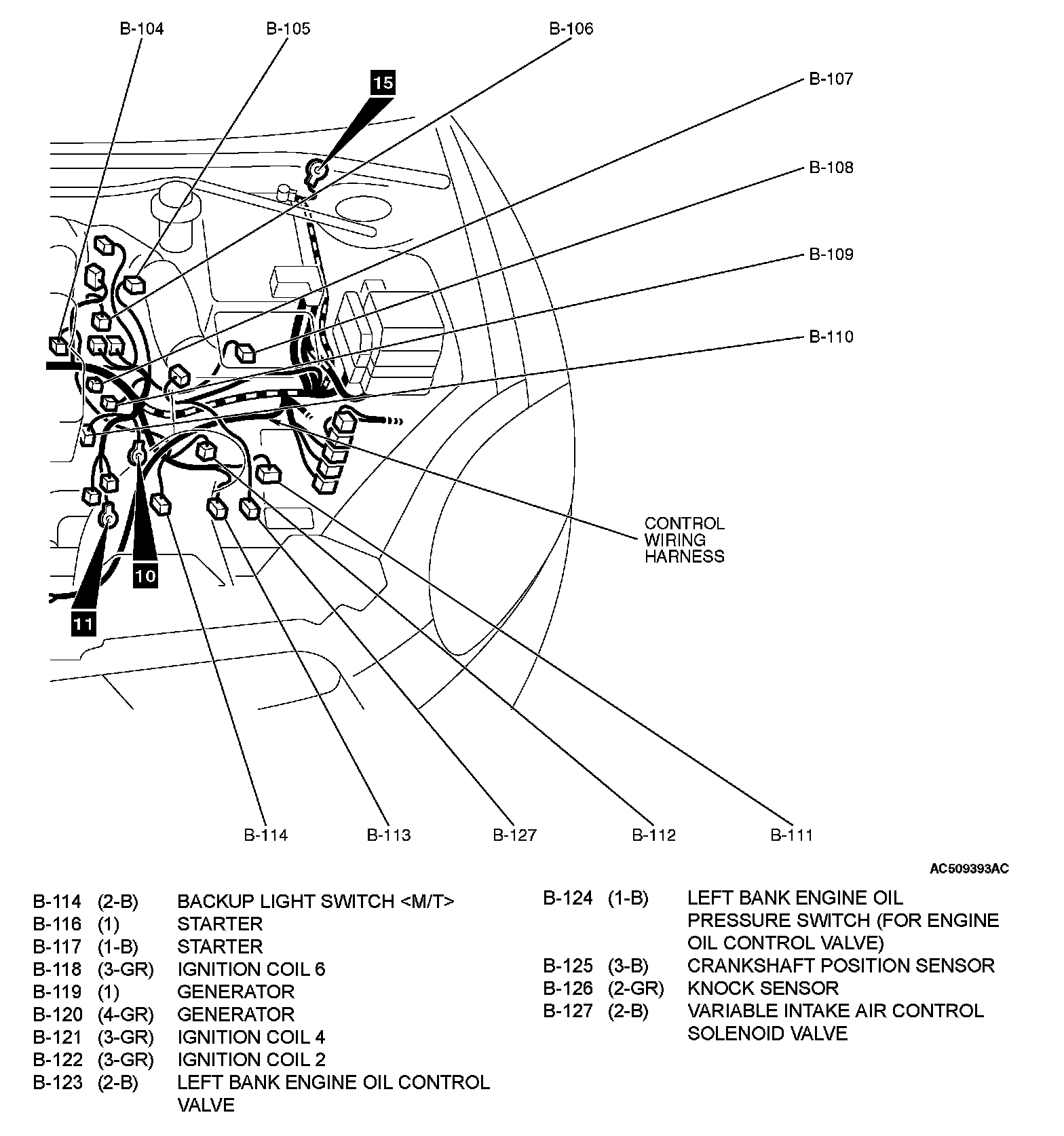

B-101 To B-127 (Part 1):

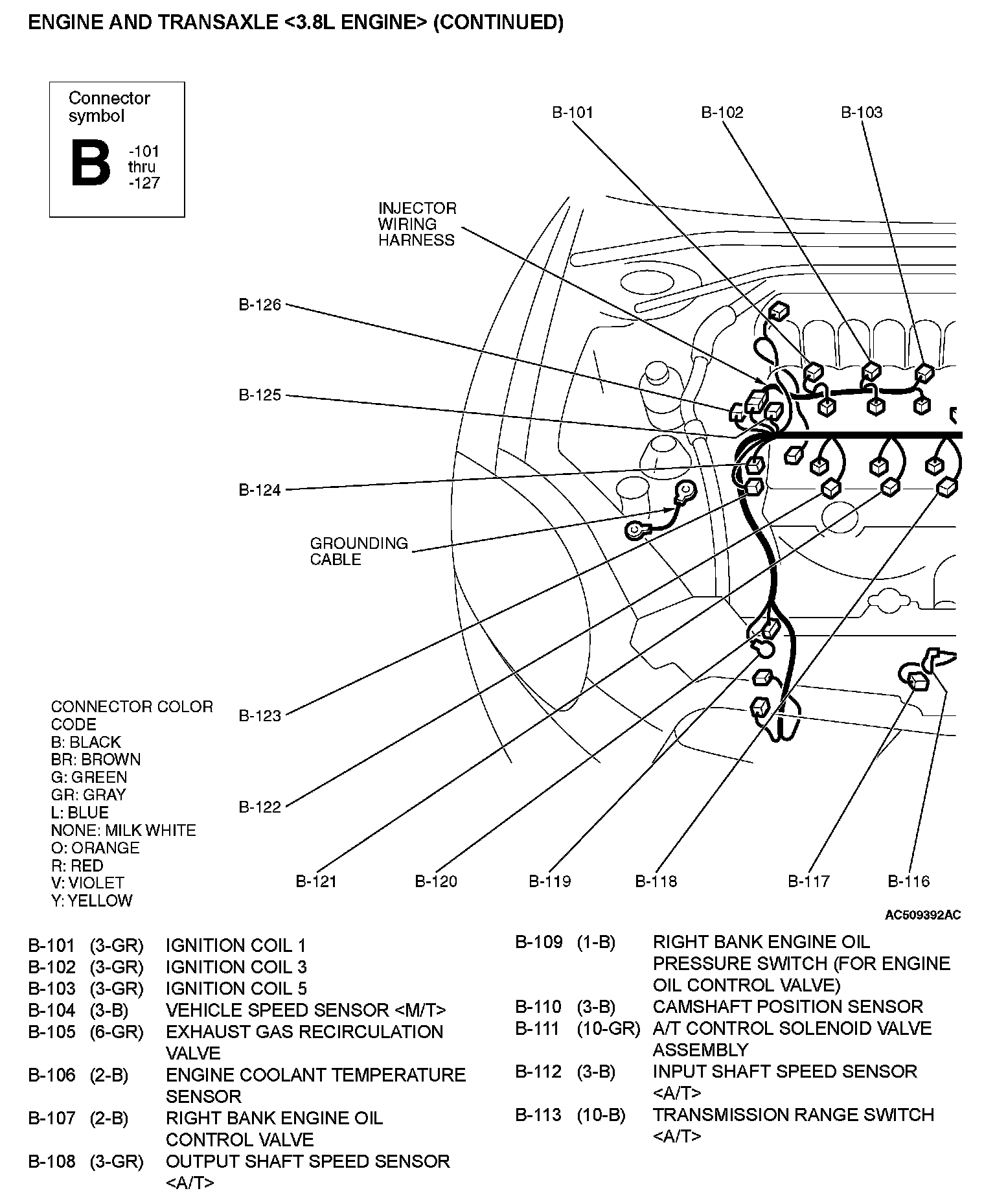

B-101 To B-127 (Part 2):
