B-101 to B-126

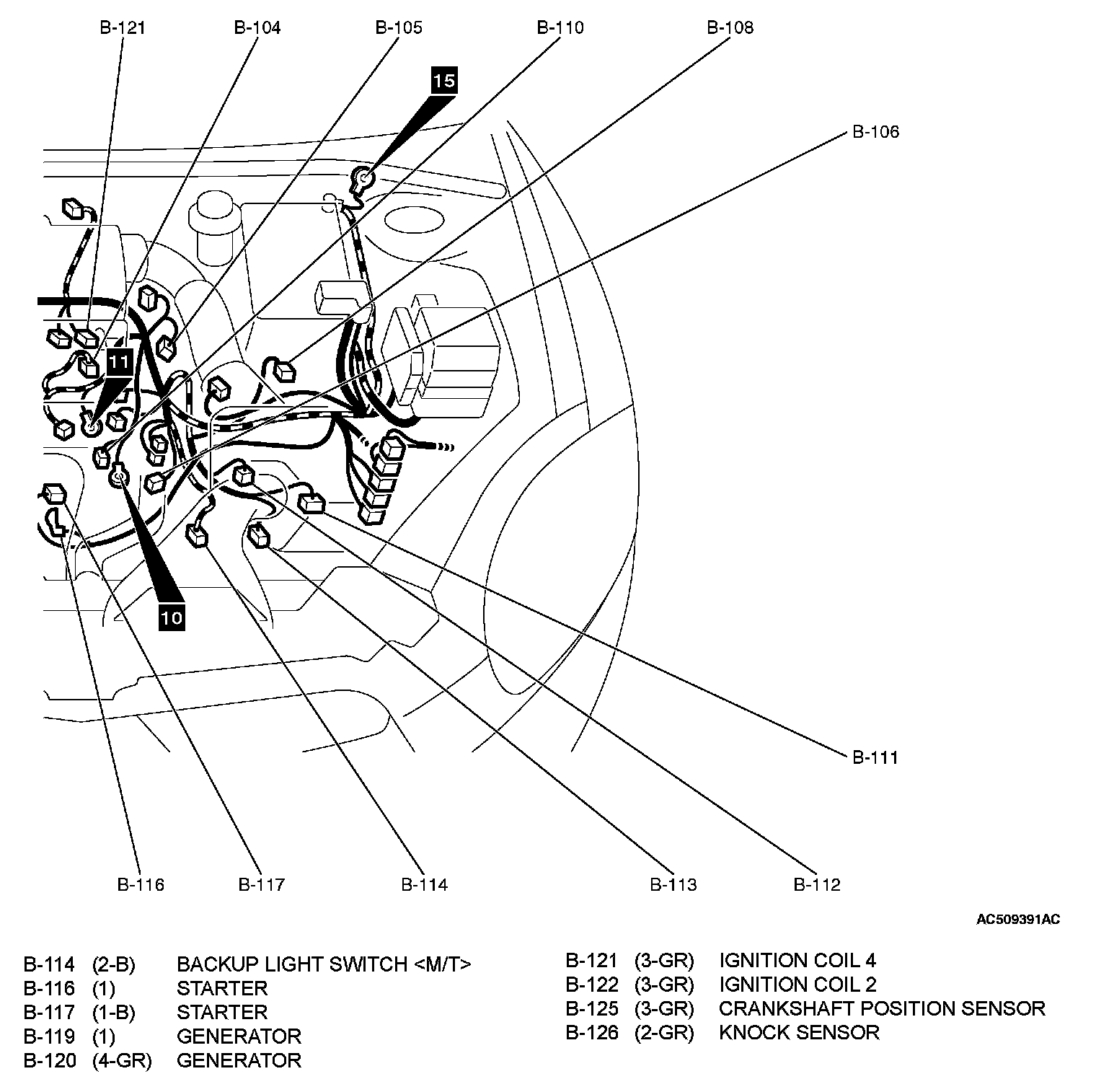

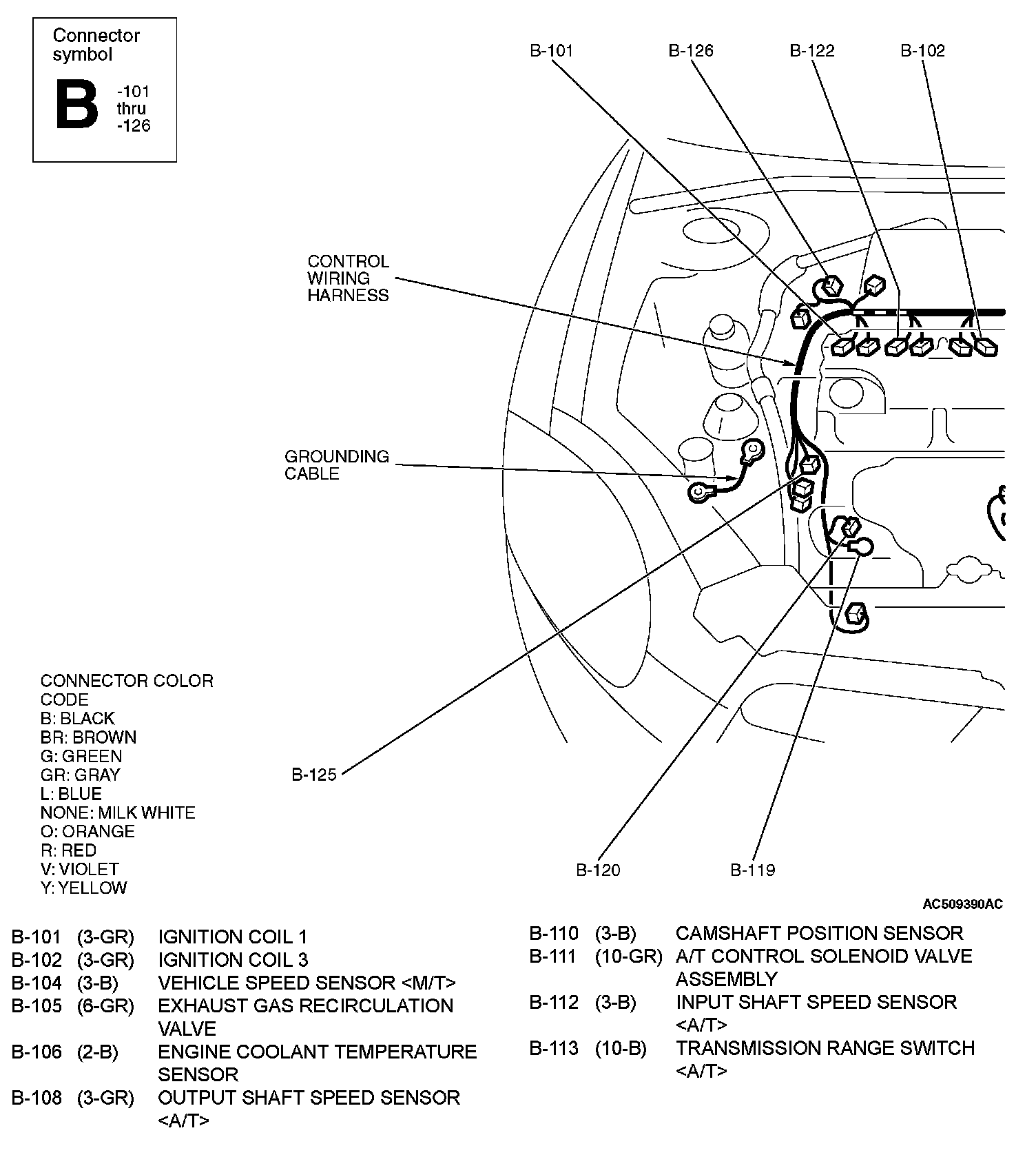

B-101 To B-126 Part 1:

B-101 To B-126 Part 2:

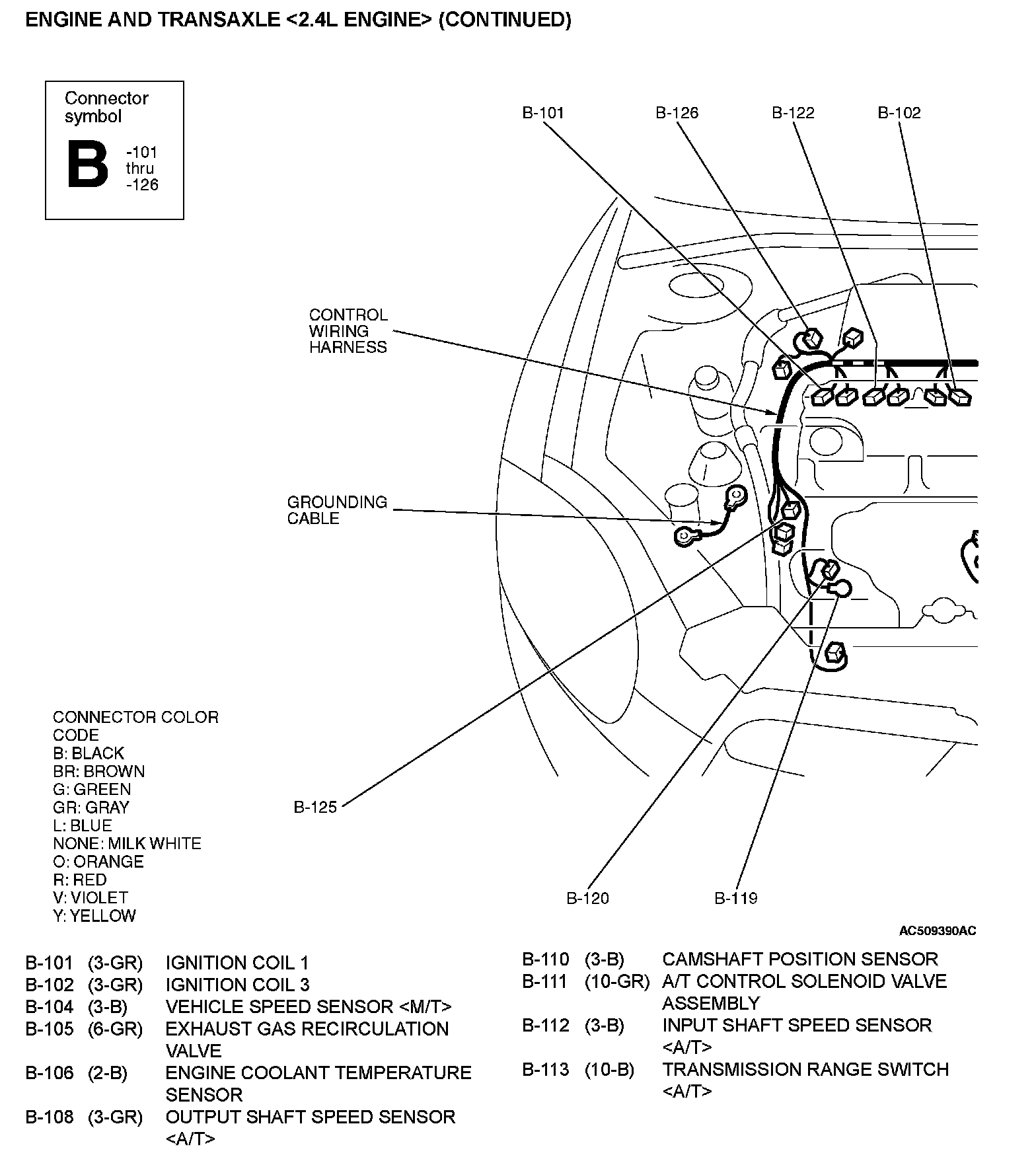

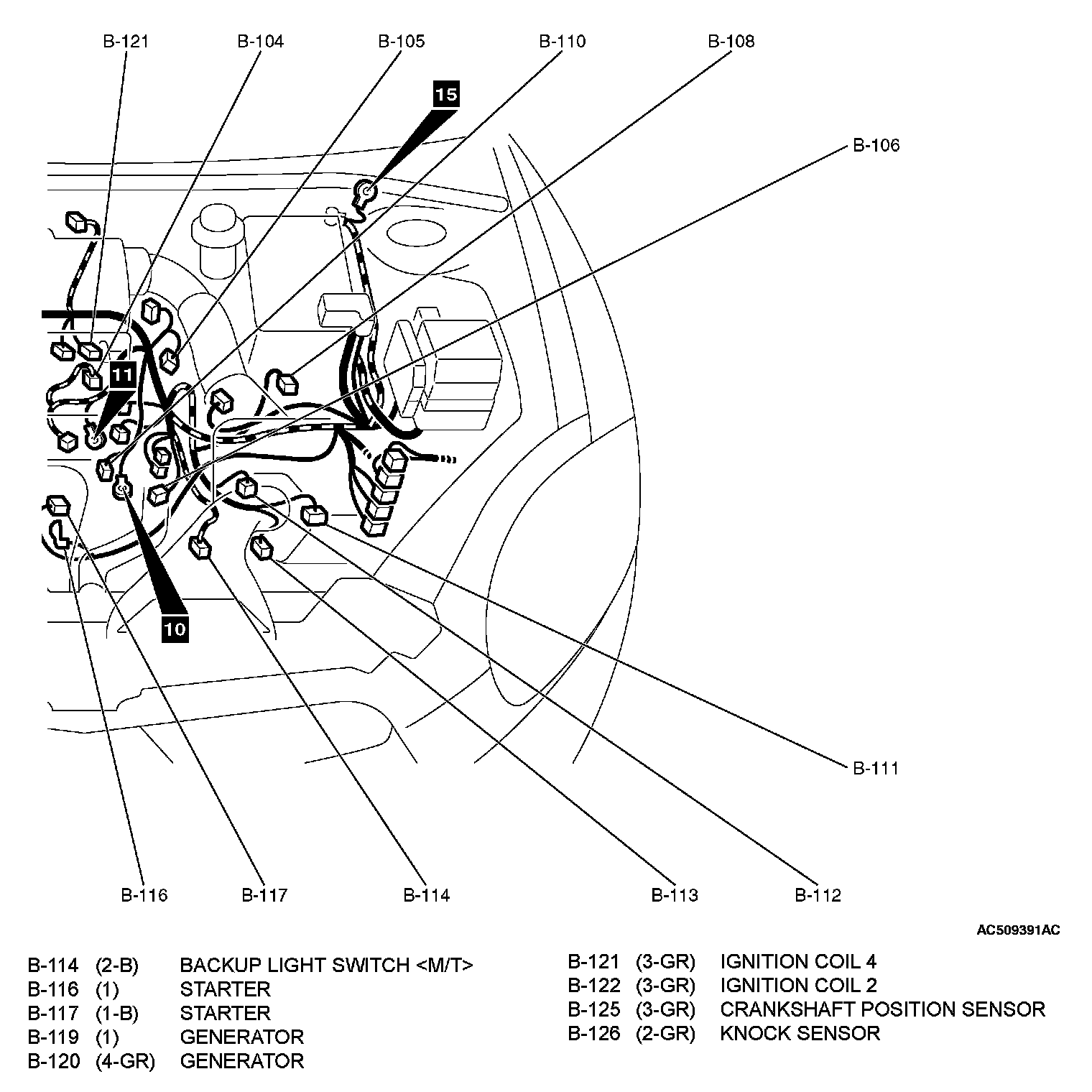

B-101 To B-126 (Part 1):

B-101 To B-126 (Part 2):
