Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Connectors >> B Connectors - Engine and Transaxle >> B-01 to B-37

B-01 to B-37

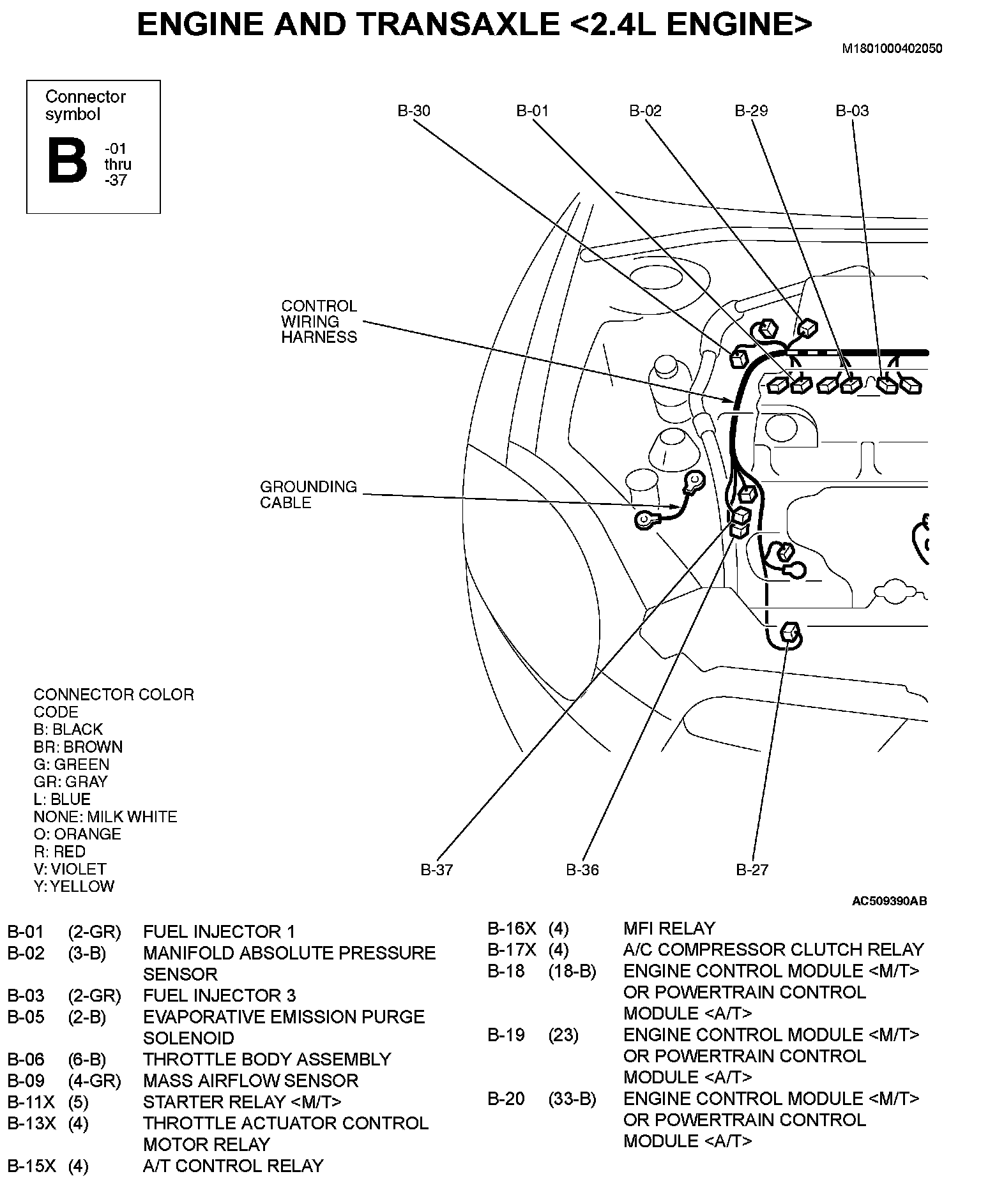

B-01 To B-37 Part 1:

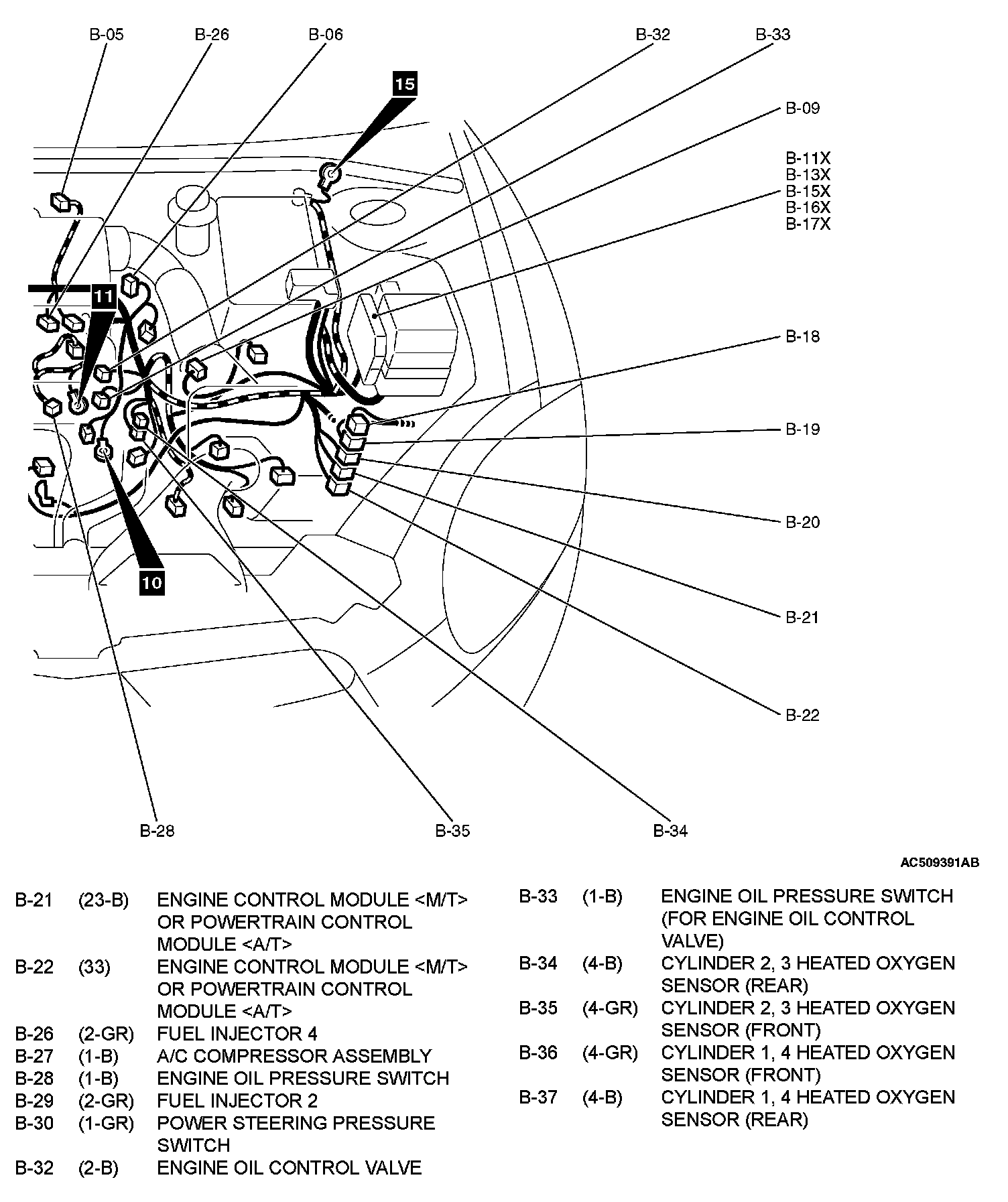

B-01 To B-37 Part 2:



B-01 To B-37 (Part 1):



B-01 To B-37 (Part 2):
