A Connectors - Engine Compartment
>>
A-01 to A-38
A-01 to A-38
A-01 To A-38 (Part 1):

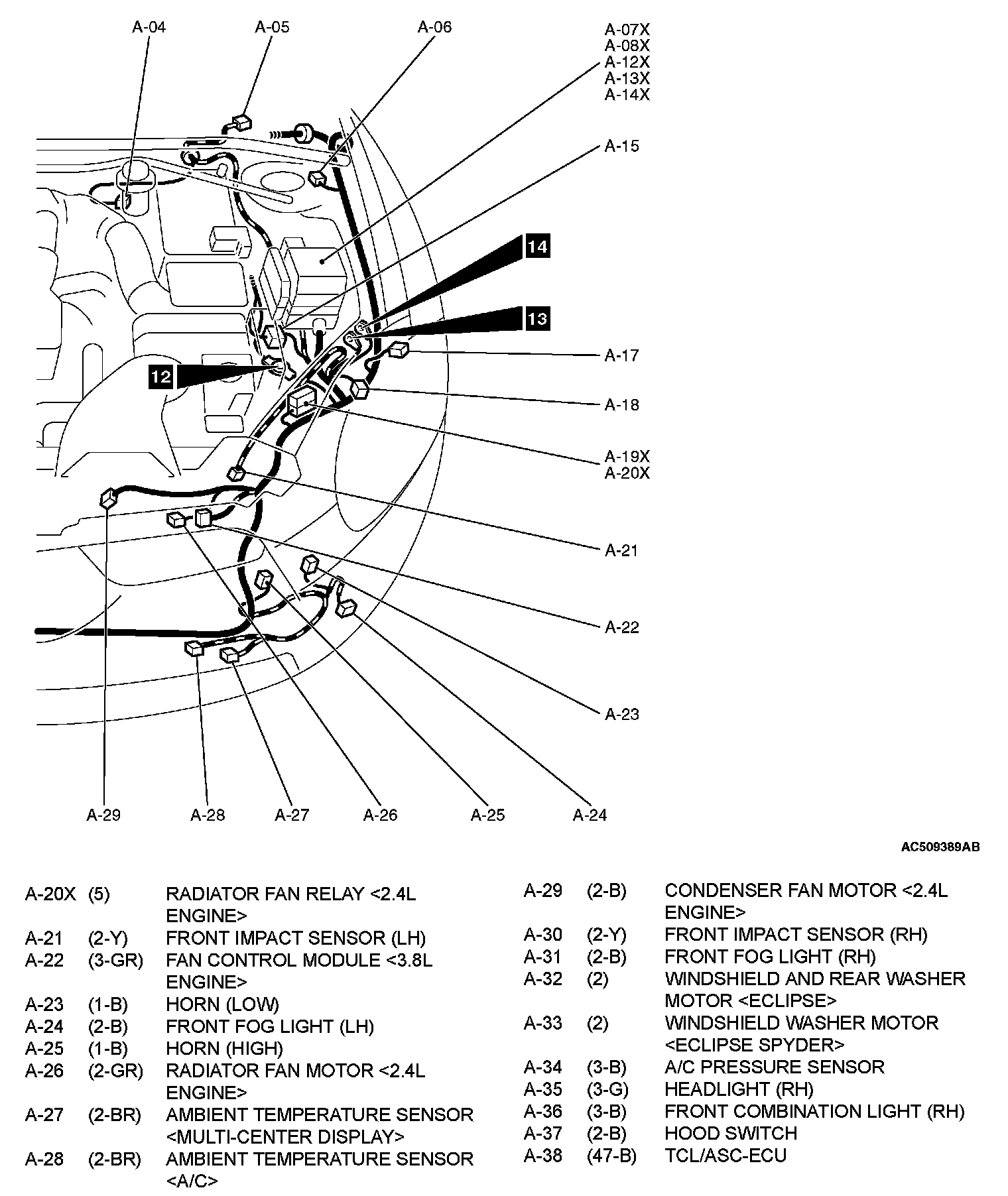

A-01 To A-38 (Part 2):
