Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
A Connectors - Engine Compartment
>>
A-01 to A-37
A-01 to A-37

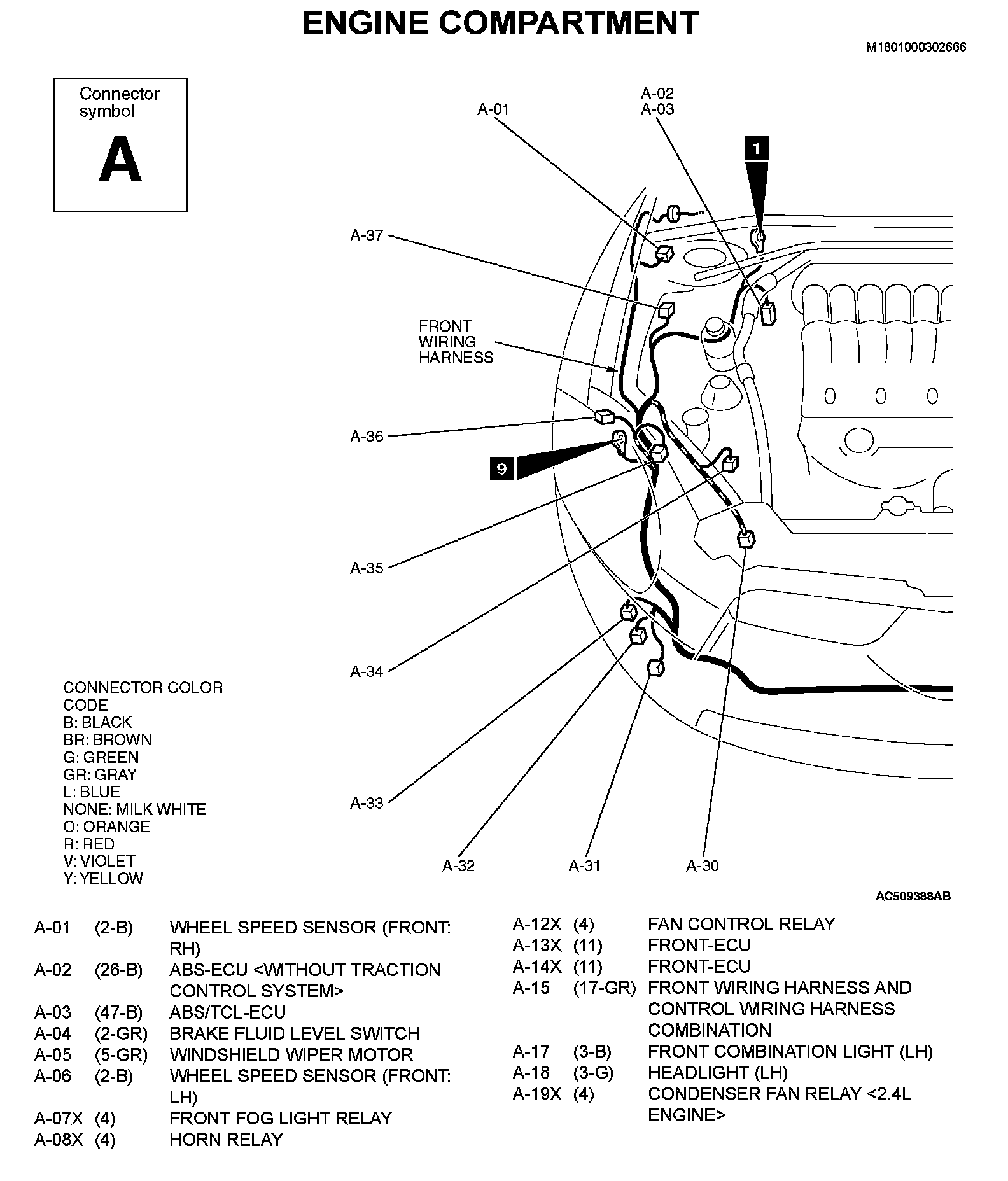

A-01 To A 37 Part 1:

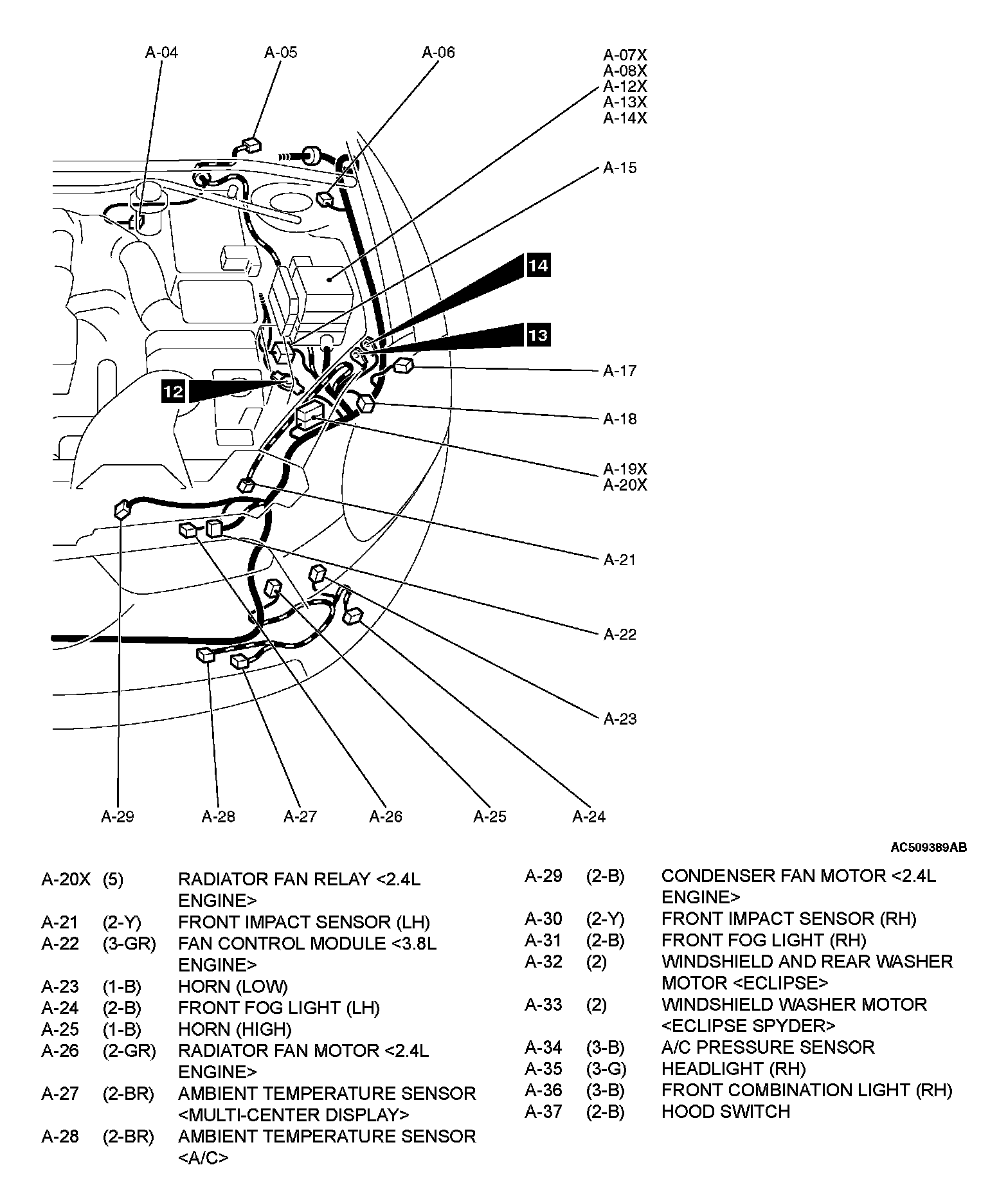

A-01 To A 37 Part 2:
