Reading Diagnostic Trouble Codes

HOW TO READ DIAGNOSTIC TROUBLE CODES

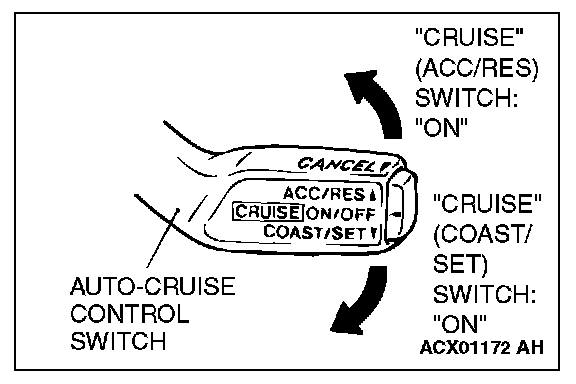

1. Turn the ignition switch to the "ON" position while holding the auto-cruise control switch down to the "COAST/SET" position. Then within one second more the cruise control switch up to the "ACC/RES" position.
2. Read a diagnostic trouble code by observing the flash display pattern of the "CRUISE" indicator light in the combination meter.

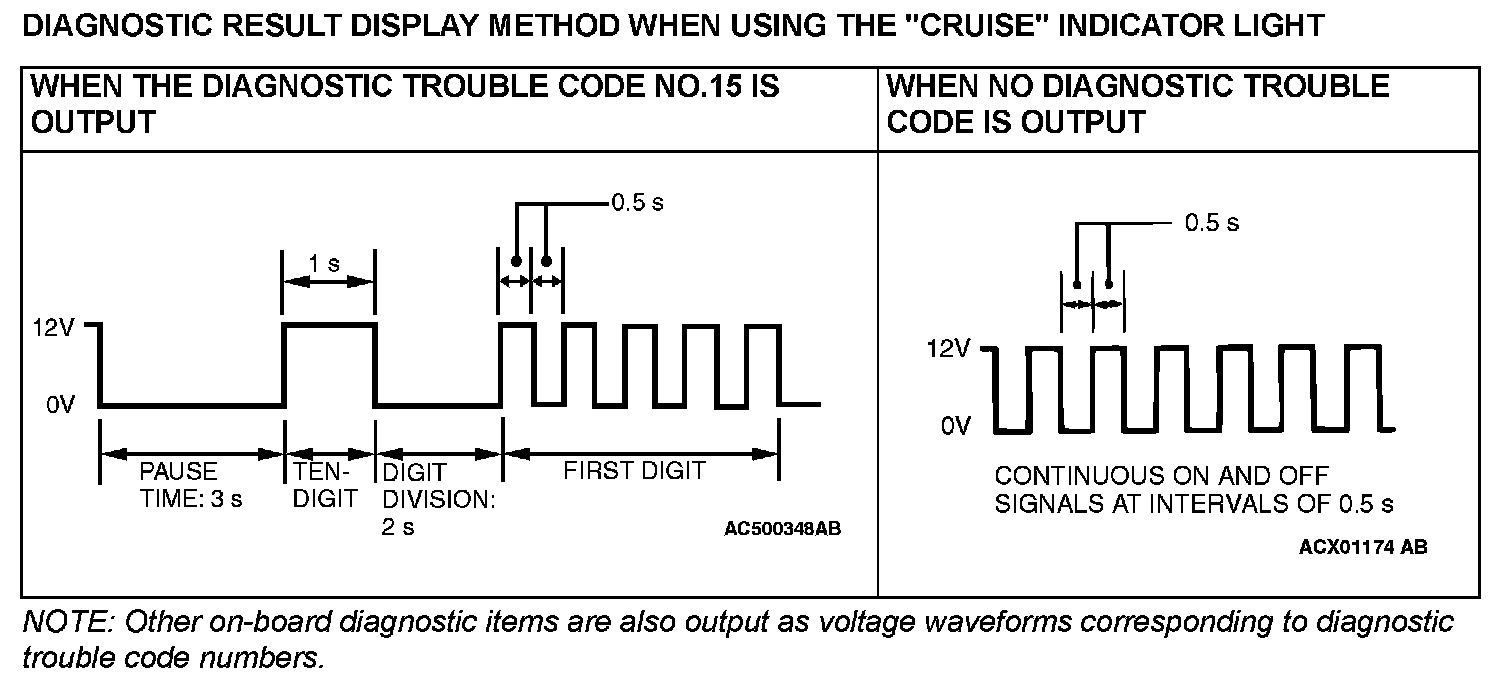

Diagnostic Result Display Method When Using The "CRUISE" Indicator Light
