Brake Pedal Assy: Service and Repair

NOTE: This article contains changes called out in TSB-08-35-001.


BRAKE PEDAL

REMOVAL AND INSTALLATION

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which may have grease on them.

Post-installation Operation:

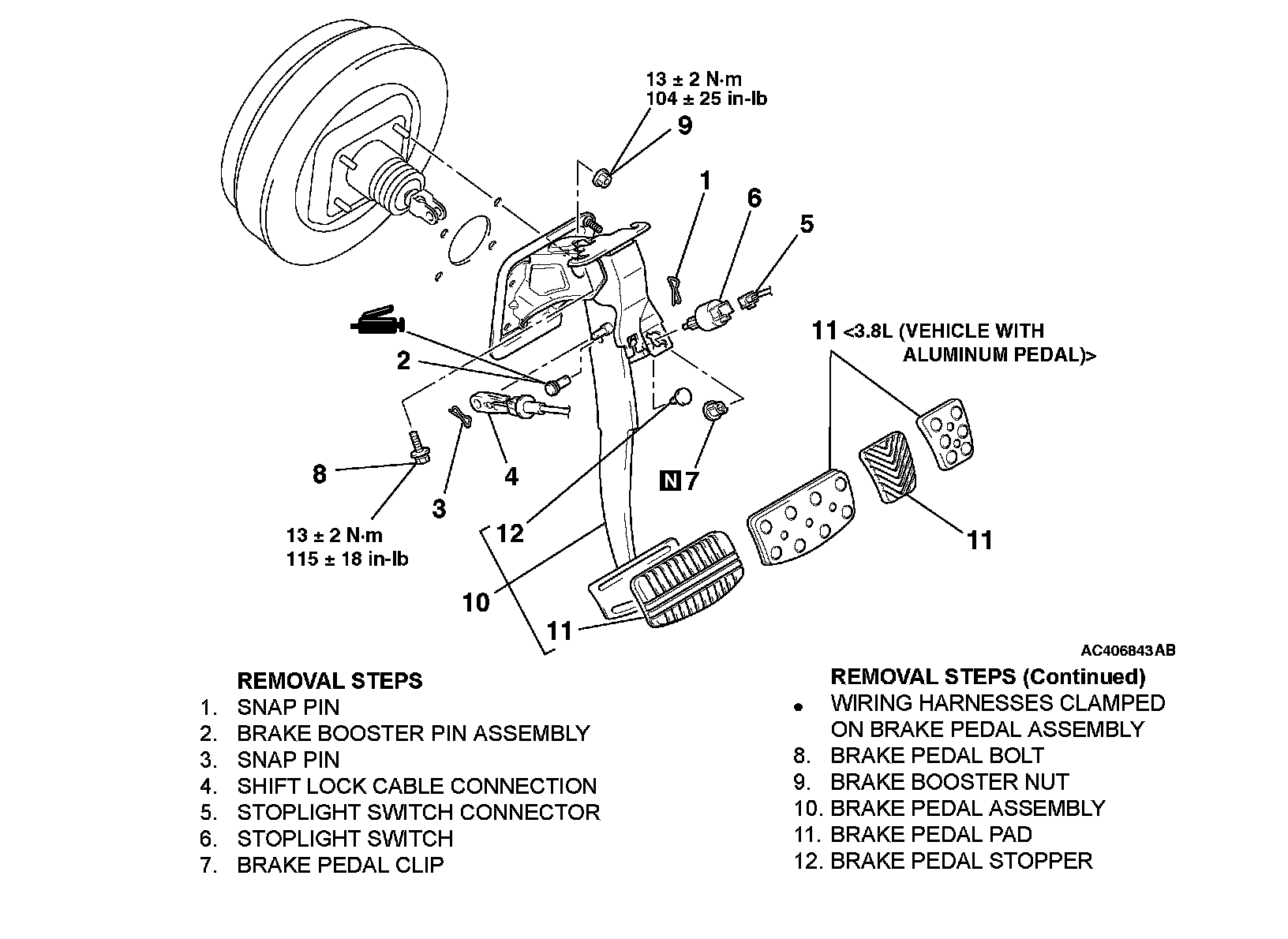

Removal Steps 1-12:

INSPECTION

STOPLIGHT SWITCH CHECK

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which may have grease on them.

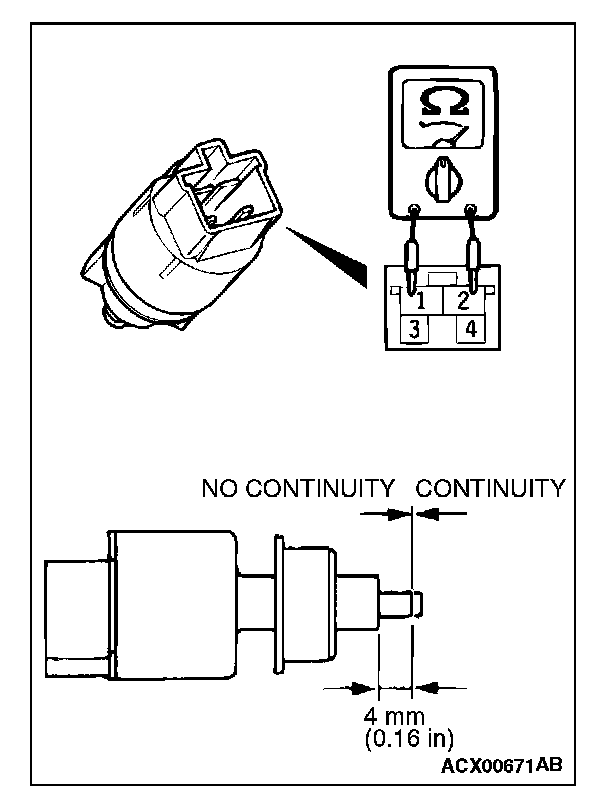

1. Connect an ohmmeter between the stoplight switch connector terminals.

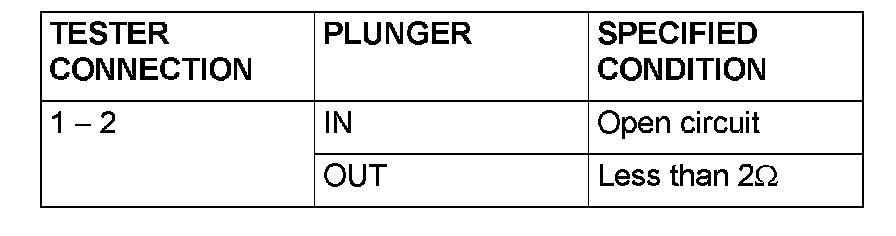

2. There should be no continuity between the terminals when the plunger is pushed in as shown. There should be continuity when it is released.
