Resistance and Continuity Between Harness-Side Connector Terminals

RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR TERMINALS

Required Special Tool:
^ MB991974: ABS Check Harness





1. Turn the ignition switch to the "LOCK" (OFF) position and disconnect the ABS-ECU connectors before checking resistance and continuity.

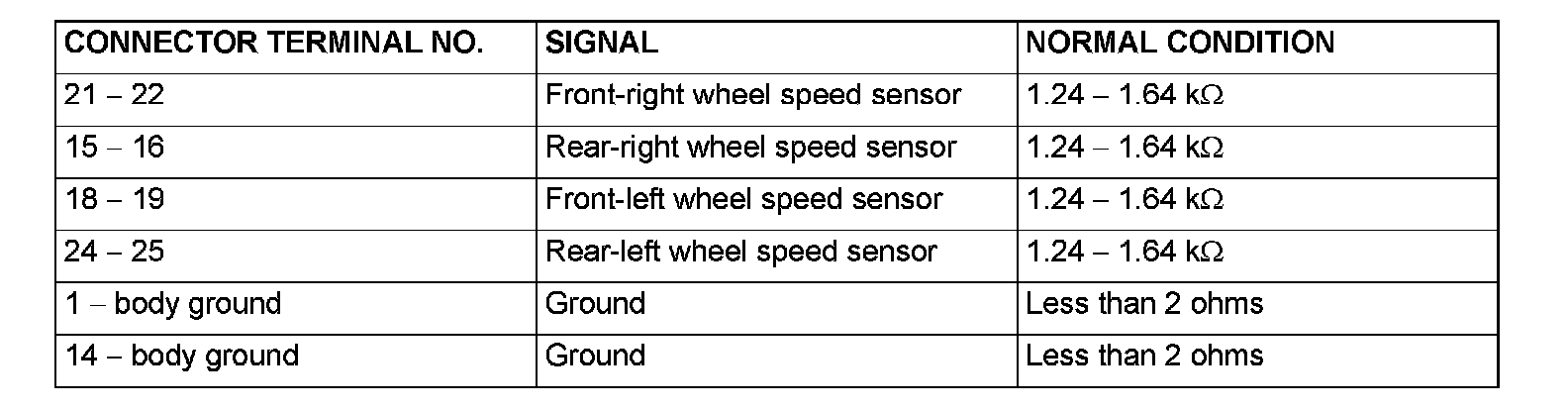

2. Check the resistance and continuity between the terminals indicated in the table below.

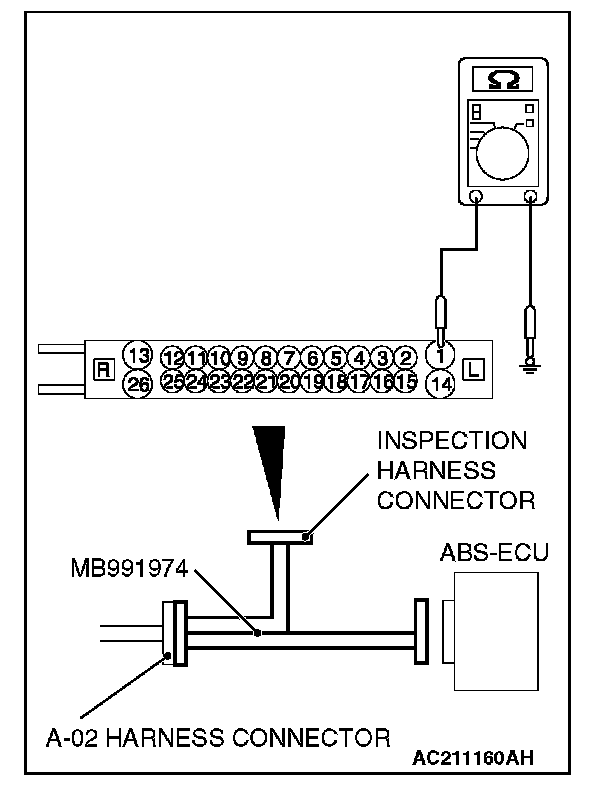

3. The terminal layout is shown in the illustration.
