Rotary Cylinder

*This document has been updated per manufacturer TSB #08-42A-009


ROTARY CYLINDER

REMOVAL AND INSTALLATION

Post-installation Operation:

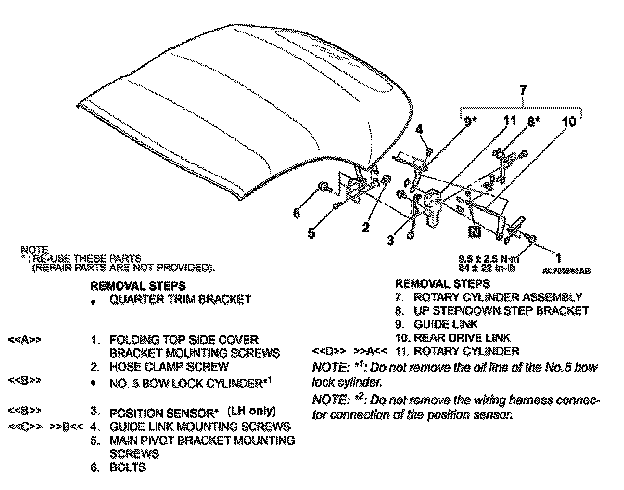

Removal Steps 1-9:

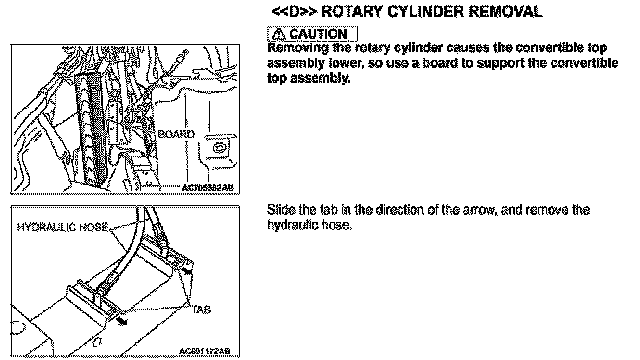

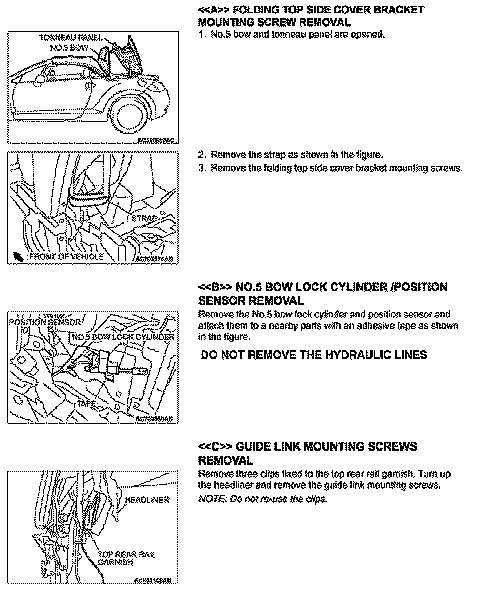

REMOVAL SERVICE POINTS










INSTALLATION SERVICE POINTS

]]A[[ ROTARY CYLINDER INSTALLATION.

CAUTION: Since the O-ring at the connection of the rotary cylinder and the hydraulic hose is small and delicate, be careful when installing it.

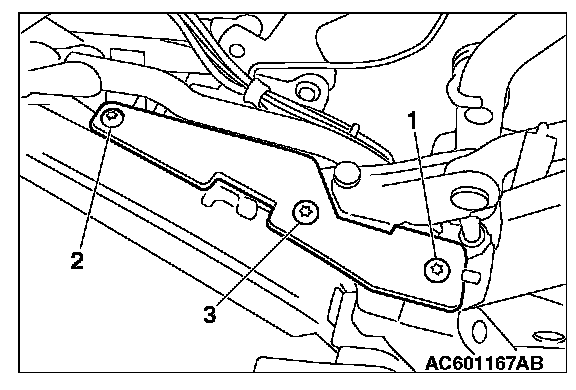

]]B[[ GUIDE LINK MOUNTING SCREW INSTALLATION






Tighten the guide link mounting screws in the order shown.
