Topstack No.5 Bow
Topstack No.5 Bow
TOPSTACK No.5 BOW
REMOVAL AND INSTALLATION
Post-installation Operation:

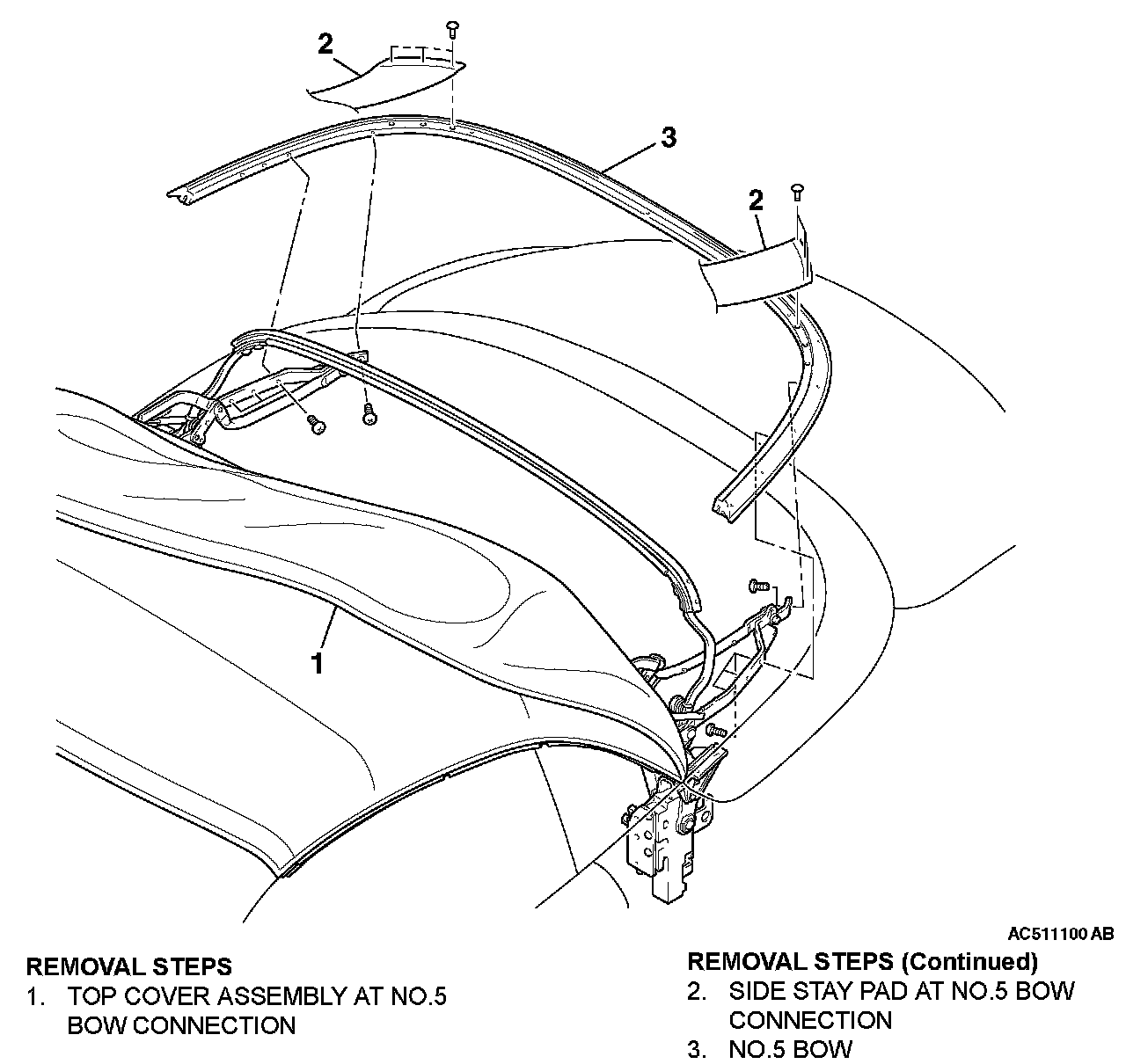

Removal Steps 1-3:
