Front Door Lock Actuator Check

INSPECTION

FRONT DOOR LATCH CHECK

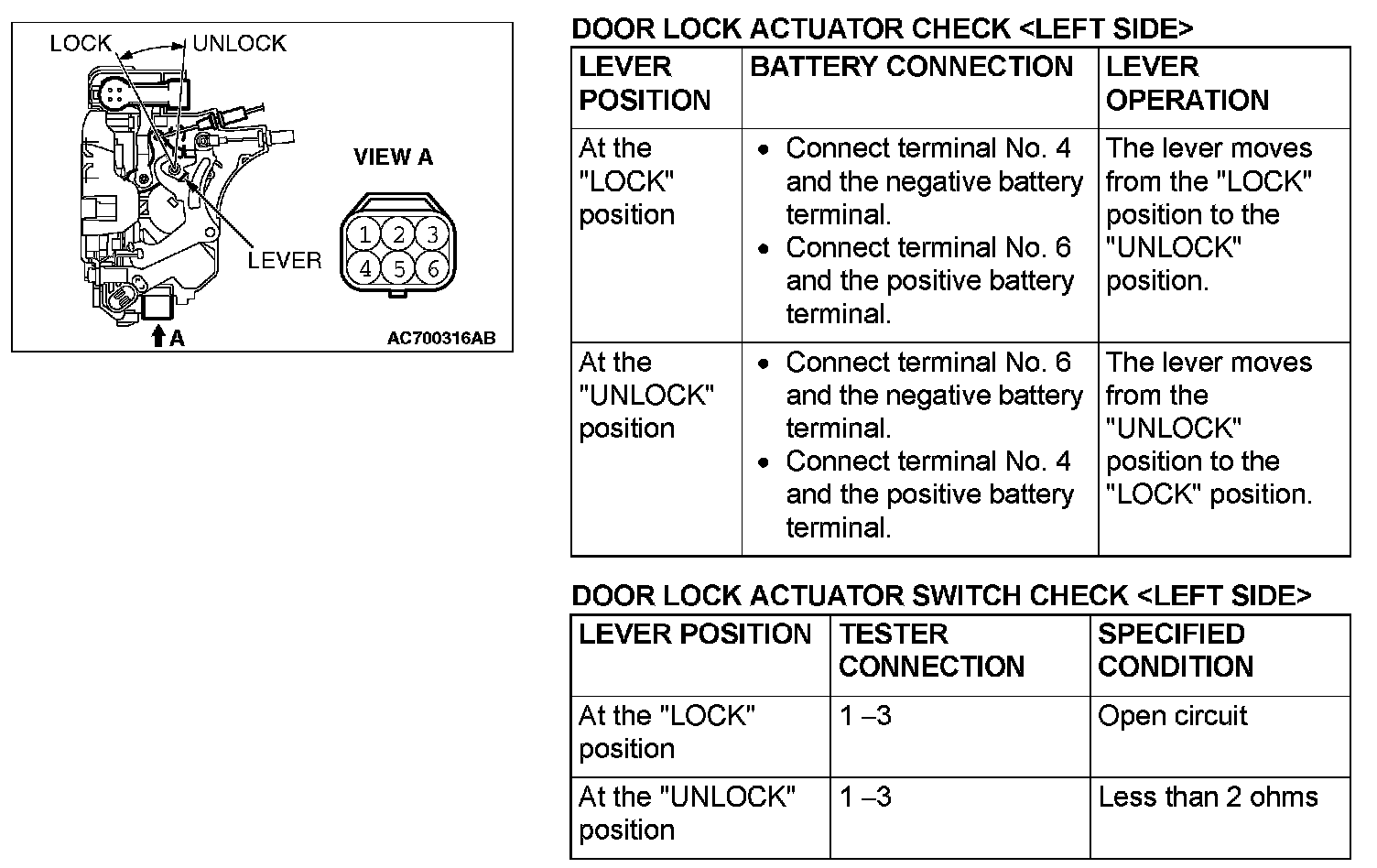

The illustration shows when the door lock actuator is viewed from inside the door.
