Interior Moulding / Trim: Service and Repair

TRIMS

REMOVAL AND INSTALLATION

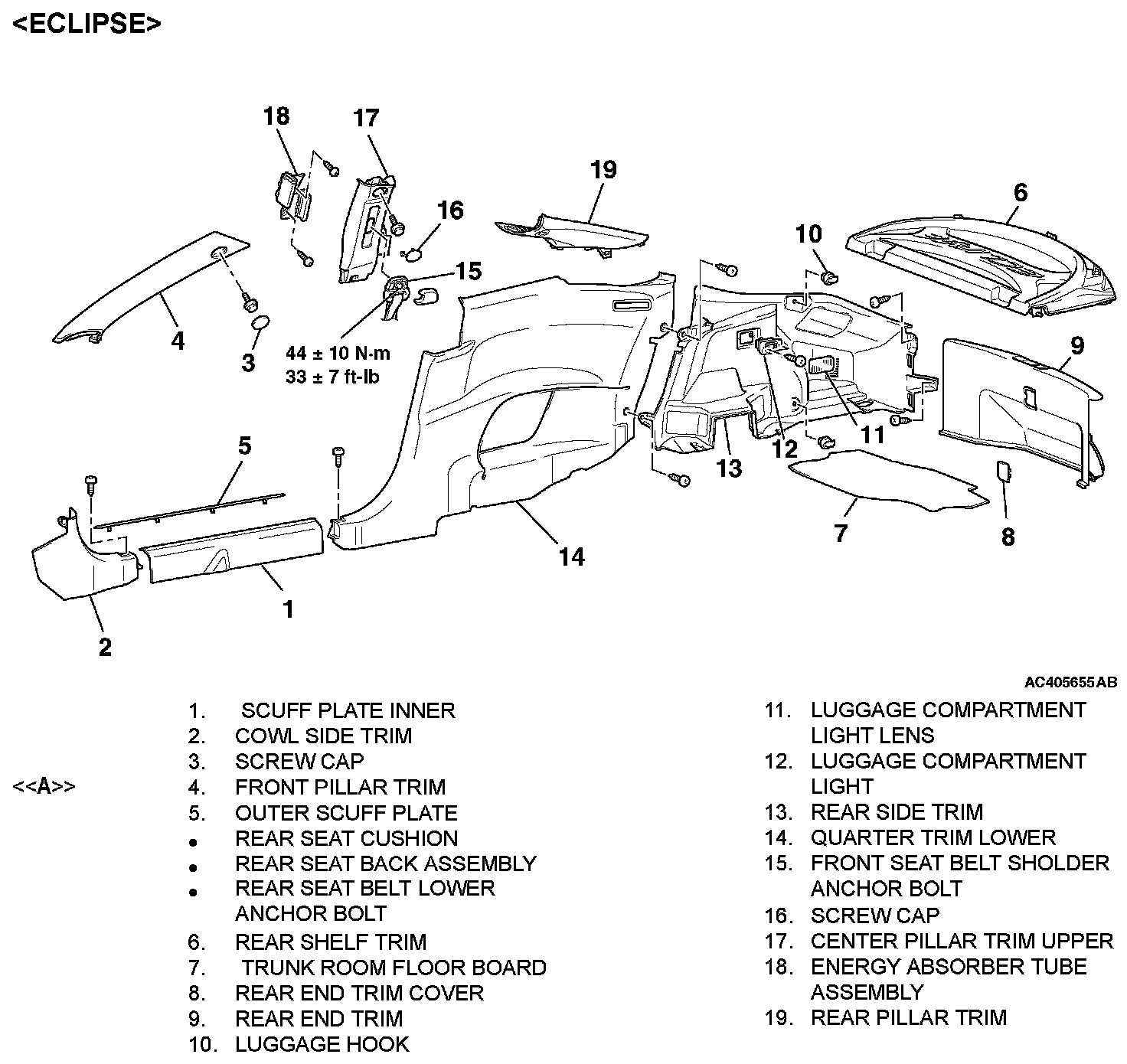

Removal Steps 1-19:

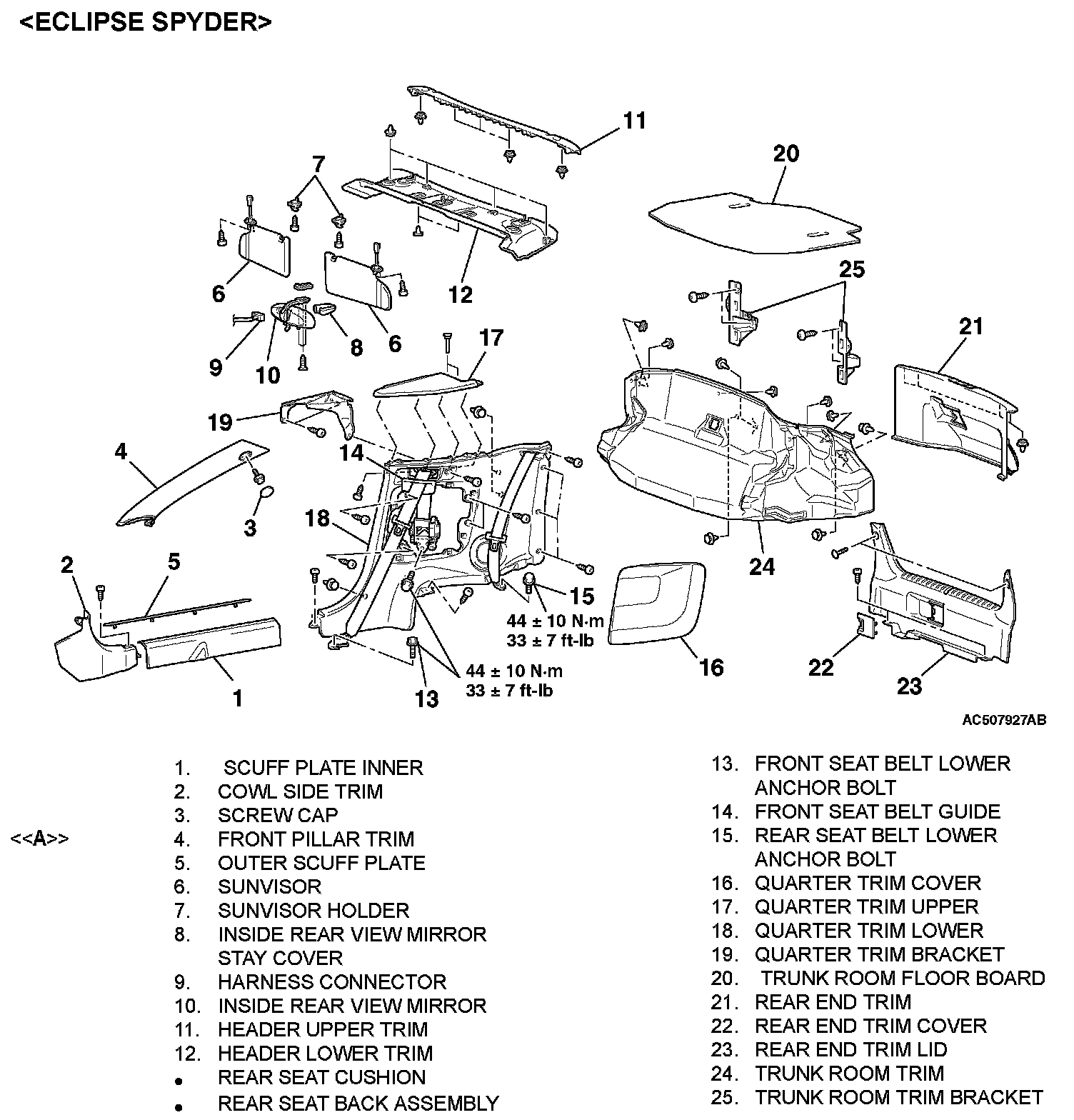

Removal Steps 1-25:

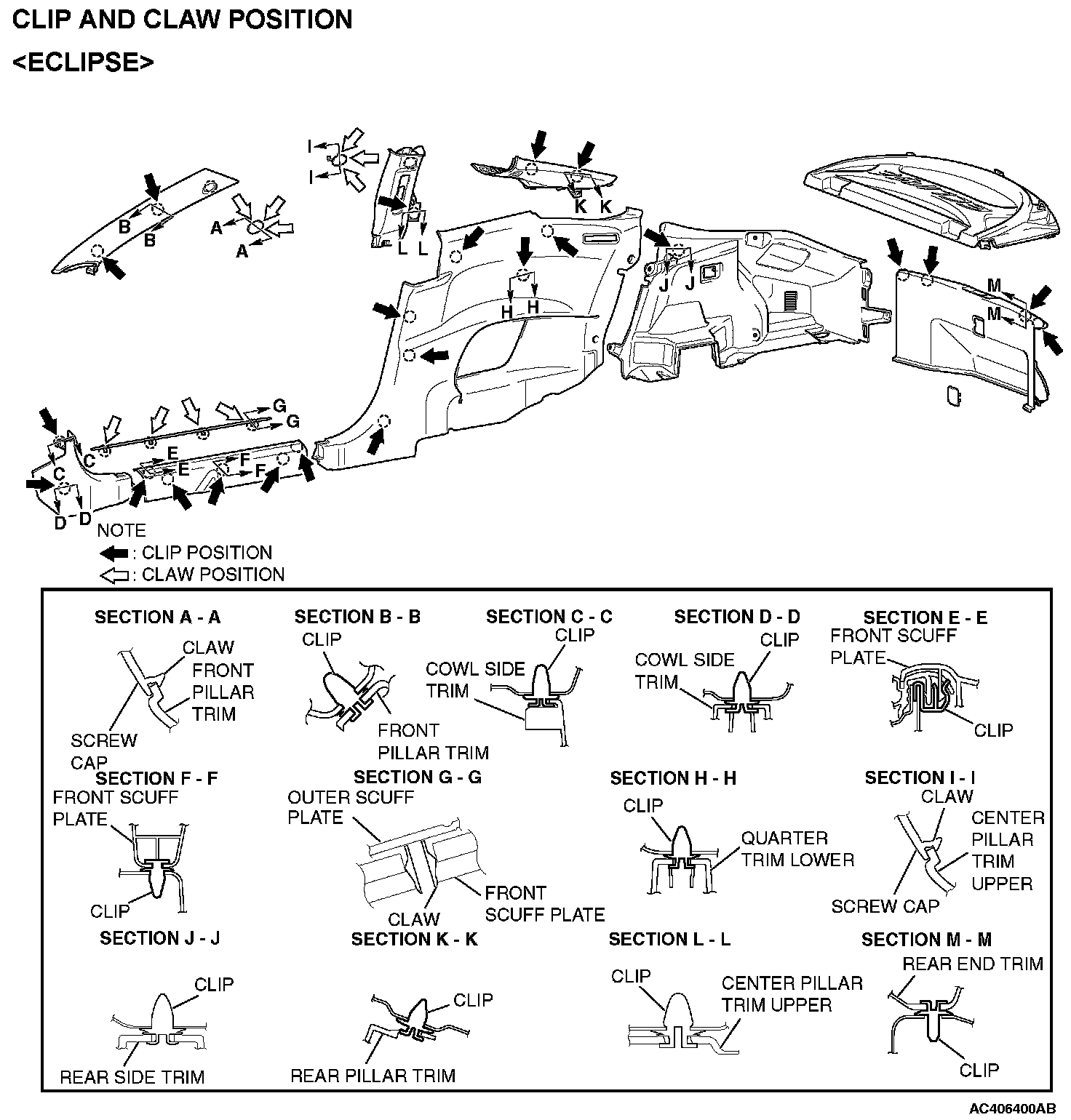

CLIP AND CLAW POSITION

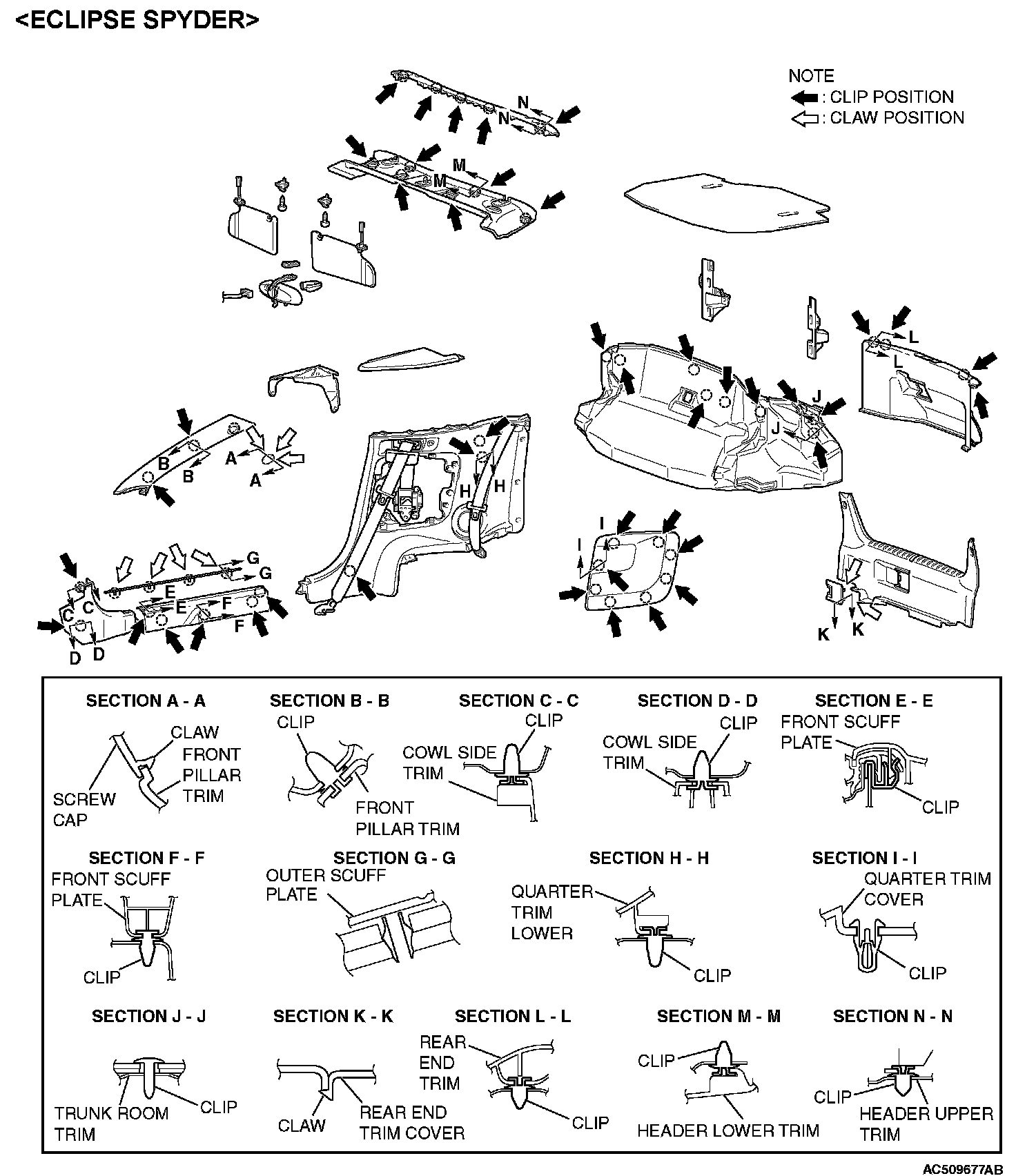

Clip And Claw Position:

Clip And Claw Position:

REMOVAL SERVICE POINT

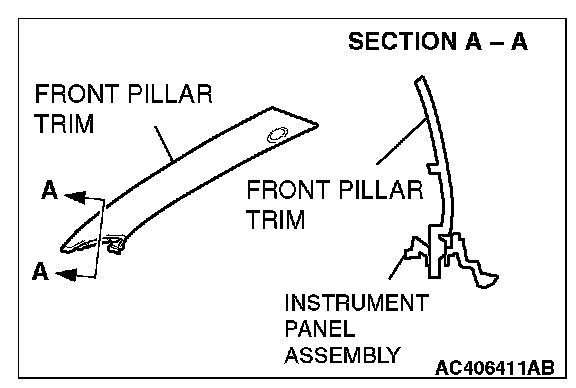

[[A]] FRONT PILLAR TRIM REMOVAL






Release the clip and remove the front pillar trim by pulling it to the direction shown.
