Trunk Lid Latch Assembly Check
INSPECTION
TRUNK LID LATCH ASSEMBLY CHECK
Trunk Lid Latch Actuator Check:

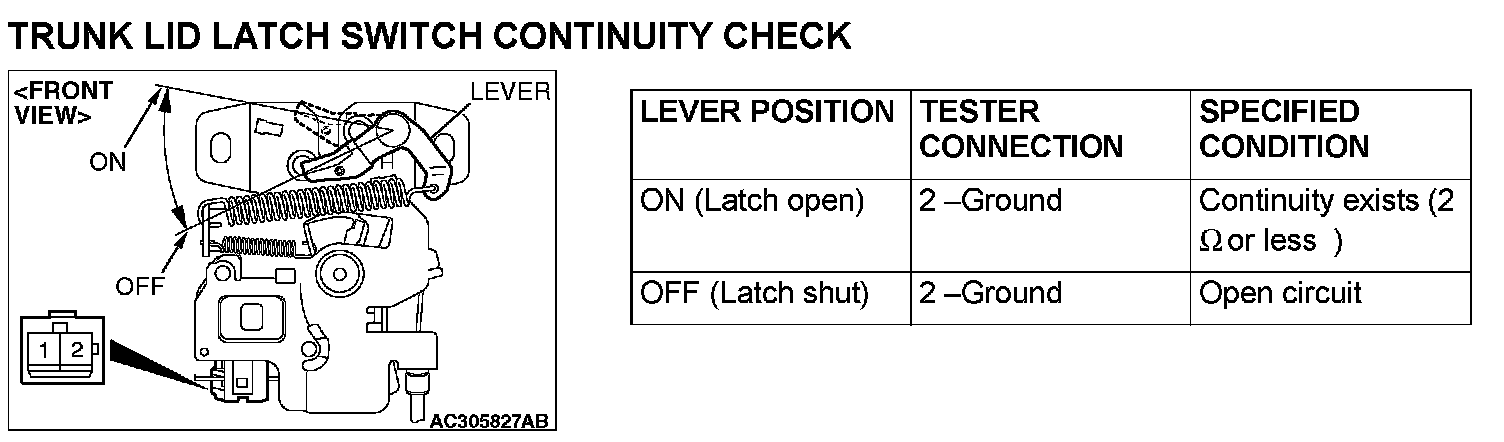

Trunk Lid Latch Switch Continuity Switch:
