Removal and Installation

HOOD

REMOVAL AND INSTALLATION

Post-installation Operation:

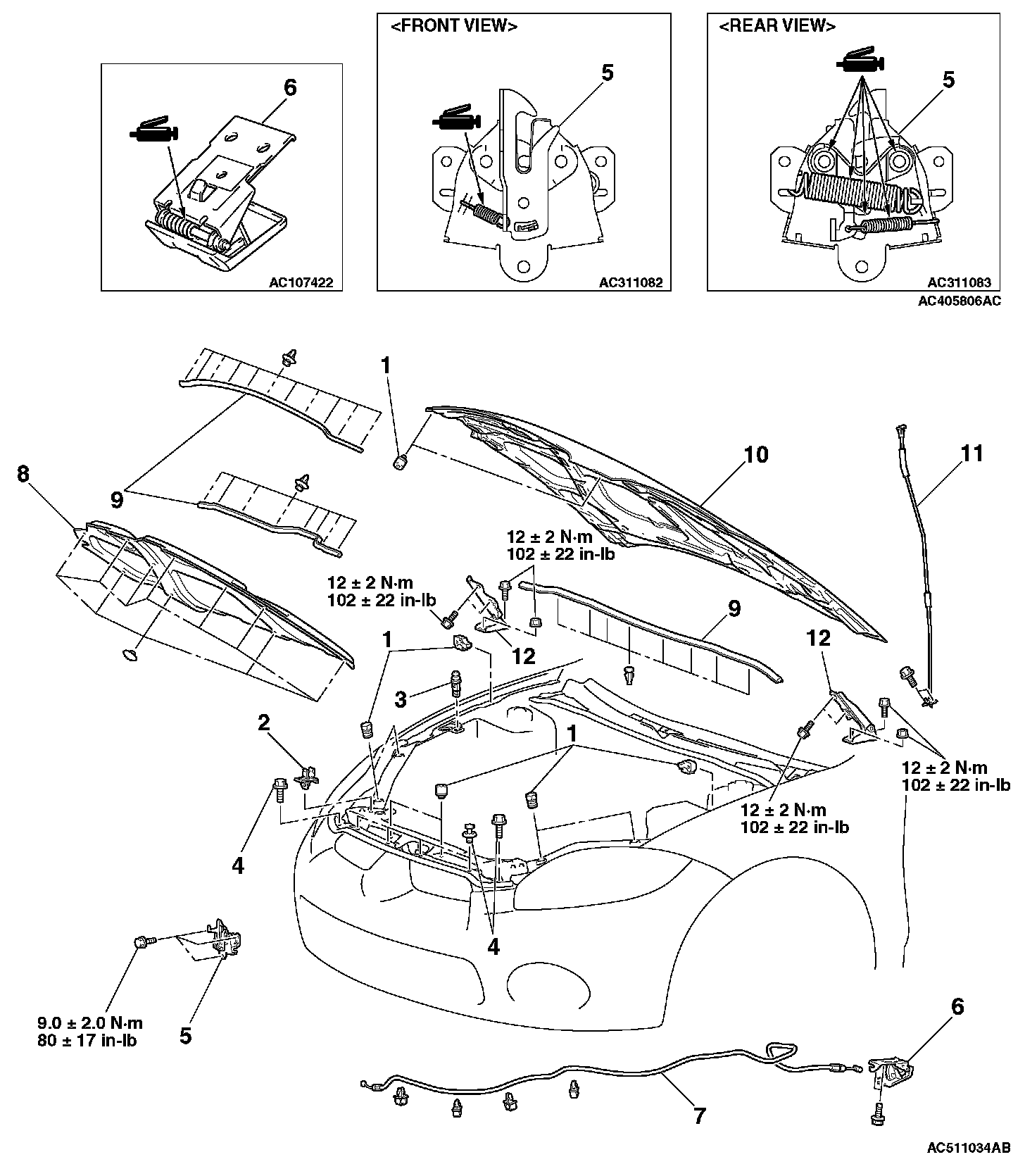

Removal Steps 1-12 (Part 1):

Removal Steps 1-12 (Part 2):

REMOVAL SERVICE POINT

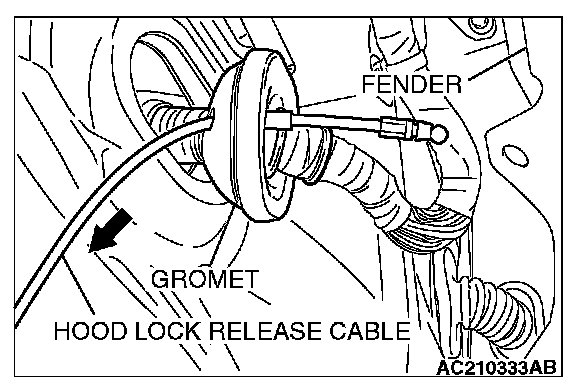

[[A]] HOOD LOCK RELEASE CABLE REMOVAL.






Release the grommet as shown, and pull out the hood lock release cable in the arrow direction (passenger compartment side).

NOTE: If you attempt to pull out the hood lock release cable in the opposite direction, the end of the hood lock release cable will engage the grommet and prevent cable removal.

INSTALLATION SERVICE POINT

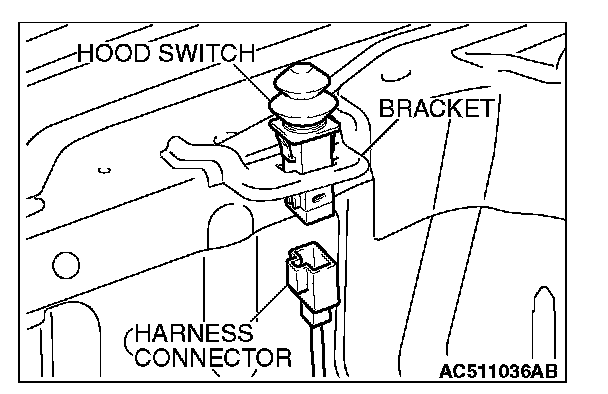

]]A[[ HOOD SWITCH INSTALLATION.






1. Insert the hood switch to the bracket halfway.
2. Insert the harness connector to the hood switch.
3. Install the hood switch to the bracket.
