Function Diagnosis

The tables below show the service data and their normal condition, which are displayed during the "Function Diag." The column "Normal condition" shows values that are shown when each operation is made.

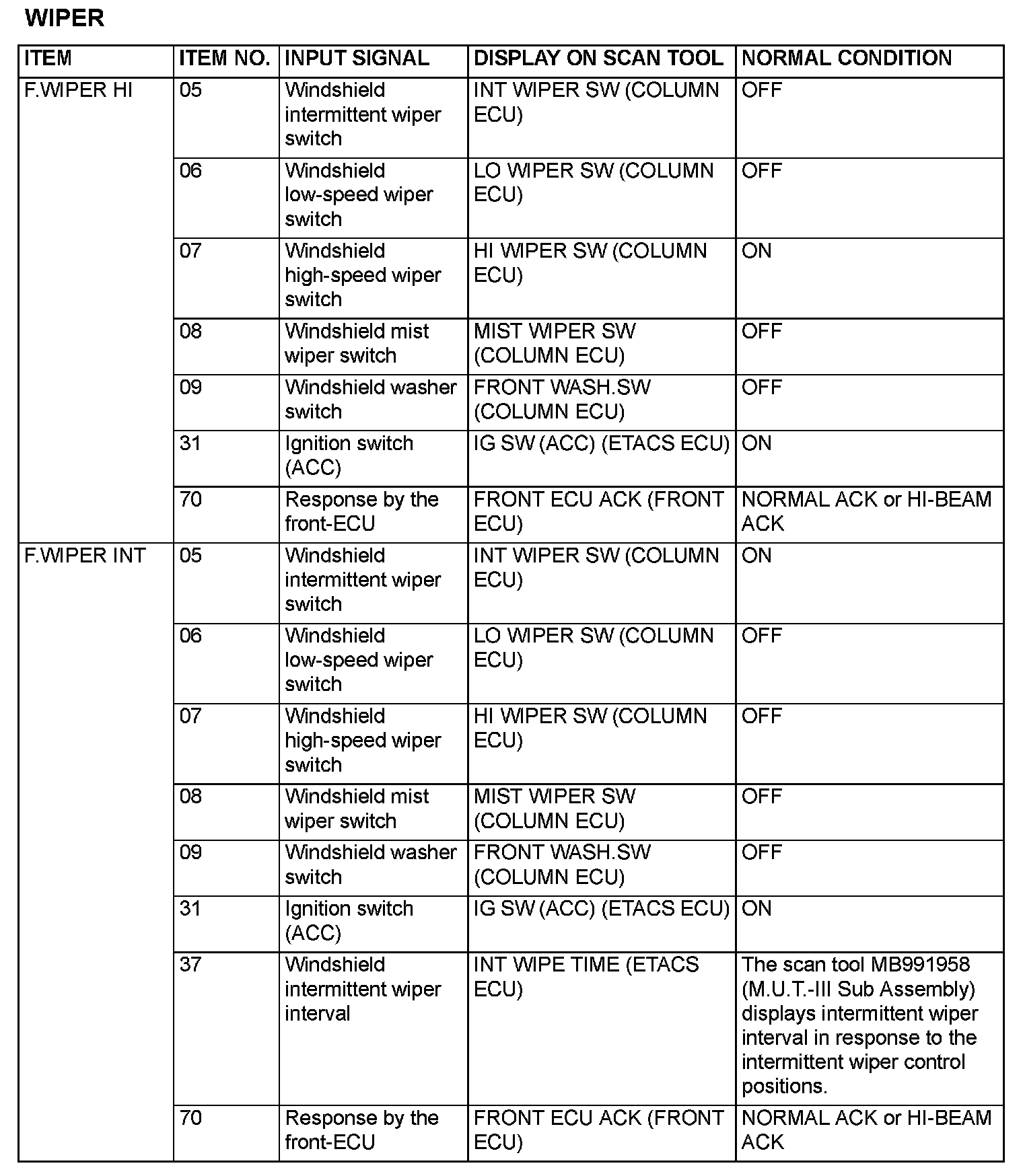

Function Diagnosis - Wiper (Part 1):

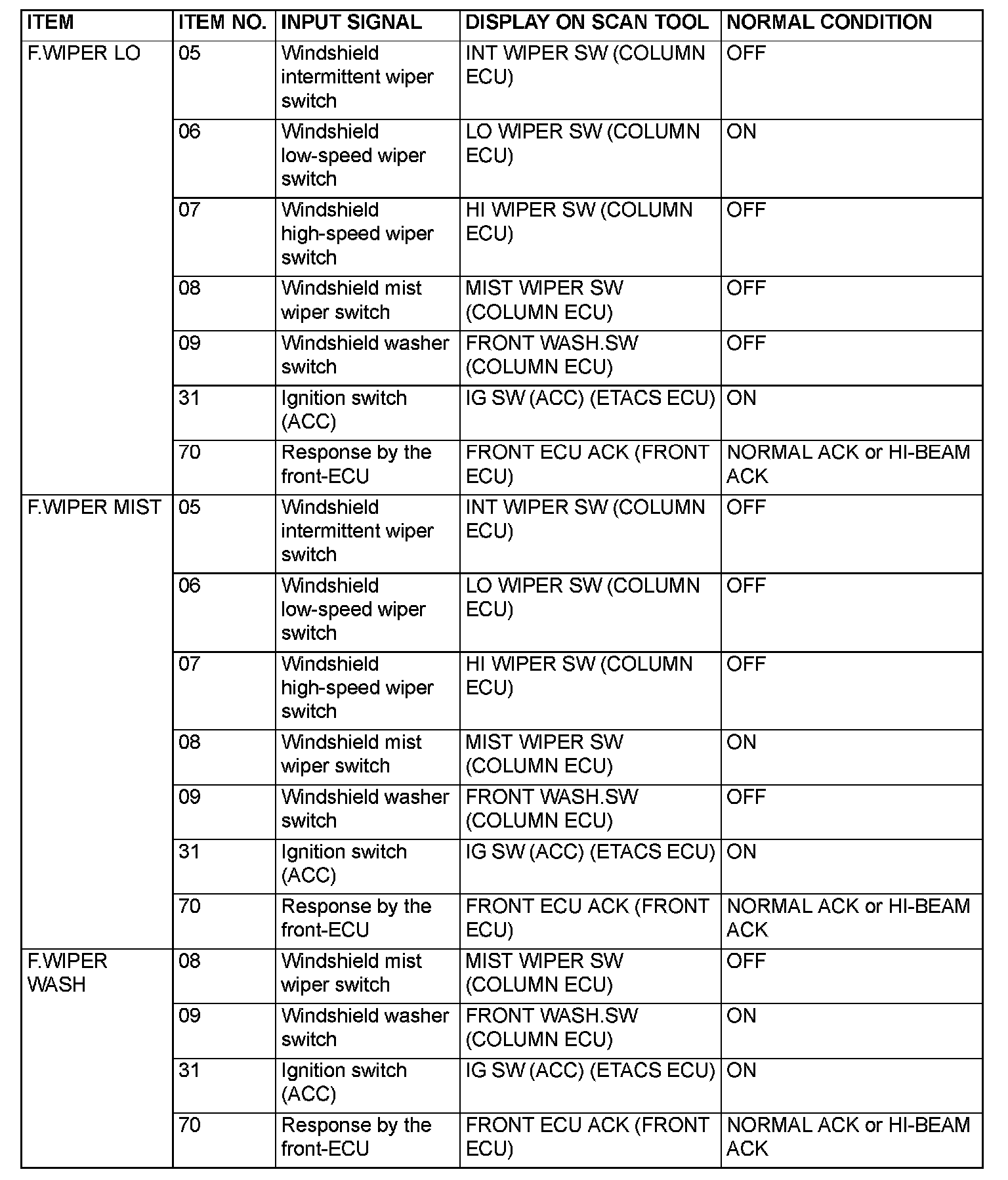

Function Diagnosis - Wiper (Part 2):

Function Diagnosis - Rear Wiper:

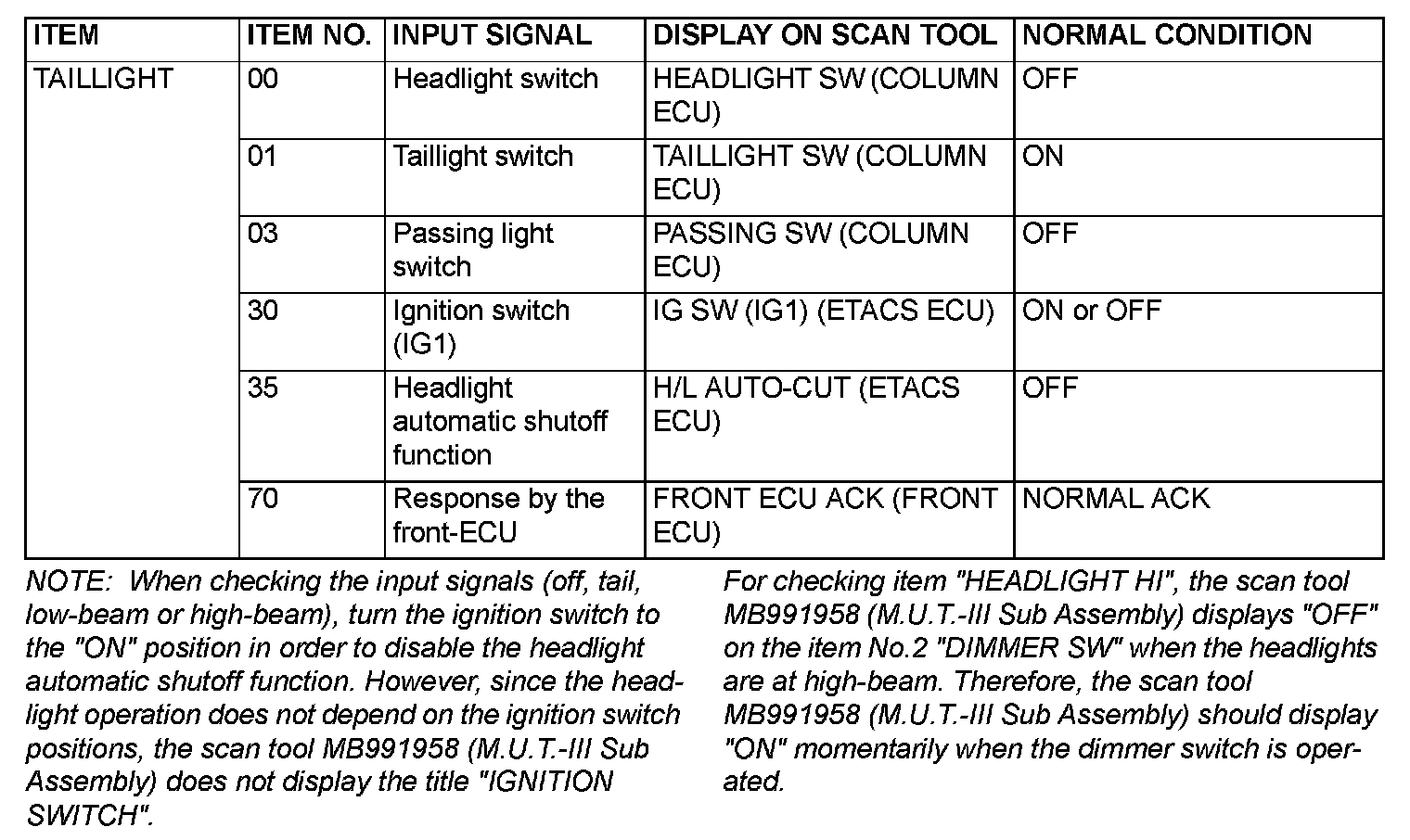

Function Diagnosis - Lighting (Part 1):

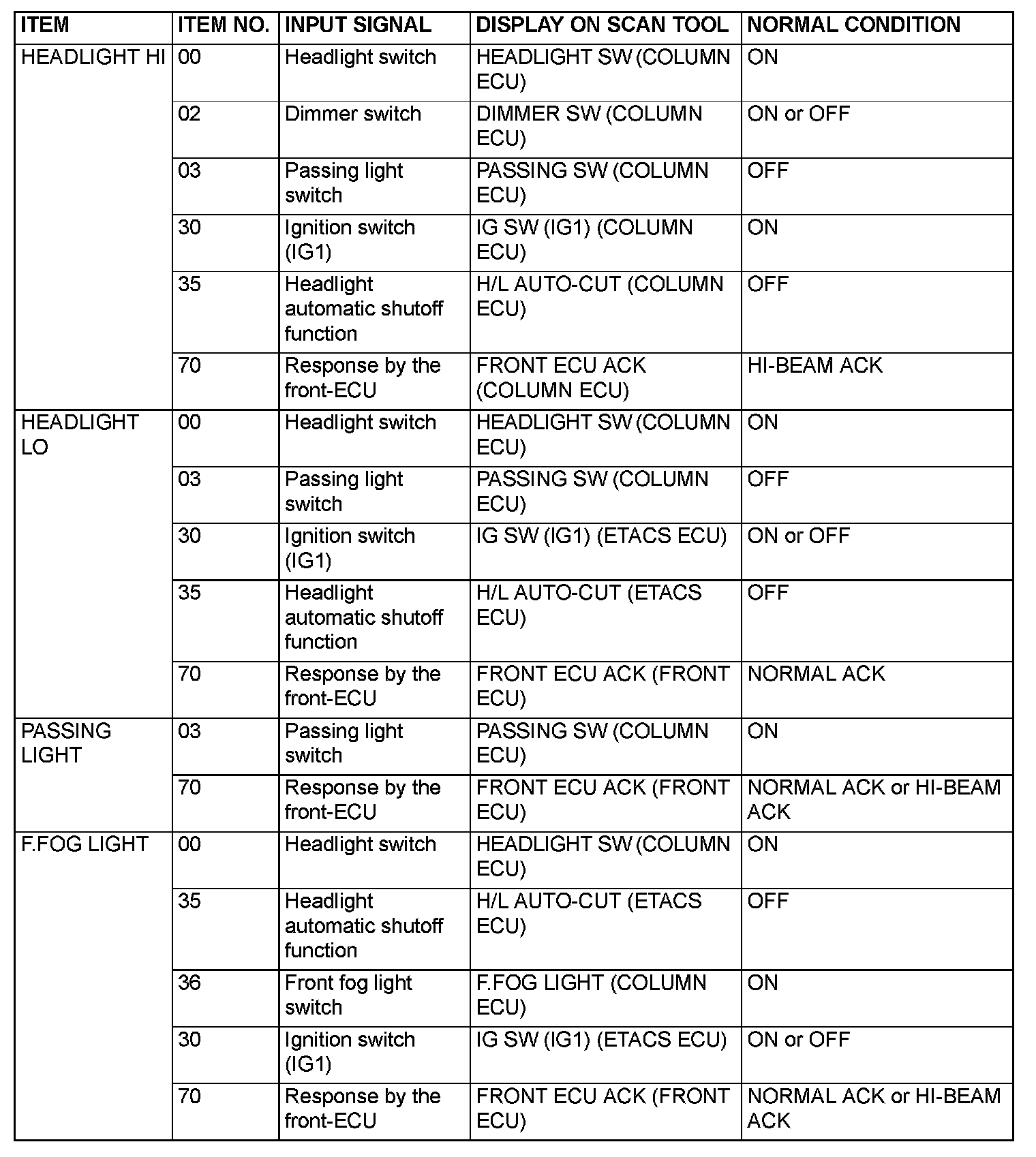

Function Diagnosis - Lighting (Part 2):

Function Diagnosis - Lighting (Part 3):

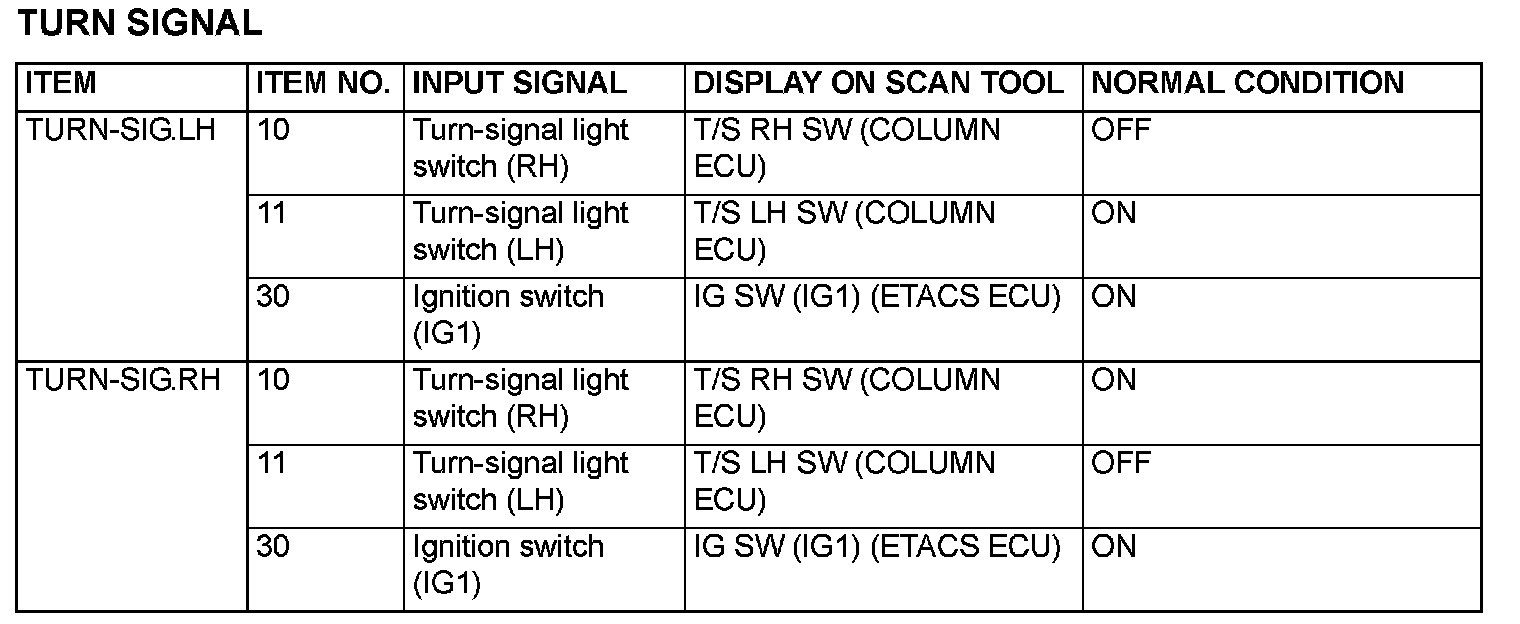

Function Diagnosis - Turn Signal:

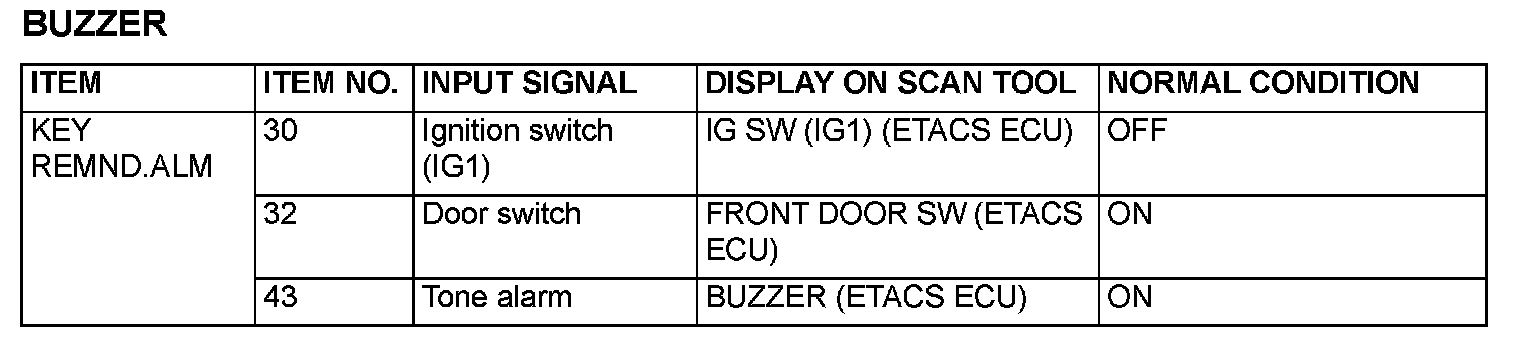

Function Diagnosis - Buzzer (Part 1):

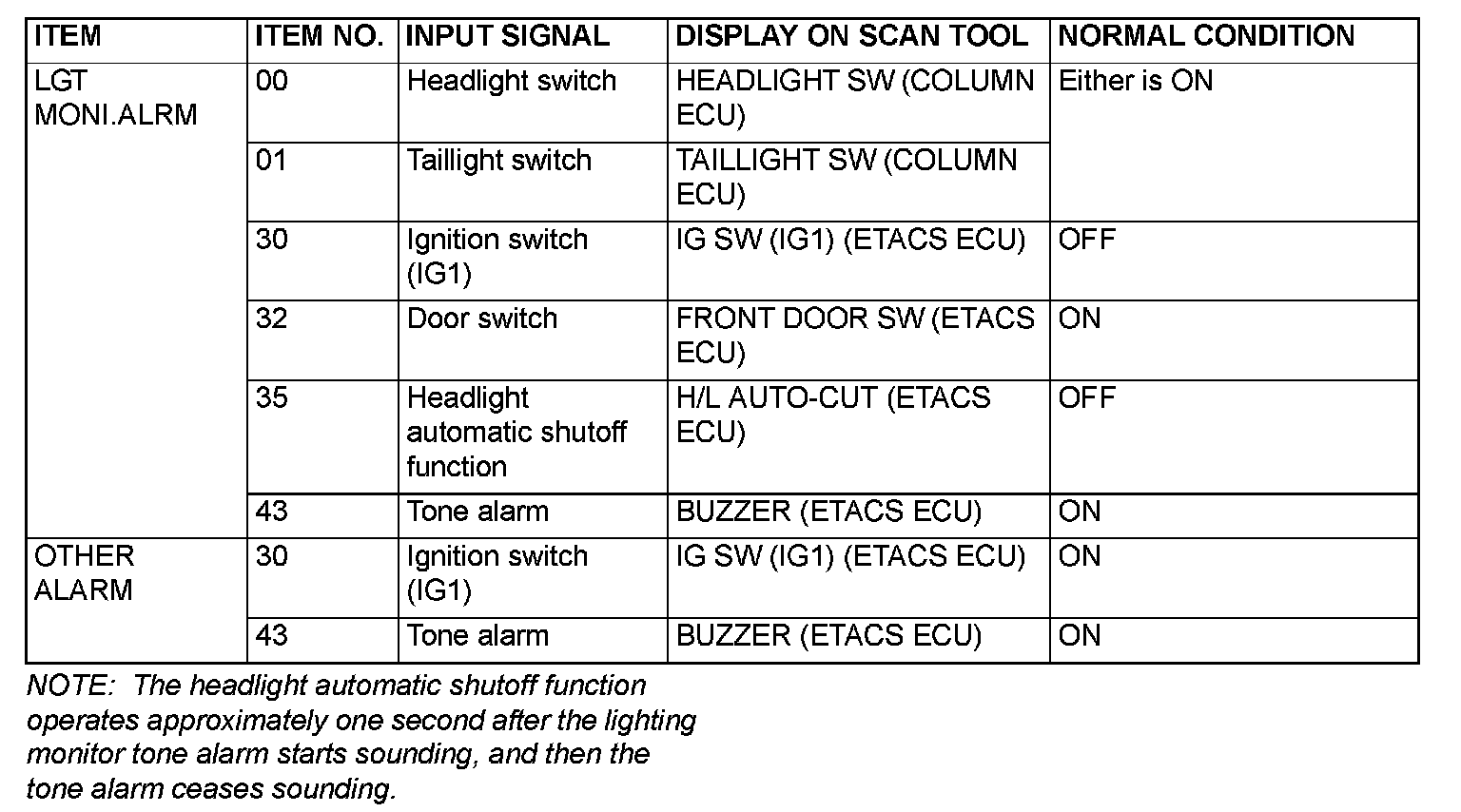

Function Diagnosis - Buzzer (Part 2):

Function Diagnosis - Sunroof:
