Repair and Diagnosis: Application and ID

VEHICLE IDENTIFICATION

MODELS

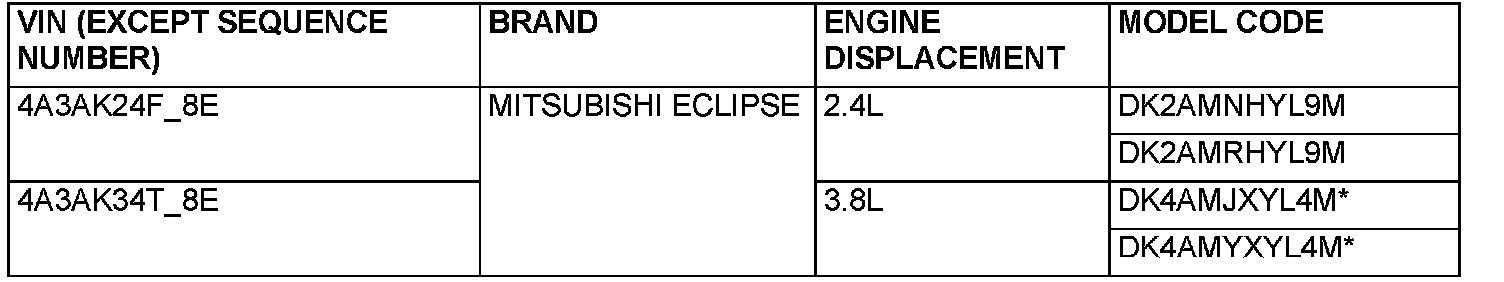

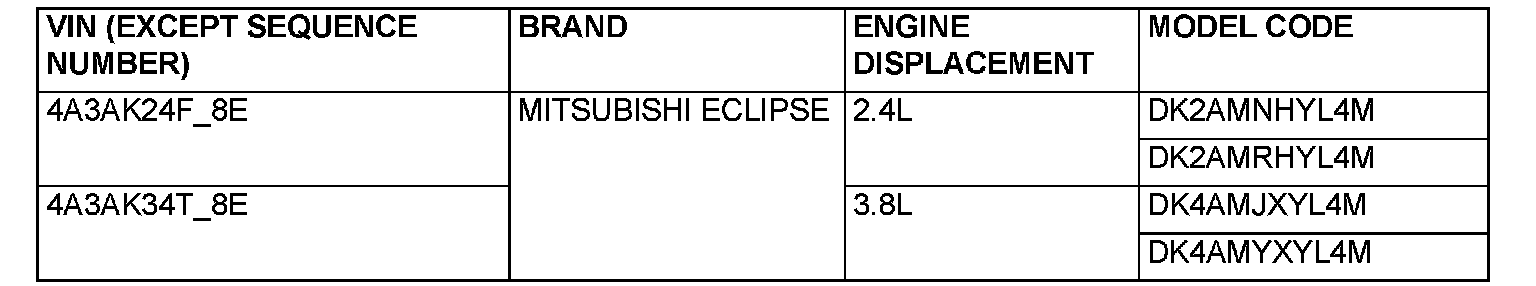

ECLIPSE (VEHICLES FOR USA)

VEHICLES FOR FEDERAL EMISSION REGULATION





VEHICLES FOR CALIFORNIA EMISSION REGULATION





NOTE: The items marked with * are the same as Federal emission regulation.

ECLIPSE (VEHICLES FOR CANADA)

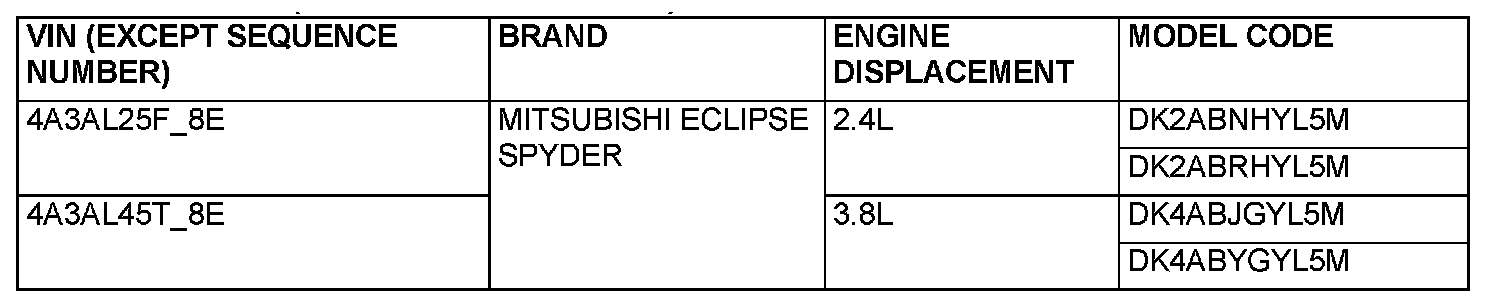

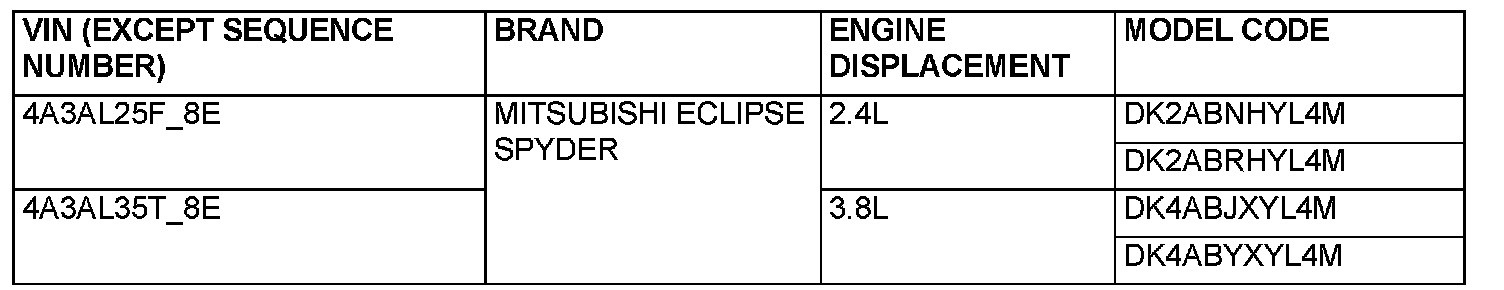

ECLIPSE SPYDER (VEHICLES FOR USA)

VEHICLES FOR FEDERAL EMISSION REGULATION

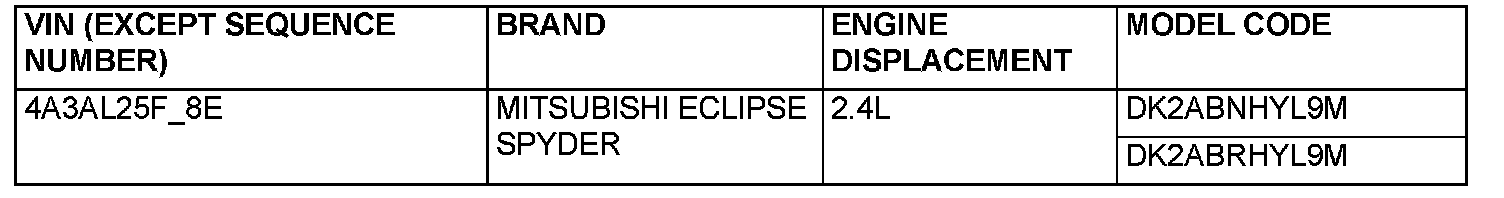

VEHICLES FOR CALIFORNIA EMISSION REGULATION





ECLIPSE SPYDER (VEHICLES FOR CANADA)





VEHICLE IDENTIFICATION CODE PLATE

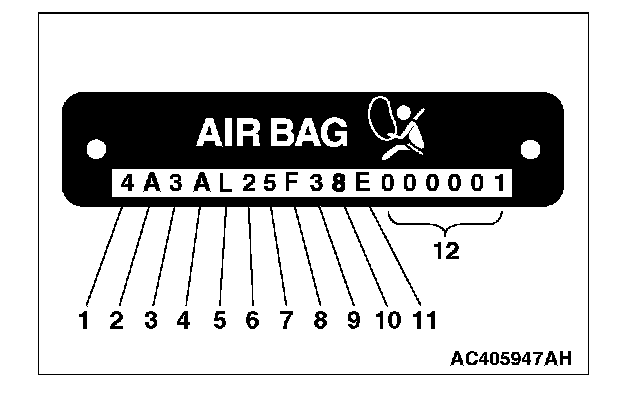

VEHICLE IDENTIFICATION NUMBER (VIN)

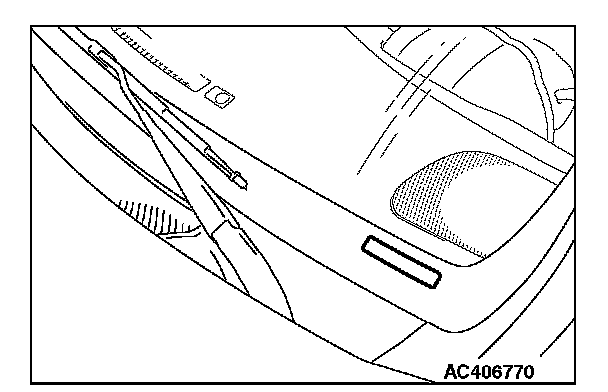

The vehicle identification number (VIN) is located on a plate attached to the left top side of the instrument panel.

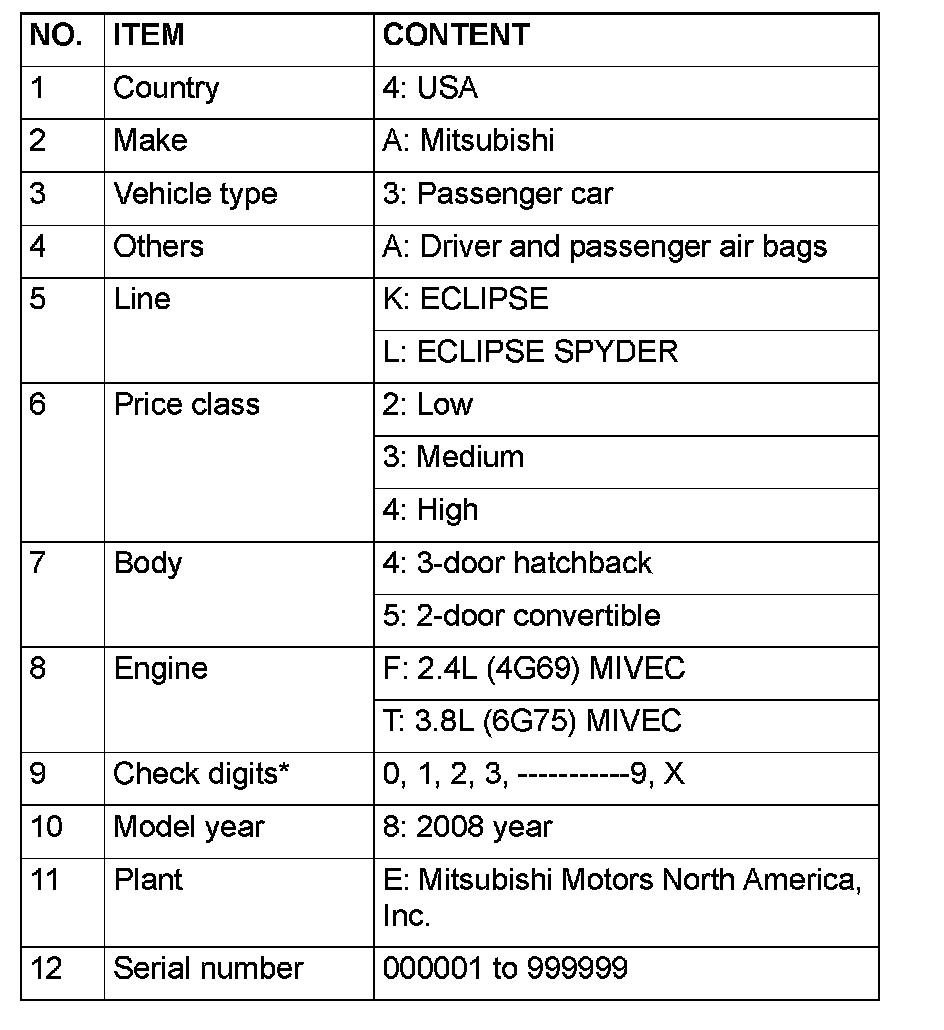

CODE CHART





Vehicle identification numbers contain 17 digits. The vehicle number is a code which tells country, make, vehicle type, etc.





NOTE: Check digit means a single number, or letter X, used to verify the accuracy of transcription of vehicle identification number

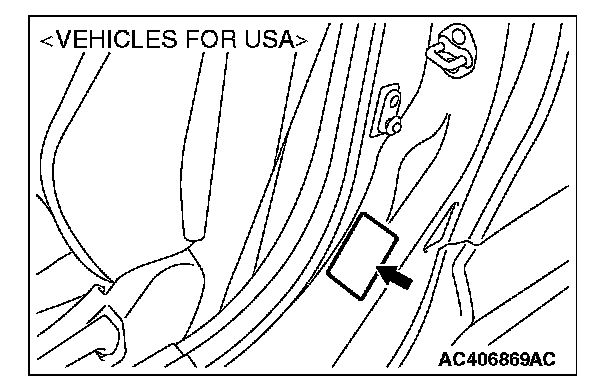

TIRE AND LOADING INFORMATION PLACARD

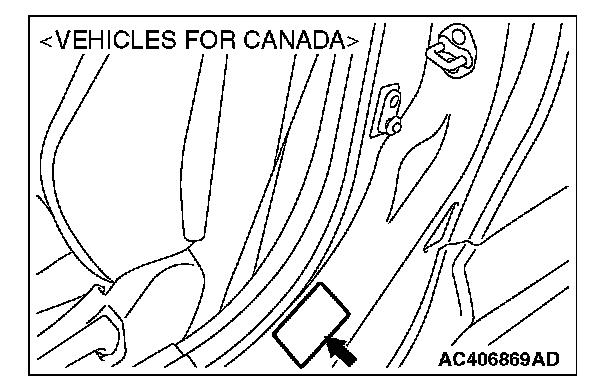

The tire and loading information placard is located on the inside sill of the driver's door.

ENGINE MODEL STAMPING

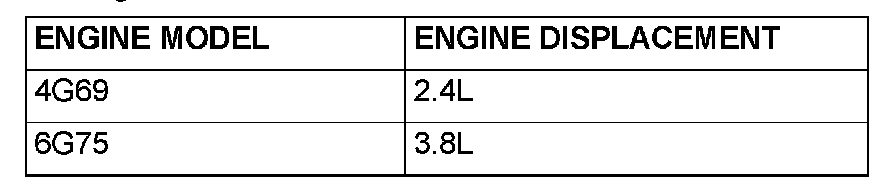

The engine model is stamped on the cylinder block. The engine model number is as shown as follow.





The engine serial number is stamped near the engine model number.

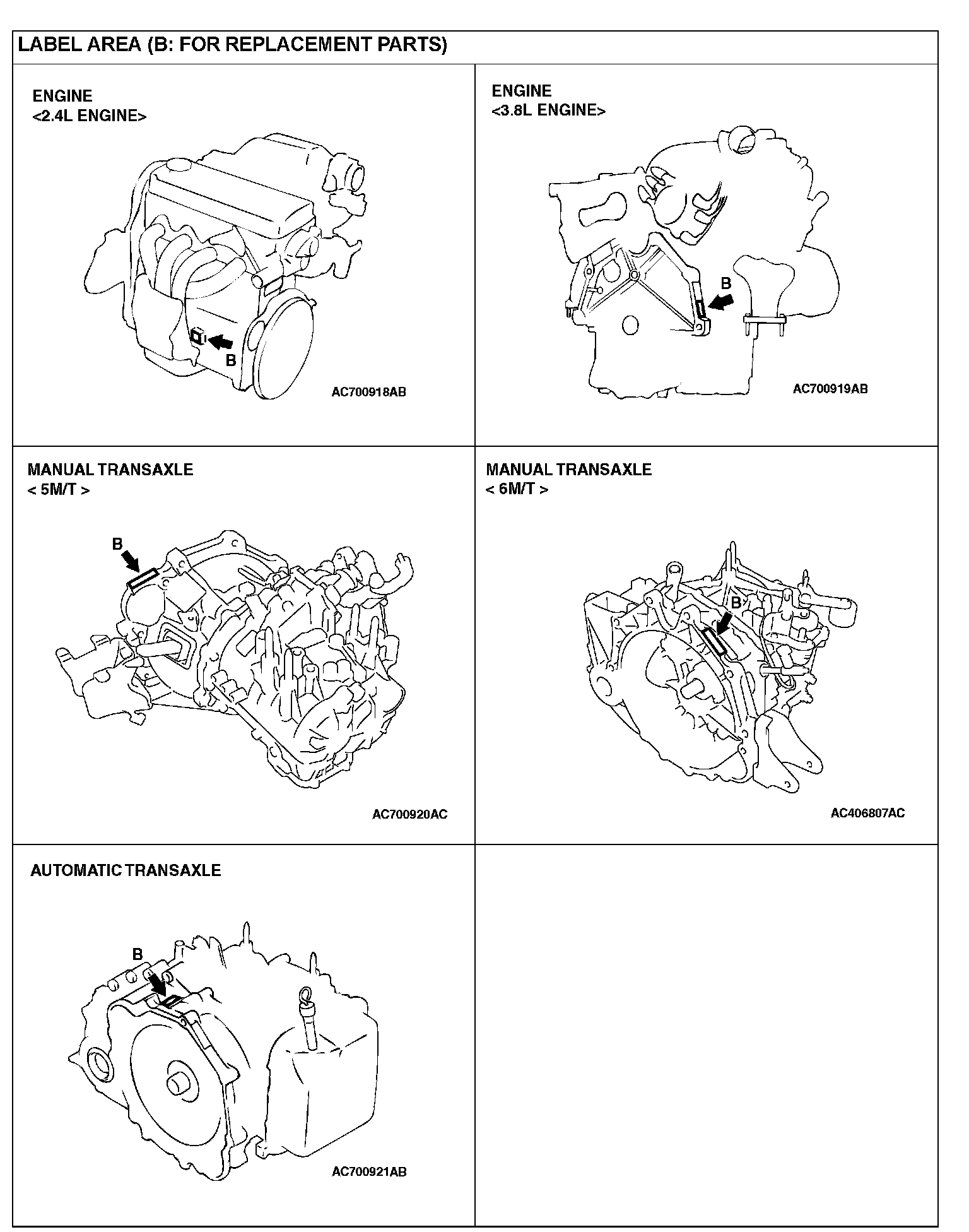

THEFT PROTECTION

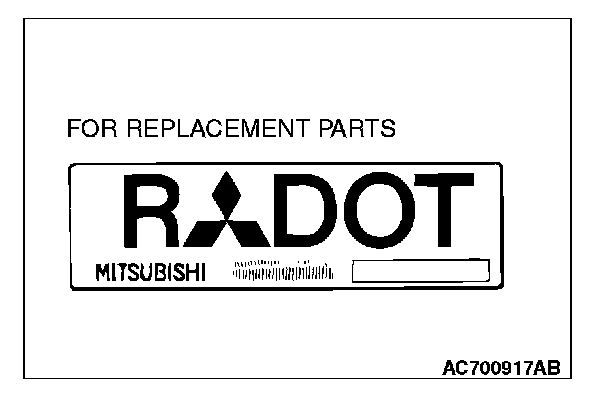

The mark in the illustration is stamped to replacement ports for the engine and the transaxle.

LOCATIONS
