Remote Switch: Service and Repair

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

REMOVAL AND INSTALLATION

WARNING:
- Before removing the air bag module, refer to SRS, Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the steering wheel, do not let it bump against the air bag module.

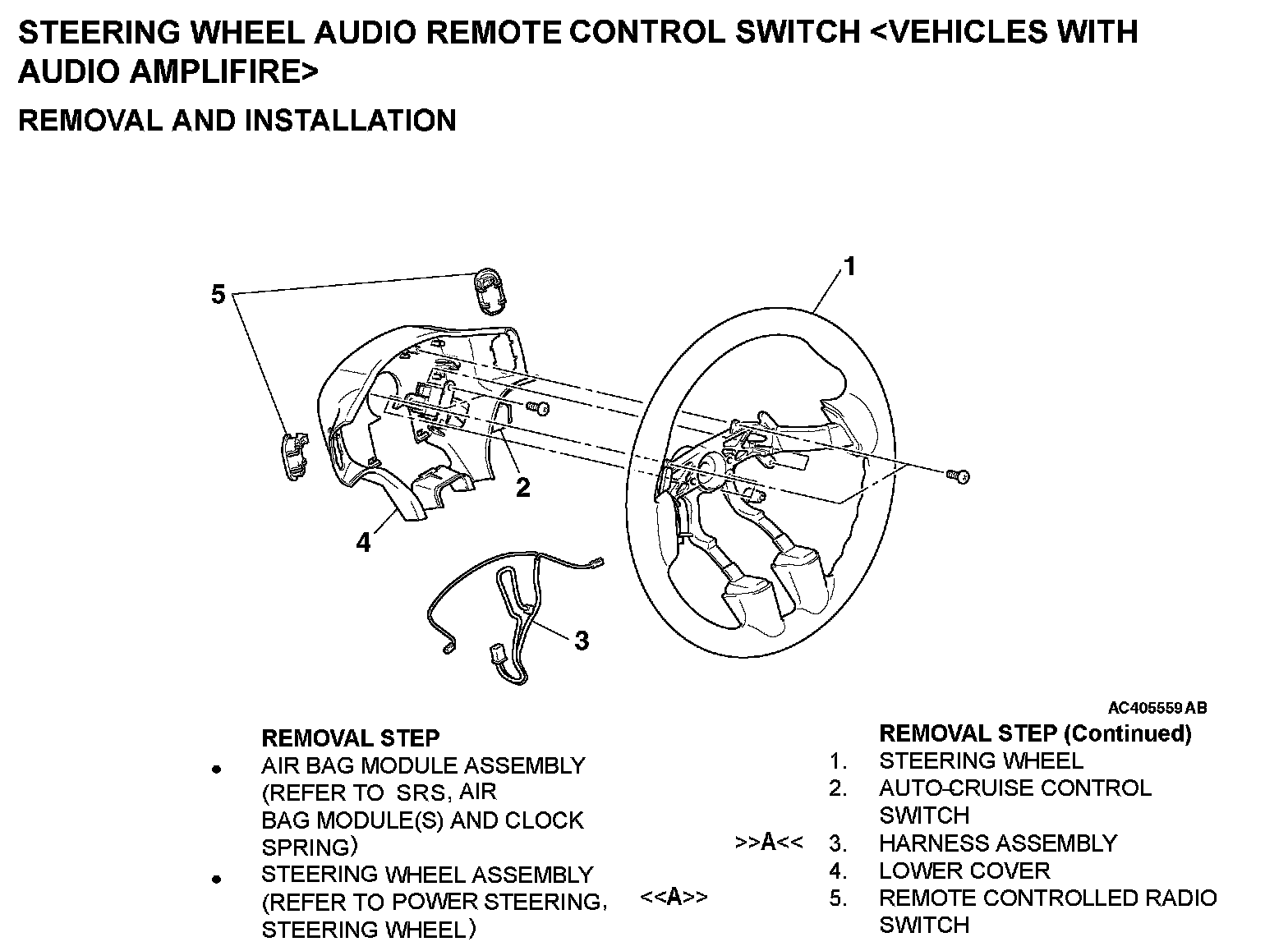

Removal Steps 1-5:

REMOVAL SERVICE POINT

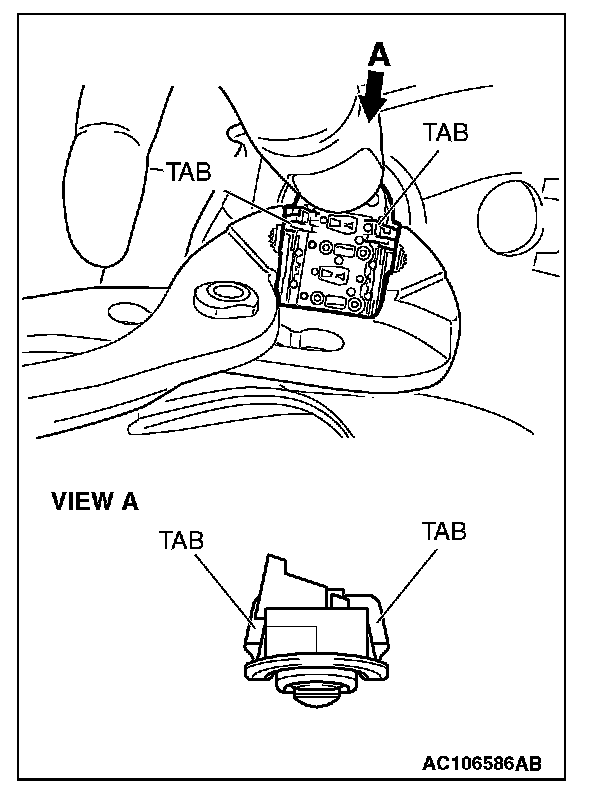

[[A]] REMOTE CONTROLLED RADIO SWITCH REMOVAL




Use a tool to hold the tabs on the remote controlled radio switch, and push out the switch with your finger.

INSTALLATION SERVICE POINT

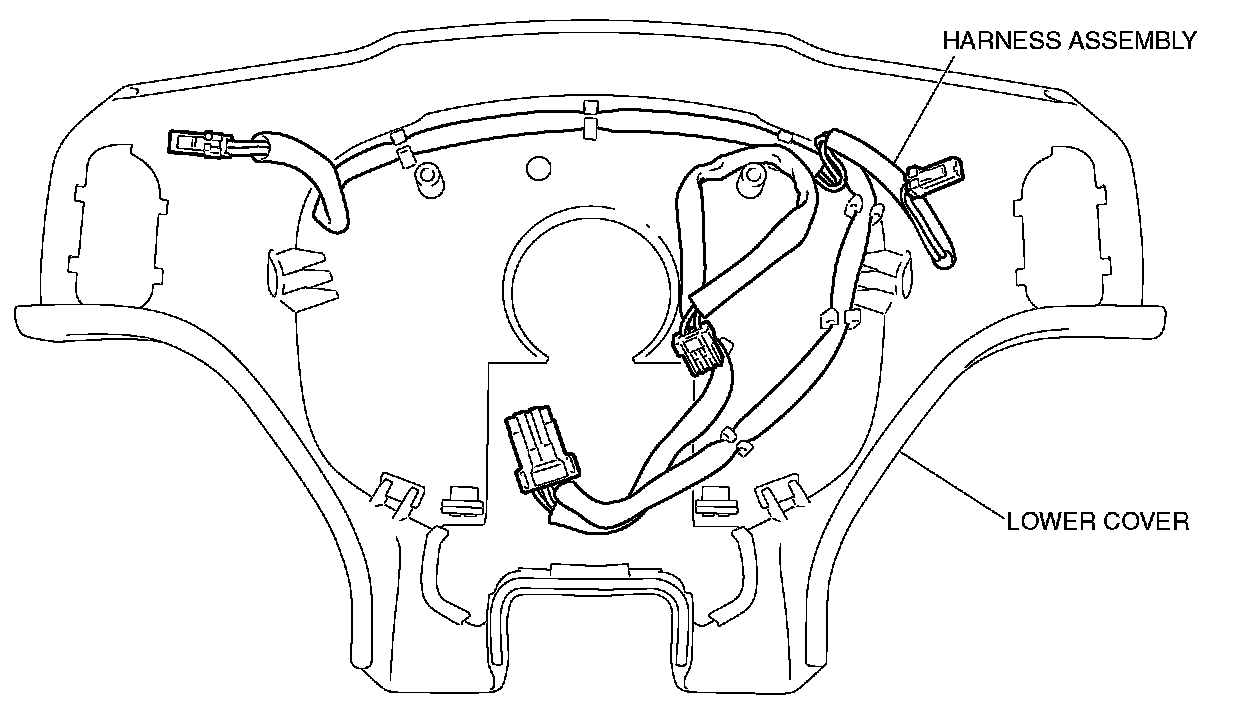

]]A[[ HARNESS ASSEMBLY INSTALLATION
Attach the harness assembly to the position shown in the illustration.
