Speaker: Service and Repair

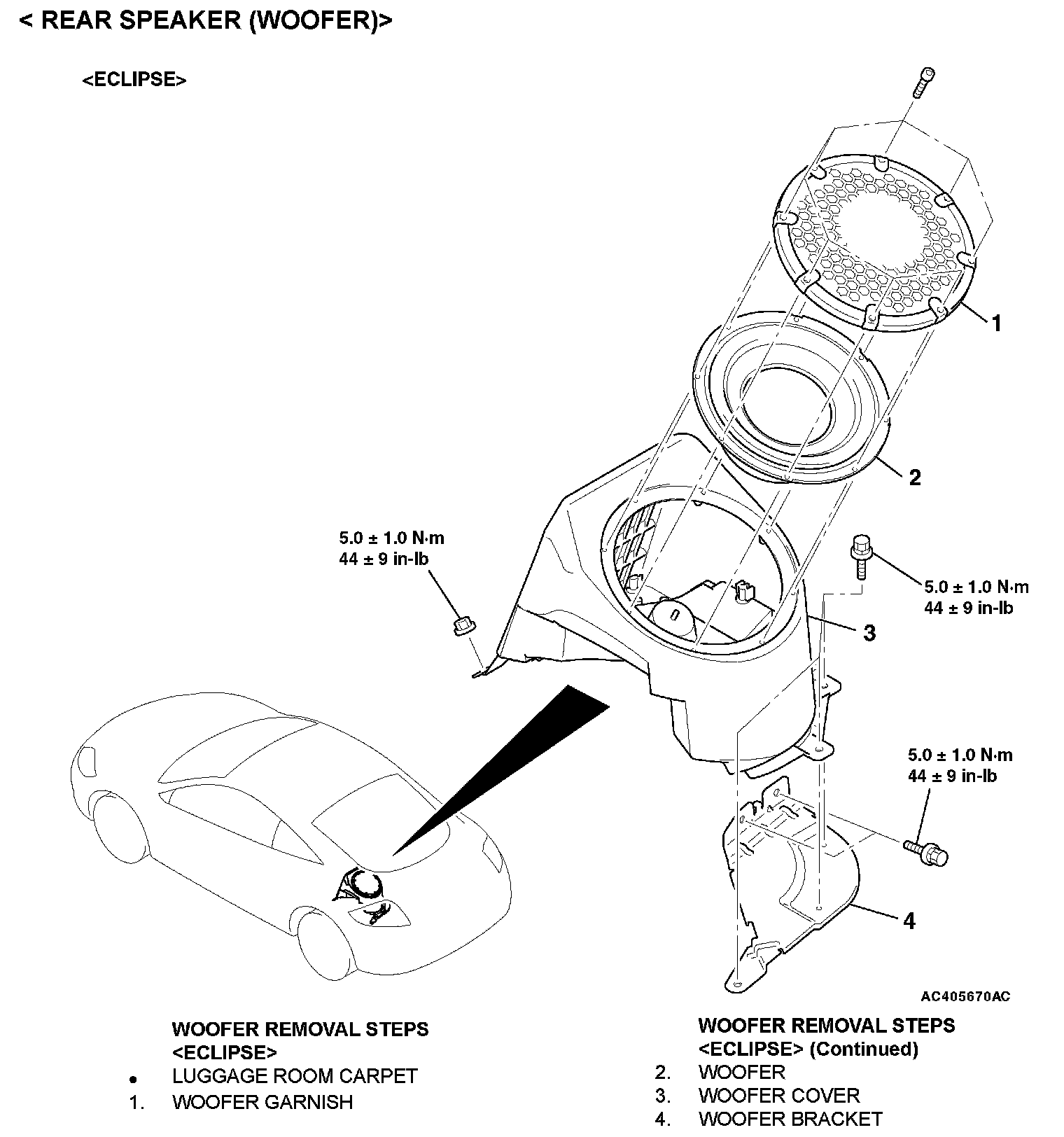

Removal Steps 1-6:

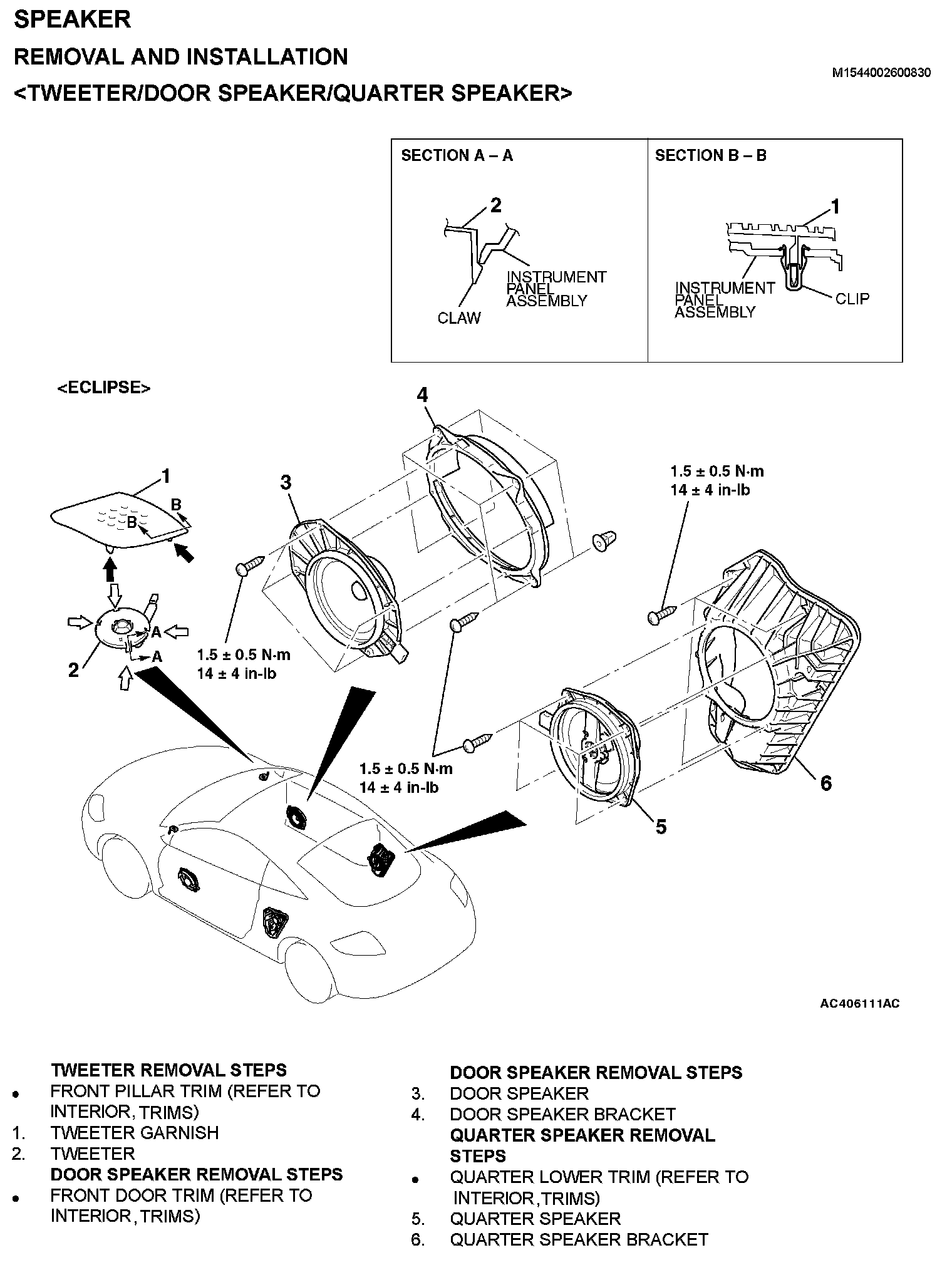

Removal Steps 1-6:

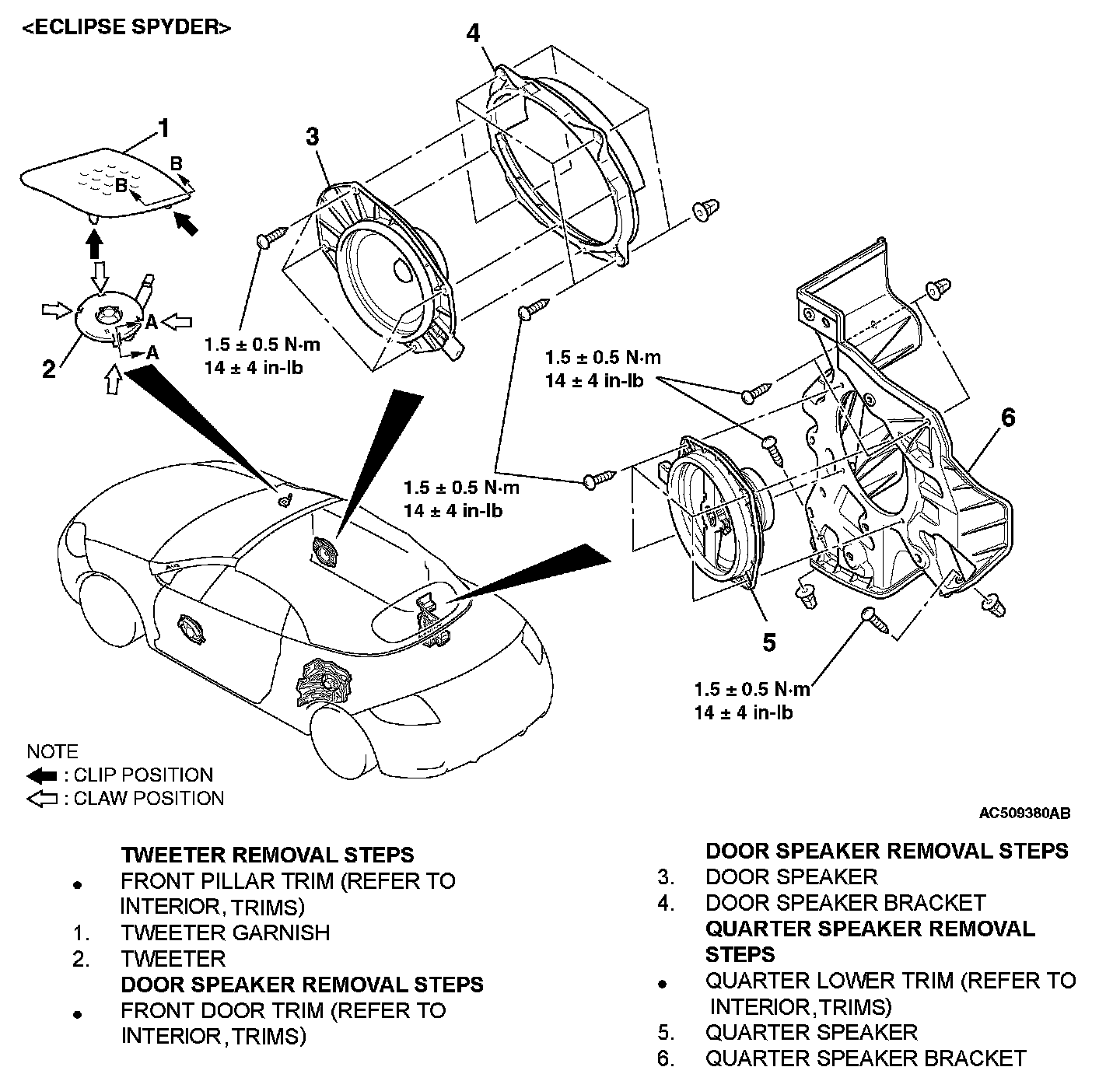

Removal Steps 1-4:

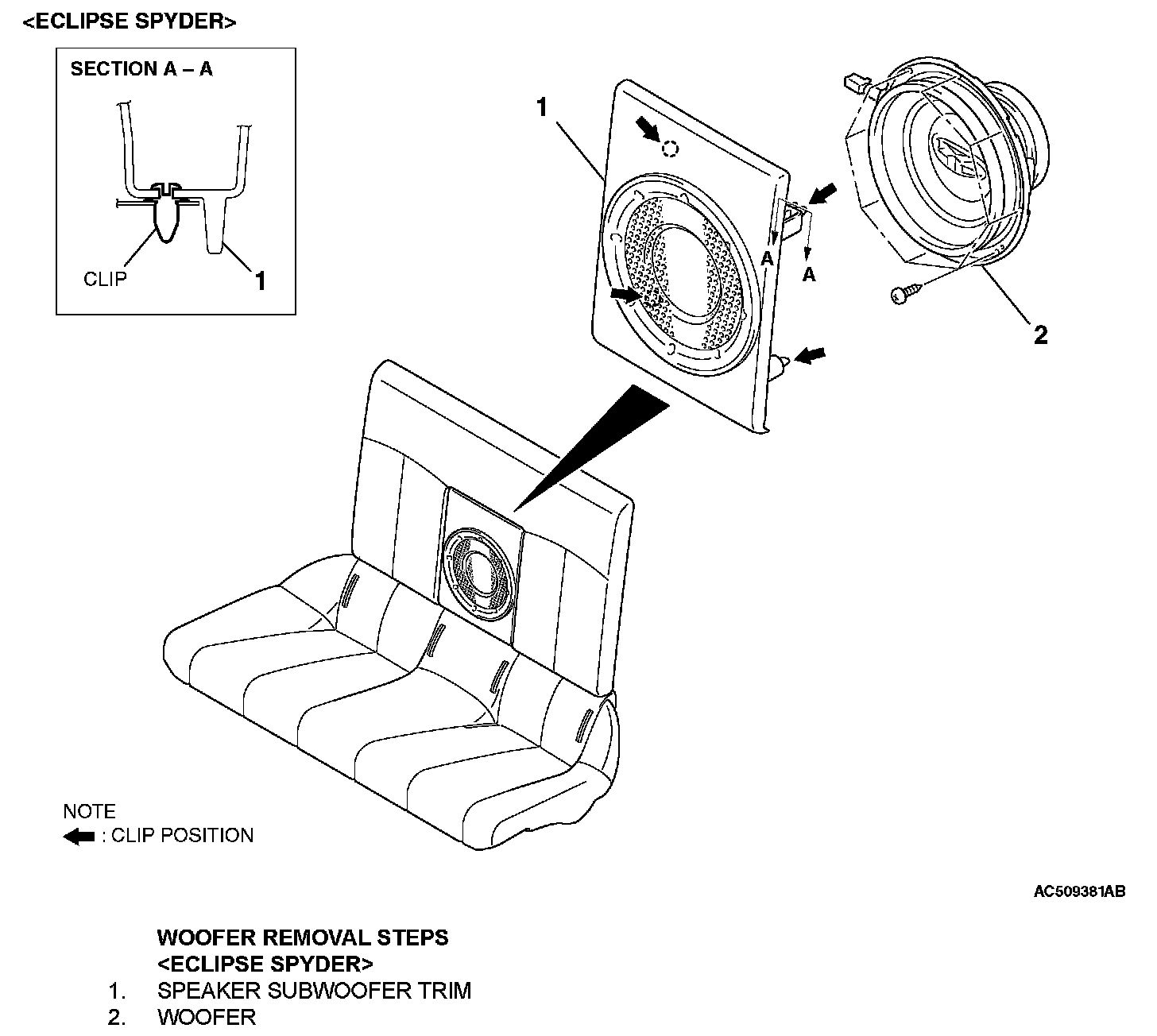

Removal Steps 1-2:
