Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Service and Repair

Radio, Stereo, and Compact Disc: Service and Repair

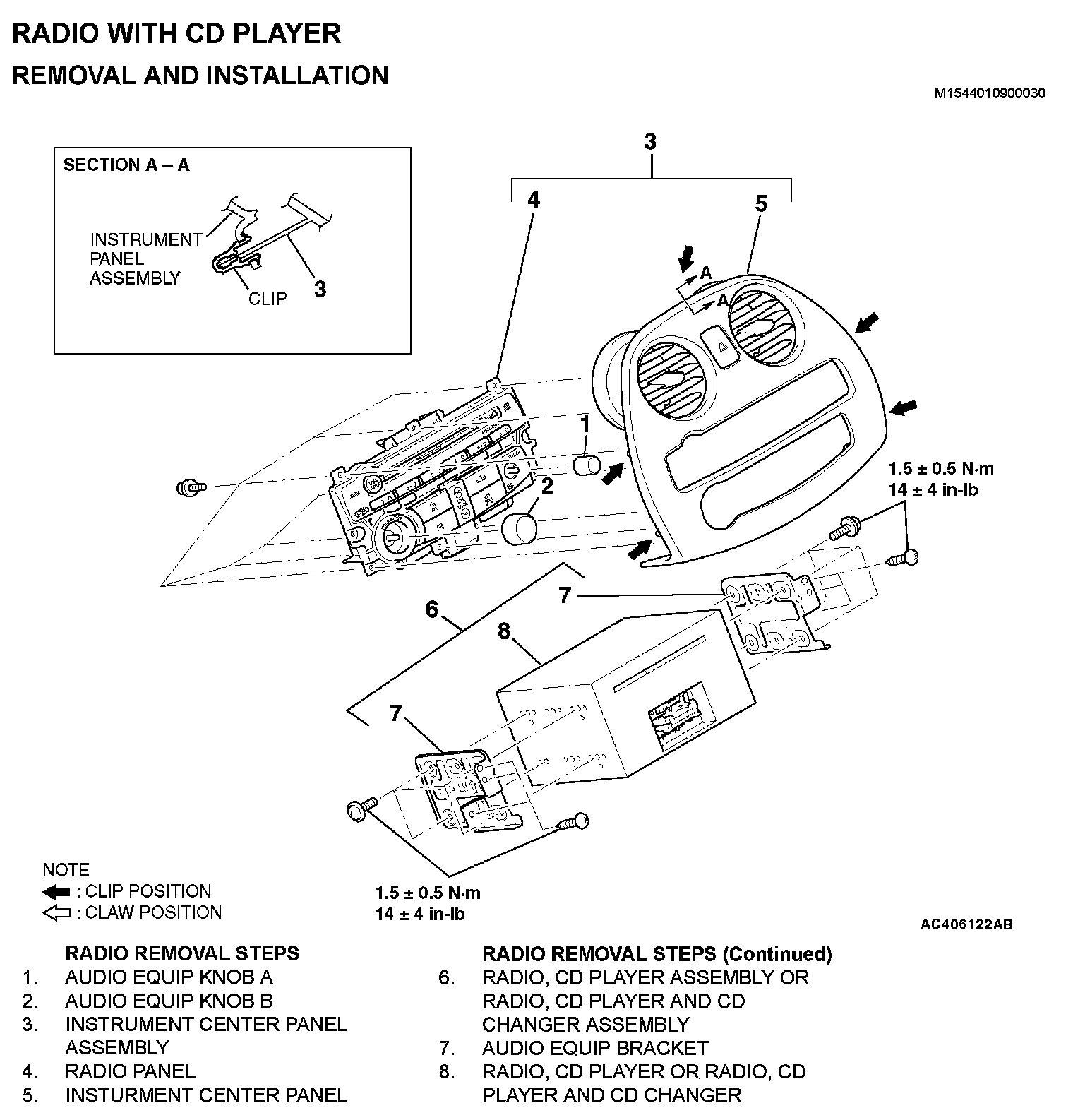

Removal Steps 1-8:
