Pinout Values and Diagnostic Parameters

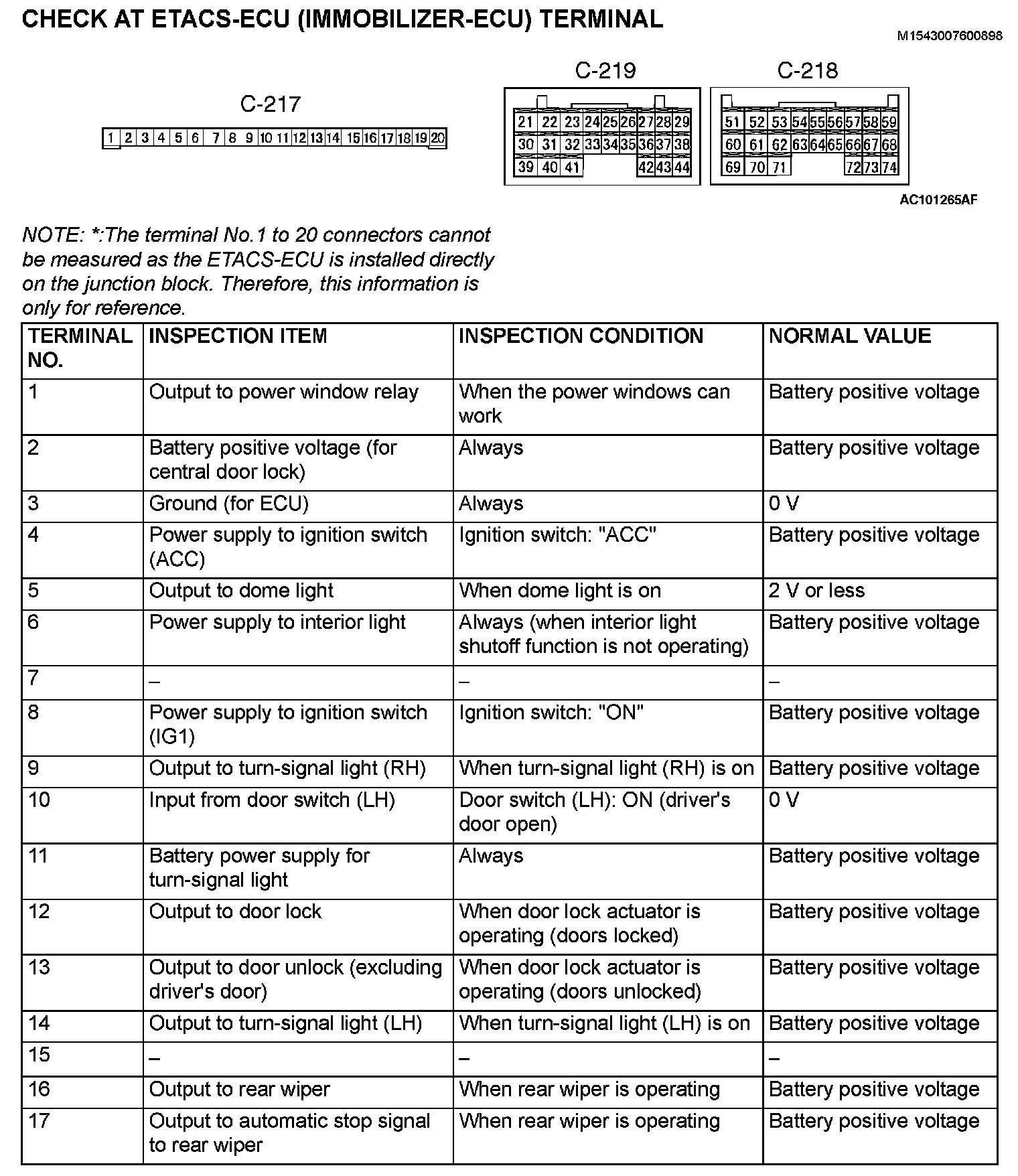

Check AT ETACS-ECU (Immobilizer-ECU) Terminal (Part 1):

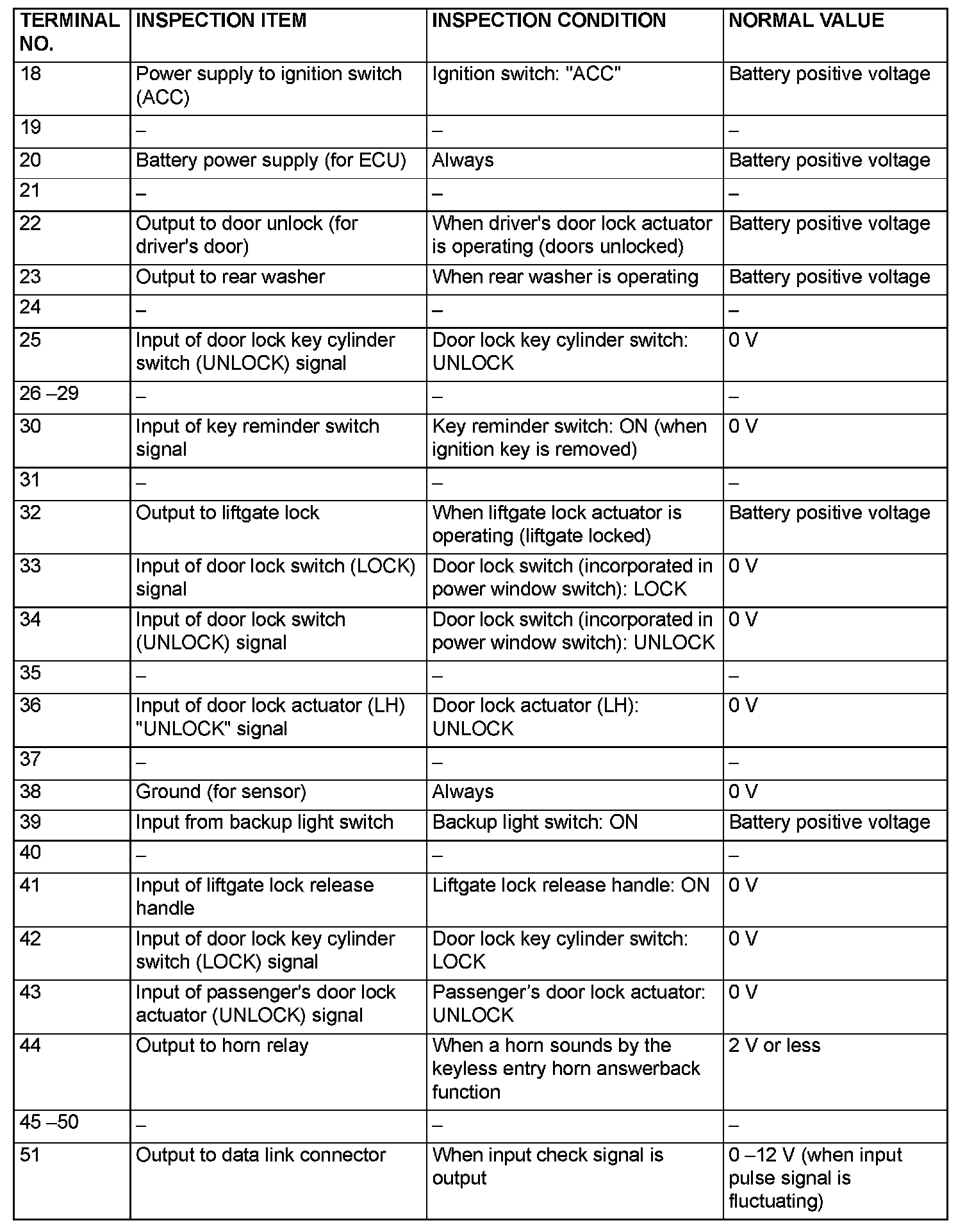

Check AT ETACS-ECU (Immobilizer-ECU) Terminal (Part 2):



Check AT ETACS-ECU (Immobilizer-ECU) Terminal (Part 3):
