Home >> Mitsubishi >> 2008 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Supplemental Restraint System (SRS)

Supplemental Restraint System (SRS)

B1400-B1419:

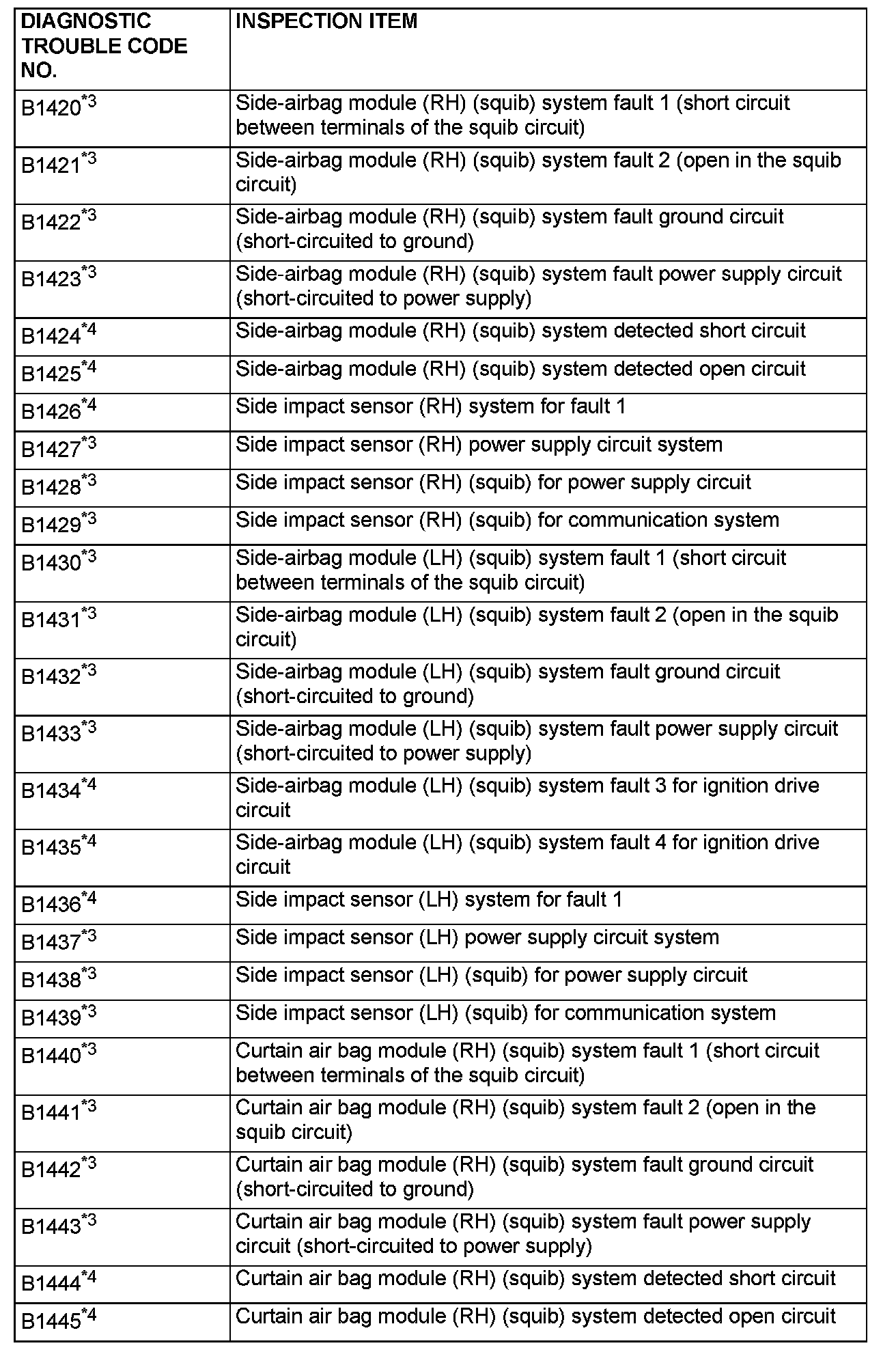

B1420-B1445:

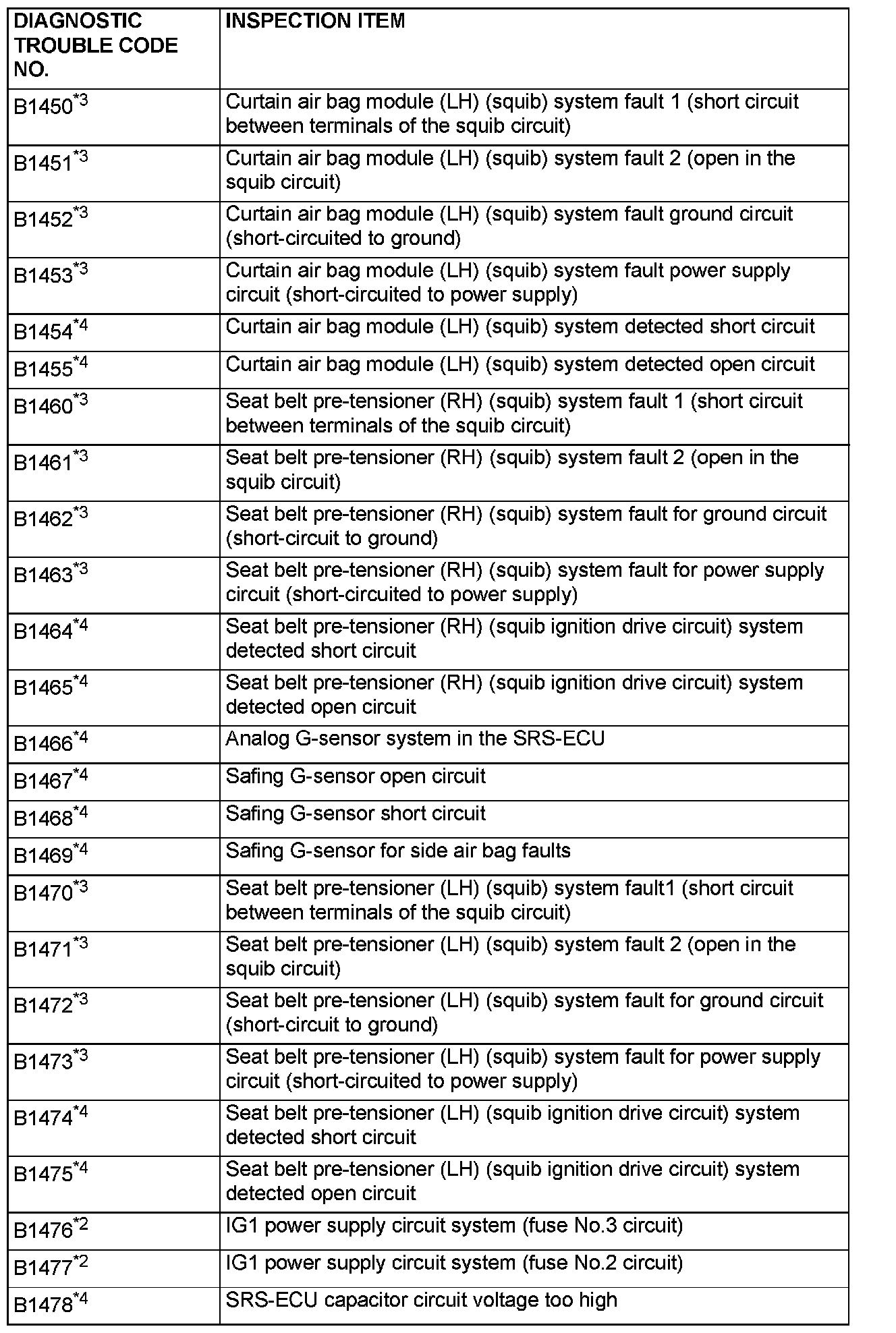

B1450-B1478:

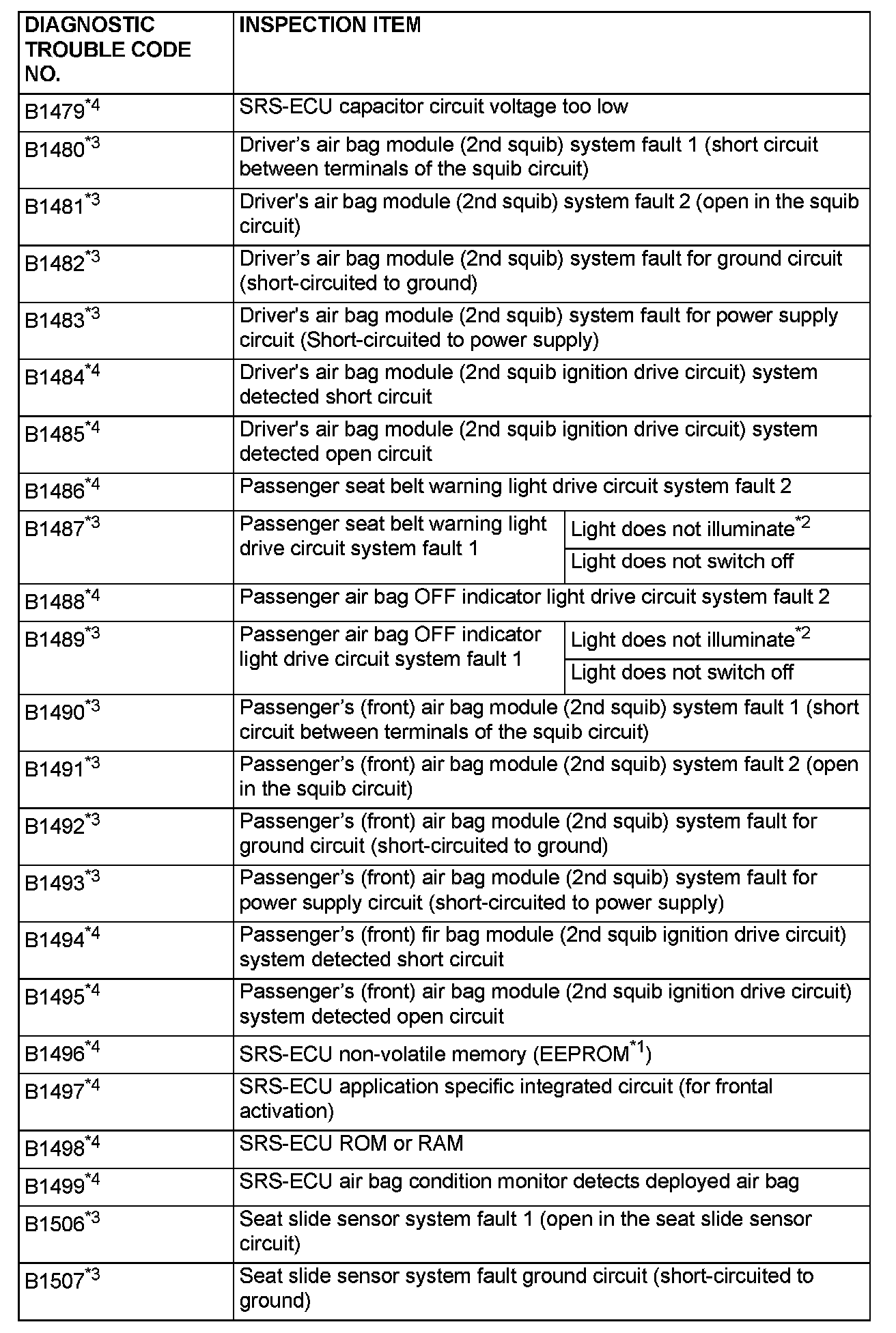

B1479-B1507:

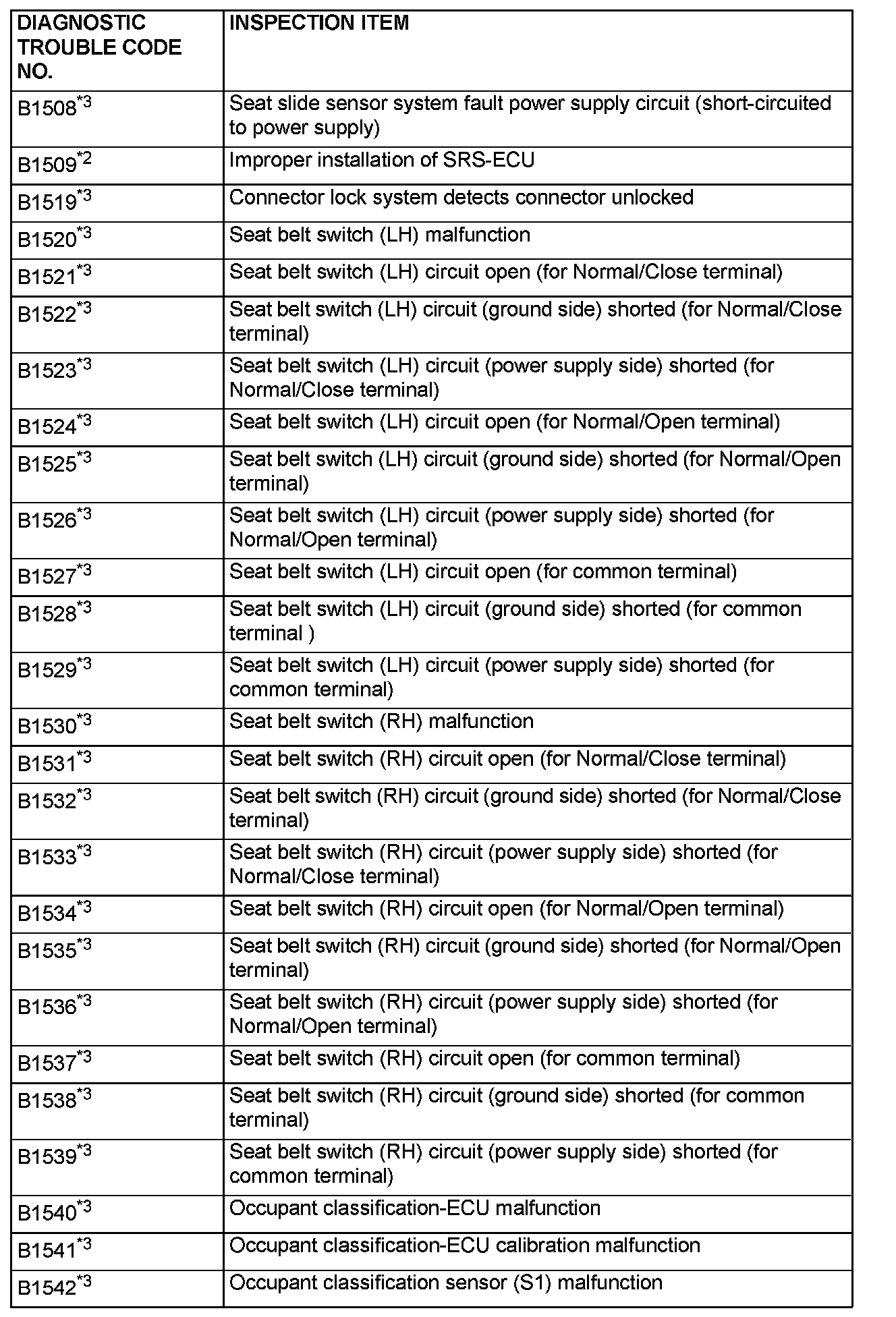

B1508-B1542:

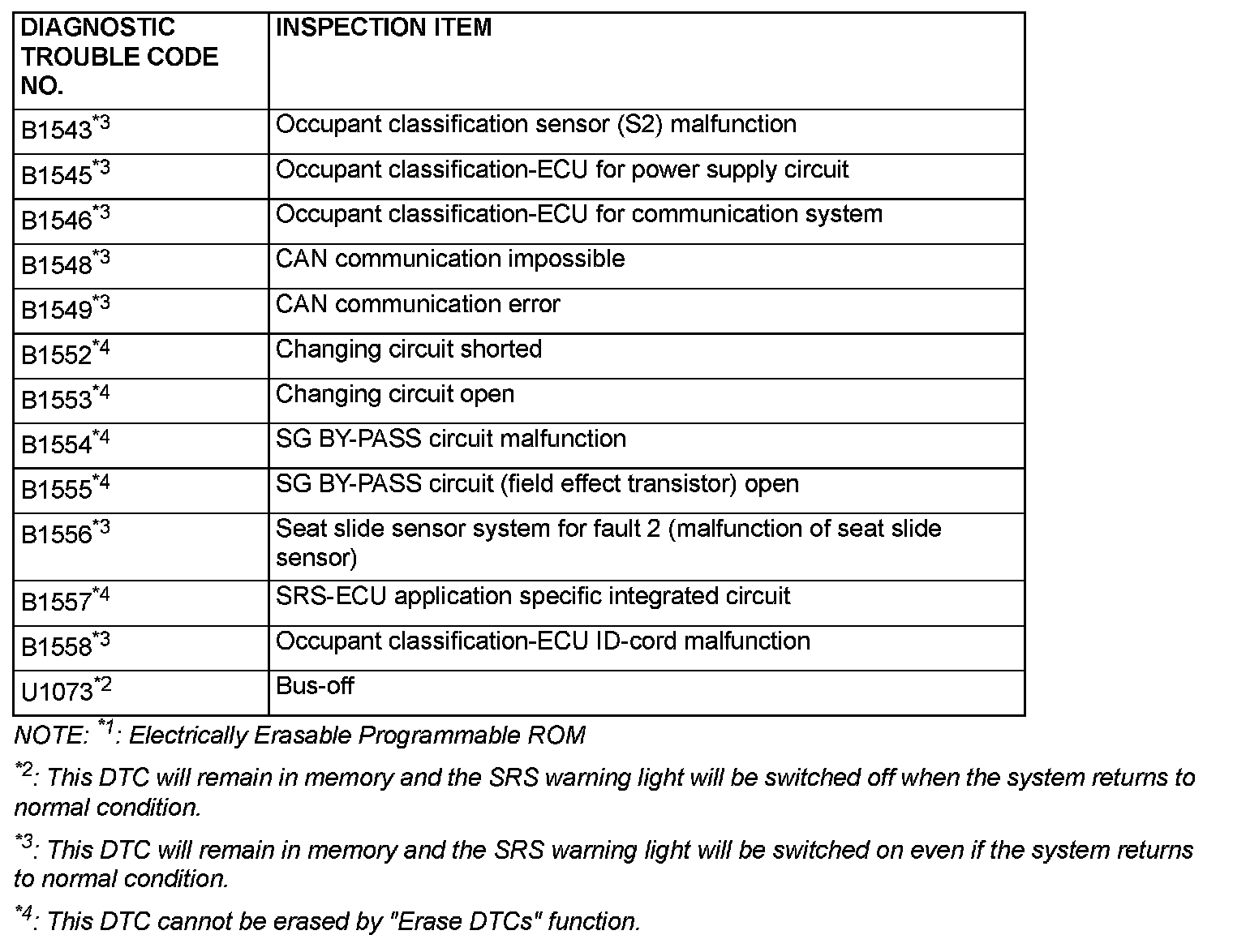

B1543-B1558 / U1073:
