Front Door Window Glass Weatherstrip: Service and Repair
WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIPREMOVAL AND INSTALLATION

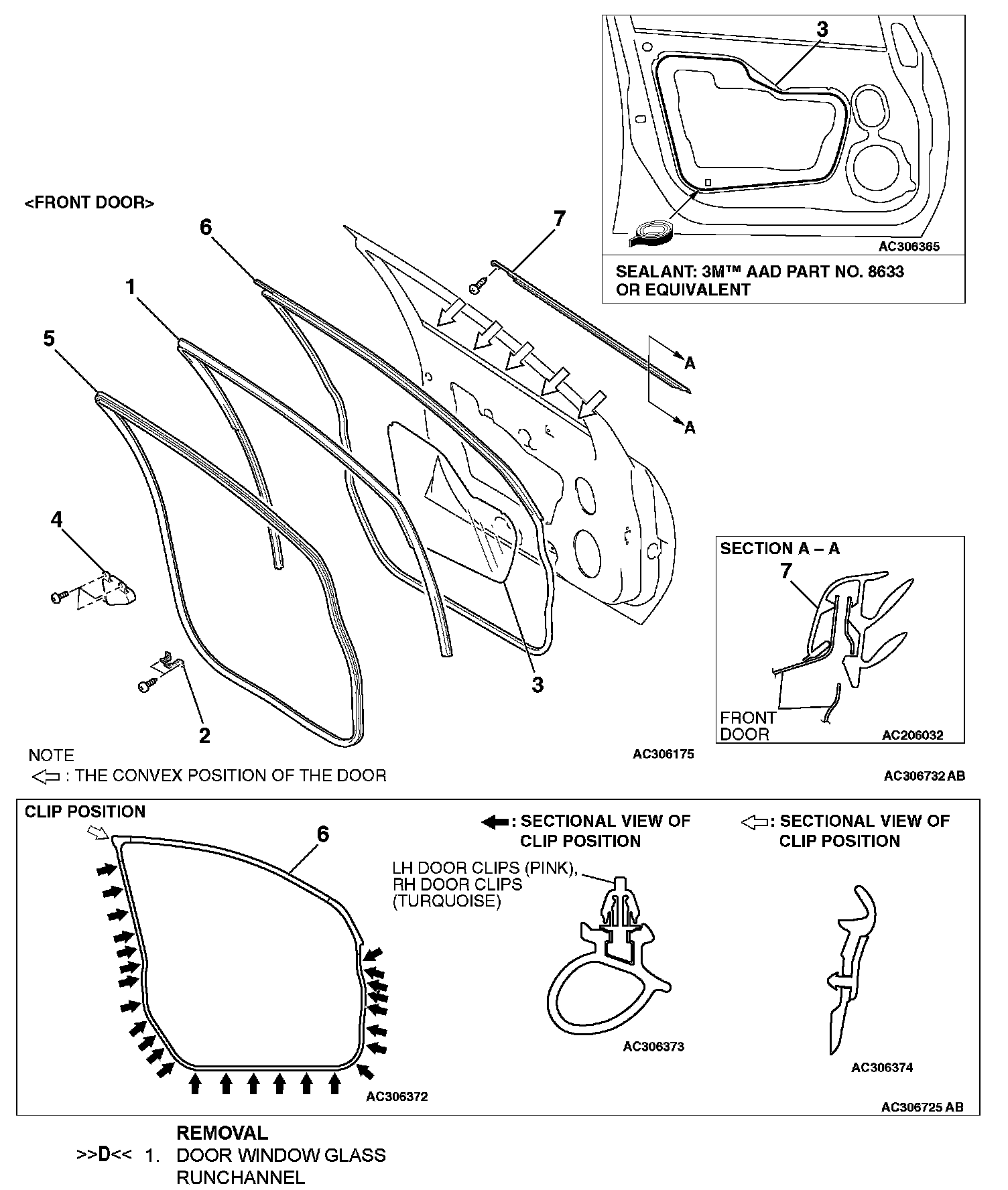

Removal Steps 1-7 (Part 1):

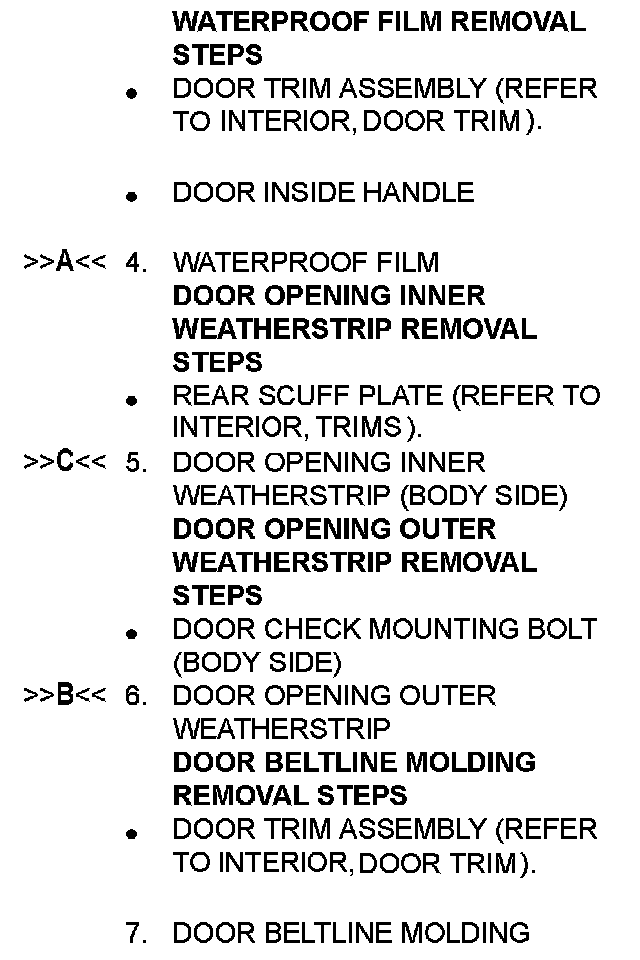

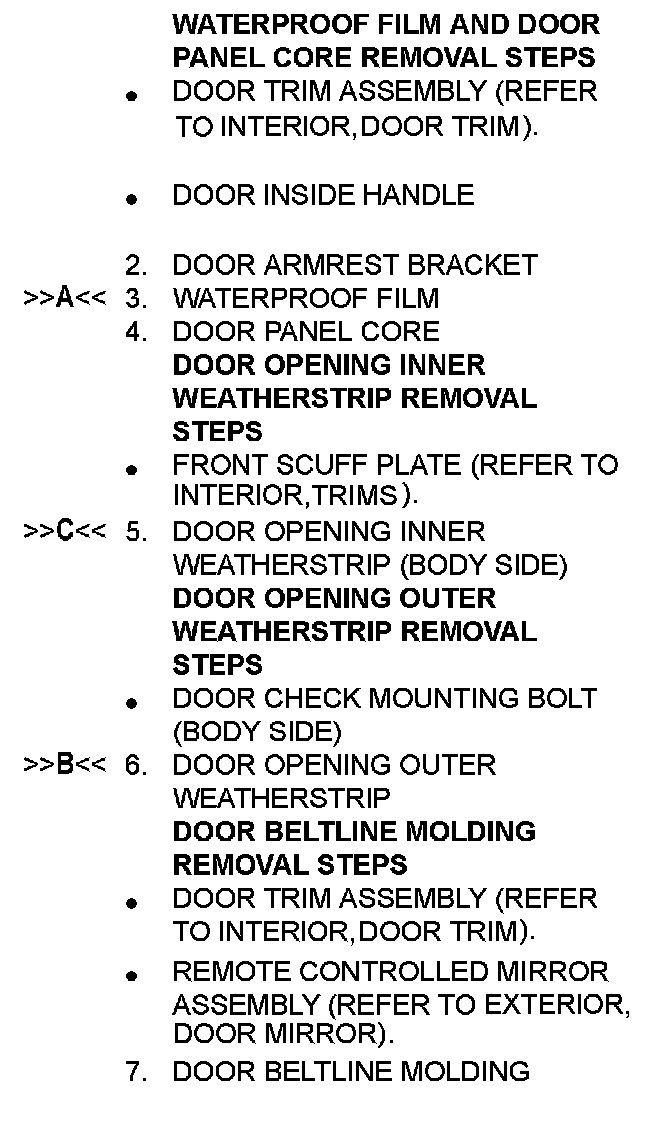

Removal Steps 1-7 (Part 2):

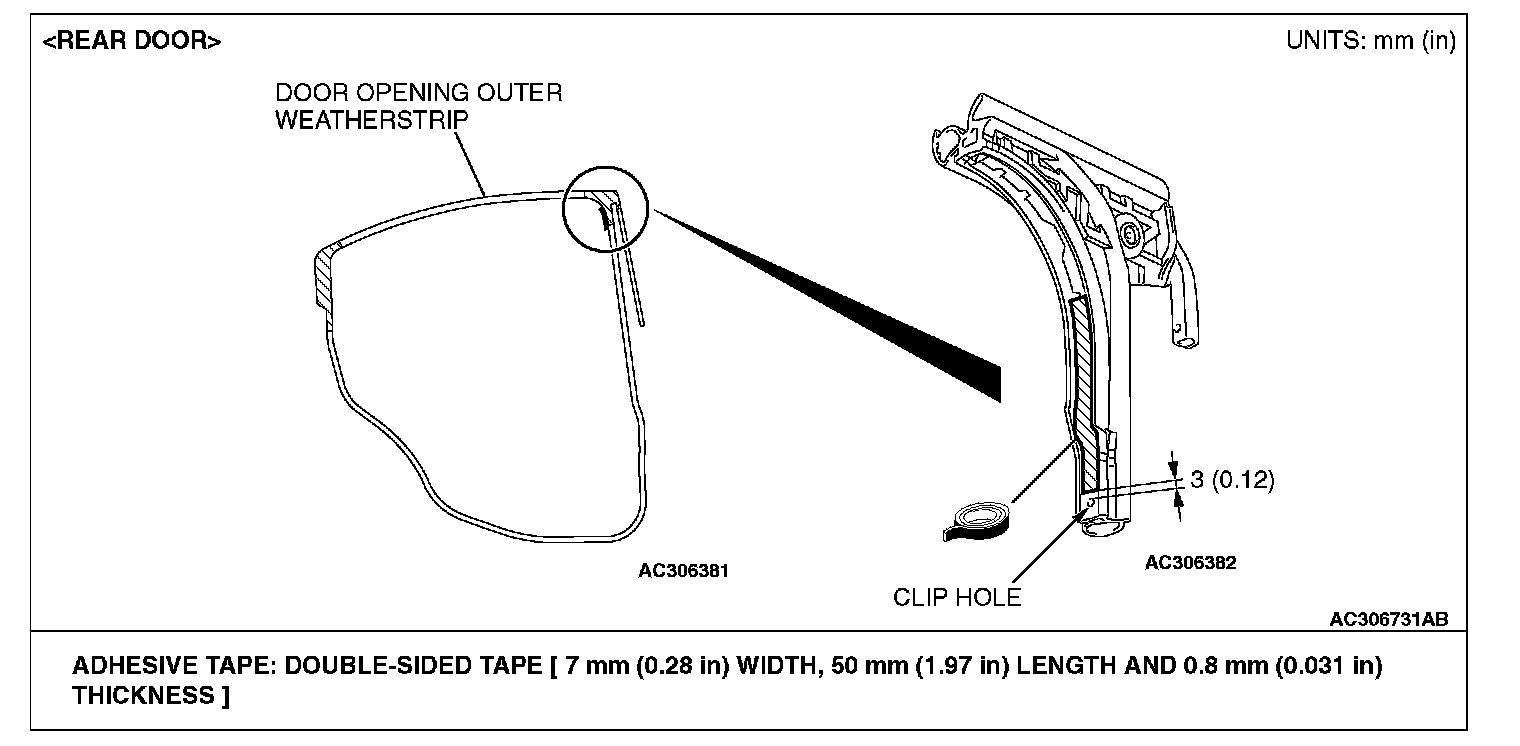

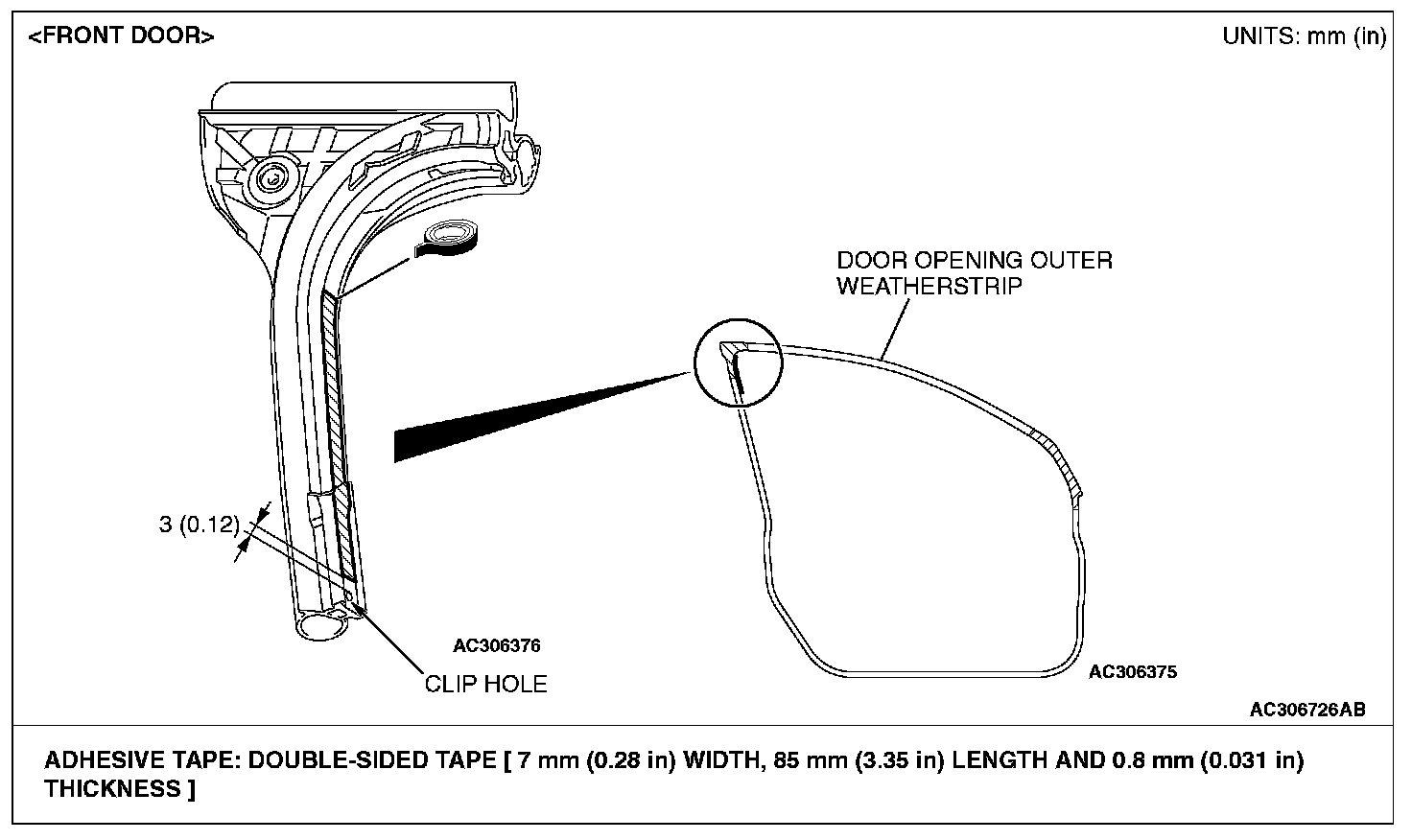

Double-sided Tape Position:

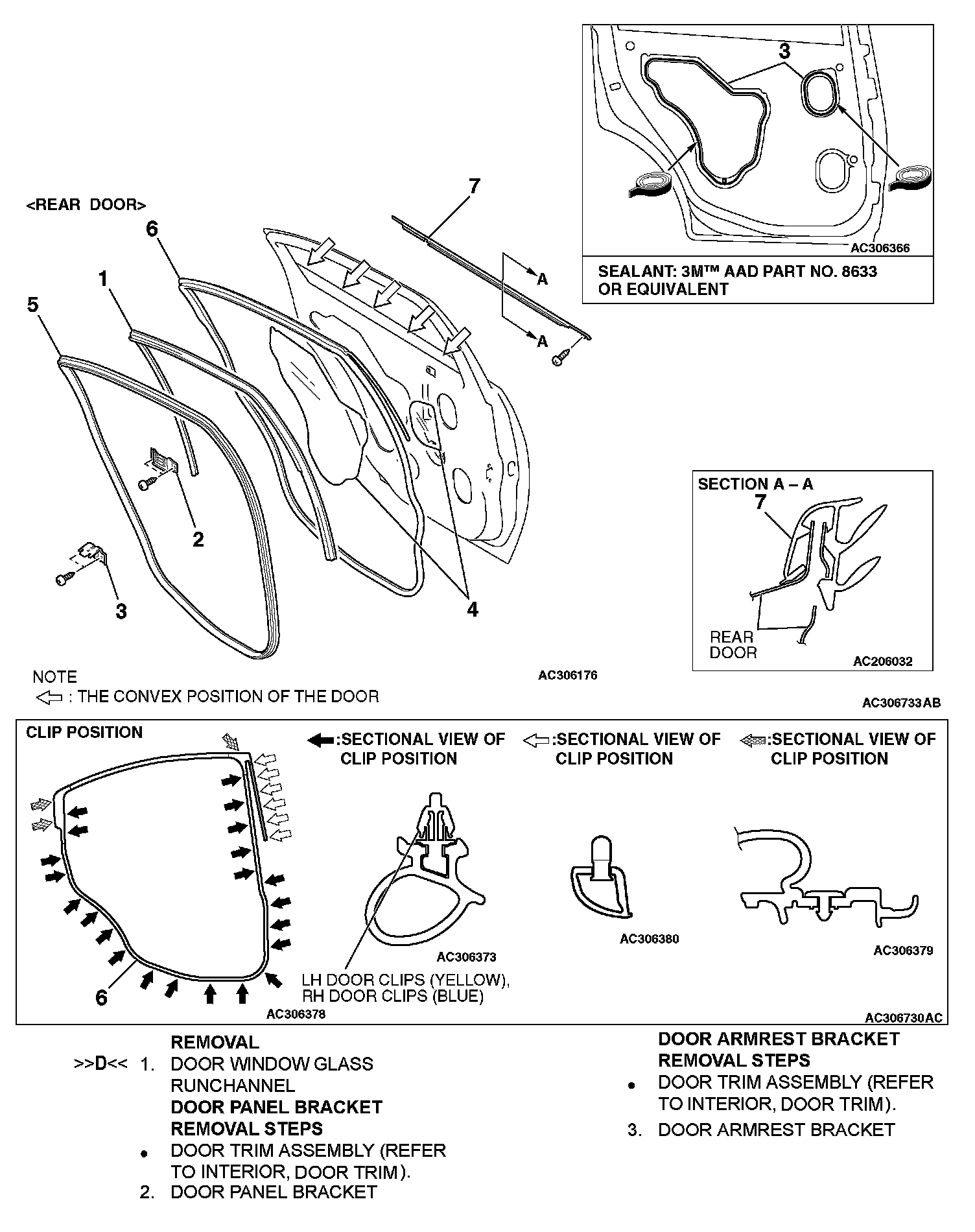

Removal Steps 1-7 (Part 1):
Removal Steps 1-7 (Part 2):
Double-Sided Tape Position:
INSTALLATION SERVICE POINTS

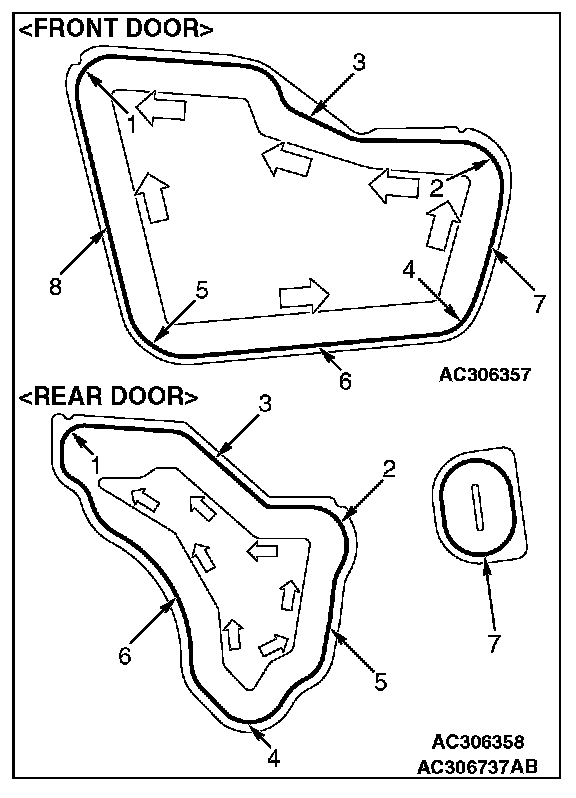

]]A[[ WATERPROOF FILM INSTALLATION
CAUTION: When the waterproof film is adhered, be careful that 3M(TM) AAD Part number 8633 or equivalent can pass under the inner panel water drain hole.
1. Stick the waterproof film to the door in sequence as shown.
2. Press the waterproof film toward the arrow in the illustration.

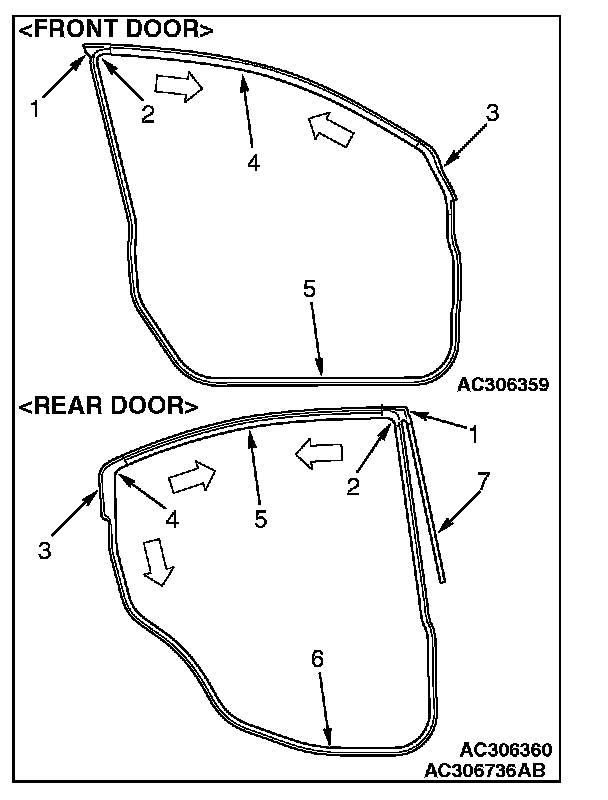

]]B[[ DOOR OPENING OUTER WEATHERSTRIP INSTALLATION
Install the door opening outer weatherstrip in the sequence shown.

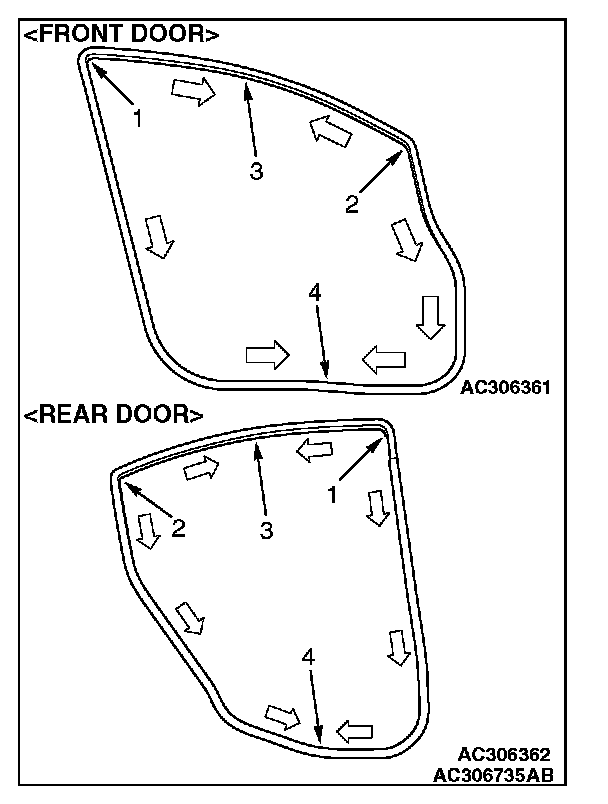

]]C[[ DOOR OPENING INNER WEATHERSTRIP INSTALLATION
Install the door opening inner weatherstrip in the sequence shown.

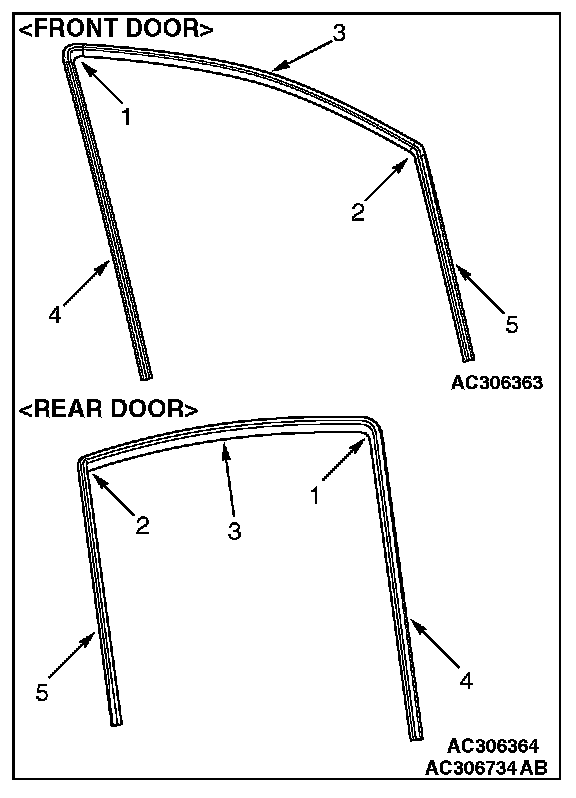

]]D[[ DOOR WINDOW GLASS RUNCHANNEL INSTALLATION
Install the door window glass runchannel in the sequence shown.
