Direct Planetary Carrier
DIRECT PLANETARY CARRIERDISASSEMBLY AND ASSEMBLY
Disassembly Steps 1-10:
Required Special Tools:
* MD998812: Installer Cap
* MD998813: Installer 100
* MD998824: Installer Adapter (50)
* MD998834: Special Spanner
* MD998917: Bearing remover
DISASSEMBLY SERVICE POINTS

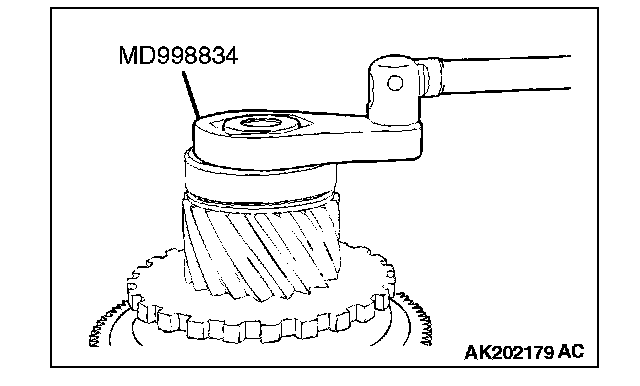

<> LOCK NUT REMOVAL

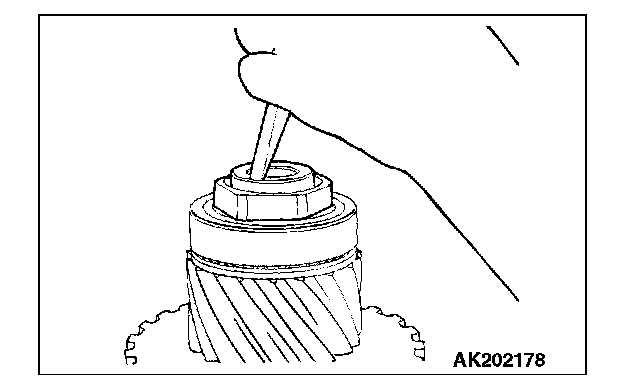

1. Unstake staking of the lock nut.
2. Using special tool MD998834 to remove the lock nut.

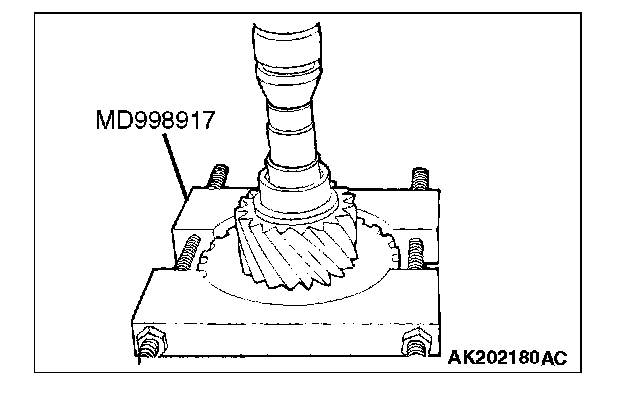

<> OUTPUT GEAR/PARKING GEAR REMOVAL
Using special tool MD998917 to remove the output gear and parking gear.
<

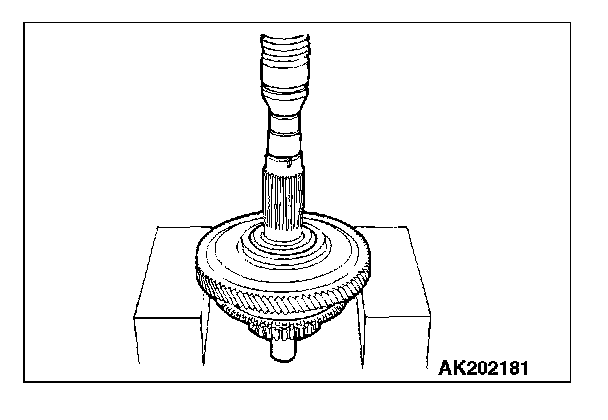

1. Support the transfer driven gear as shown in the illustration.
2. Push the shaft of the direct planetary carrier to remove the taper roller bearing and gear.
<

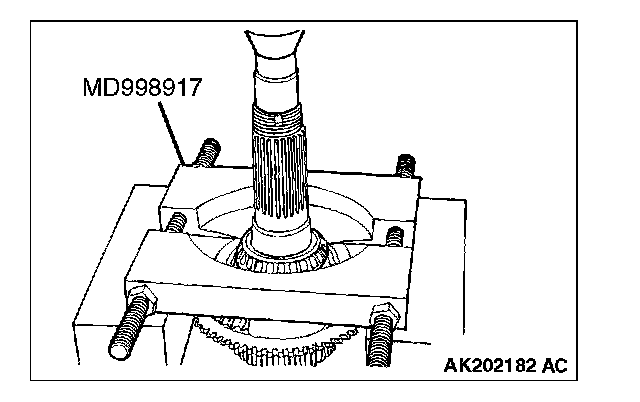

1. Support the transfer driven gear as shown in the illustration.
2. Using special tool MD998917 to remove the taper roller bearing.
ASSEMBLY SERVICE POINTS

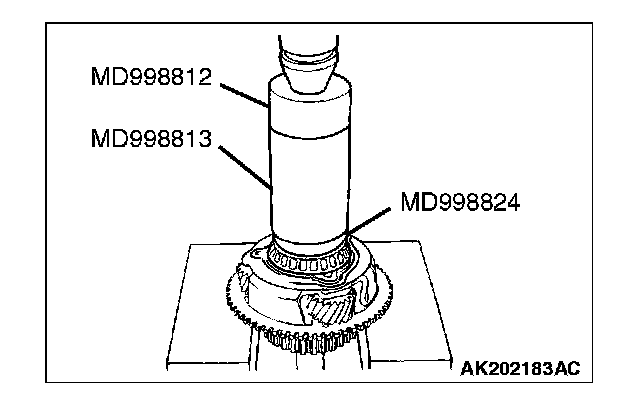

>>A<< TAPER ROLLER BEARING INSTALLATION
1. Set the transfer driven gear as shown in the illustration.
2. Using special tools MD998812, MD998813 and MD998824, press in the taper roller bearing.

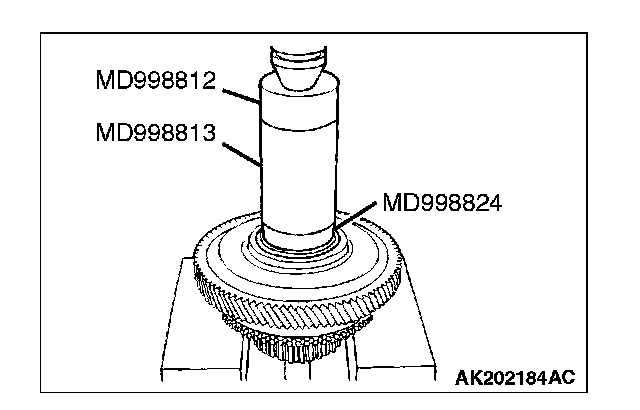

>>B<< TAPER ROLLER BEARING INSTALLATION
1. Set the transfer driven gear as shown in the illustration.
2. Using special tools MD998812, MD998813 and MD998824, press in the taper roller bearing.
>>C<< OUTPUT GEAR/PARKING GEAR INSTALLATION
1. Using special tools MD998812 and MD998824, press in the parking gear.

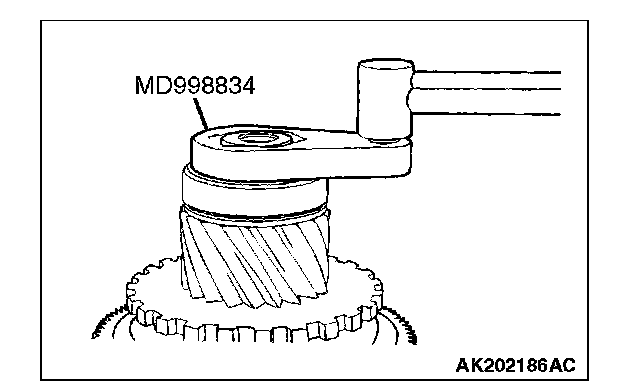

>>D<< LOCK NUT INSTALLATION
1. Apply ATF on a new locknut, and use special tool MD998834 to tighten the specified torque. Then turn back on turn, and tighten to the specified torque.
Tightening torque: 170 ± 10 Nm (125 ± 7 ft-lb)
2. Use a punch to stake the lock nut at two places.
