Home >> Mitsubishi >> 2007 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Application and ID >> F4A4B >> Adjusting Plate, Snap Ring and Spacers >> Thrust Washer (For Adjustment of Input Shaft End Play)

Thrust Washer (For Adjustment of Input Shaft End Play)

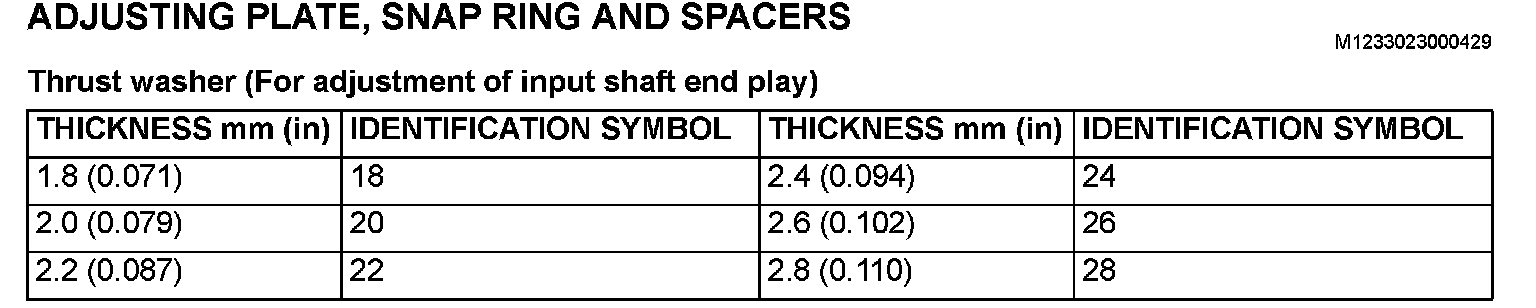

Thrust washer (For adjustment of input shaft end play):
