Snap Ring (For Adjustment of Underdrive Clutch and Overdrive Clutch End Play

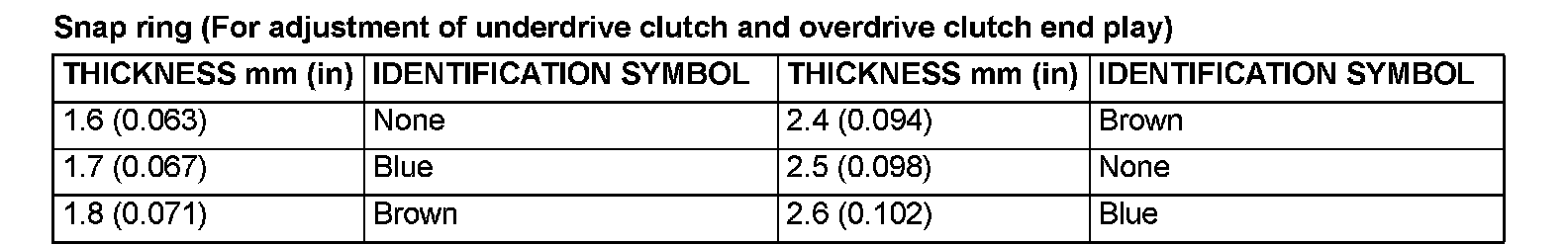

Snap ring (For adjustment of underdrive clutch and overdrive clutch end play (Part 1):

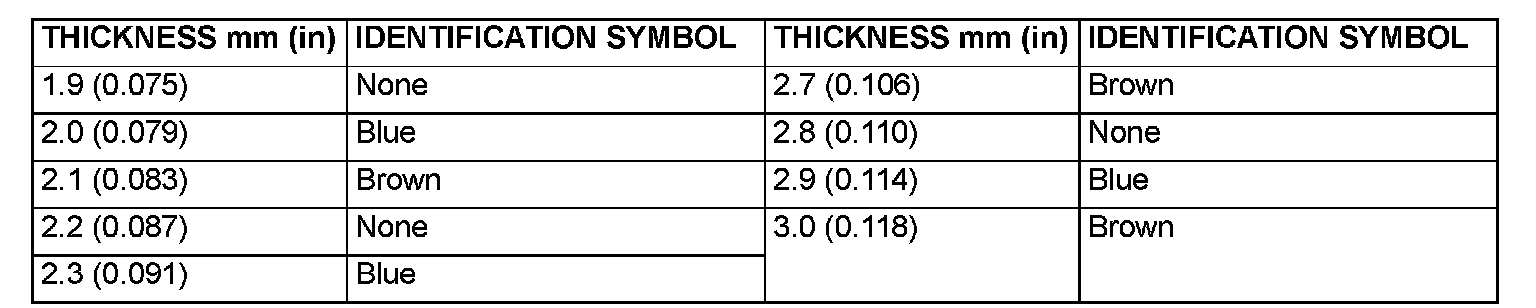

Snap ring (For adjustment of underdrive clutch and overdrive clutch end play (Part 2):
