Steering Wheel: Service and Repair

STEERING WHEEL
REMOVAL AND INSTALLATION

WARNING:
^ Before removing the steering wheel and air bag module assembly, refer to Service Precautions and Air Bag Module and Clock Spring.
^ When removing and installing the steering wheel, do not let it bump against the air bag module.

REMOVAL SERVICE POINTS
[[A]] CONNECTOR (FOR AIR BAG MODULE) REMOVAL

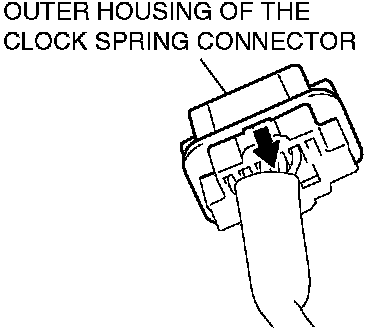

Slide the outer housing of the clock spring connector in the arrow direction shown, and disconnect the connector.

[[B]]STEERING WHEEL ASSEMBLY REMOVAL

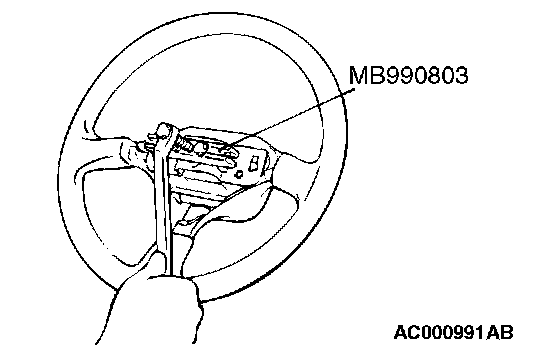

Use special tool MB990803 to remove the steering wheel.
