Removal and Replacement

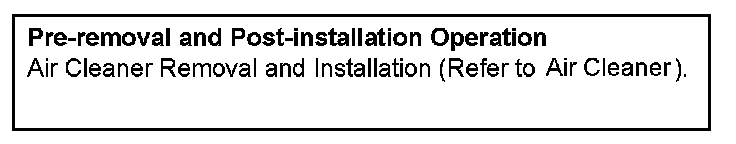

STARTER MOTOR ASSEMBLYPre-removal And Installation Operation:

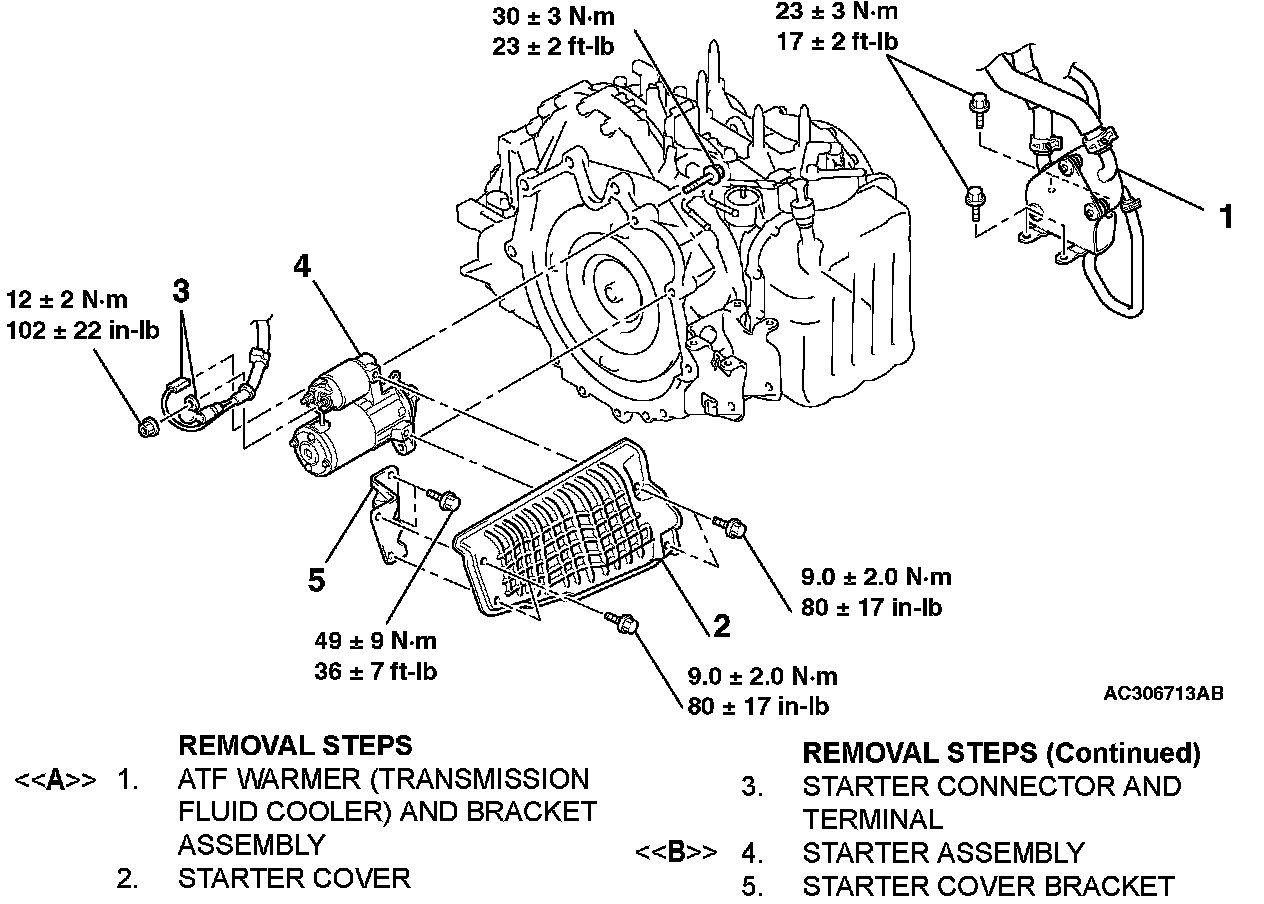

Removal Steps 1-5:
REMOVAL AND INSTALLATION <2.4L ENGINE>
REMOVAL SERVICE POINTS
<> ATF WARMER (TRANSMISSION FLUID COOLER) AND BRACKET ASSEMBLY REMOVAL
With the hose installed, remove the ATF warmer (transmission fluid cooler) and bracket assembly from the transmission case front roll stopper bracket.
<> STARTER ASSEMBLY REMOVAL
Remove the starter assembly from the side of ATF warmer (transmission fluid cooler).
