Auxiliary Power Outlet: Service and Repair

ACCESSORY SOCKET

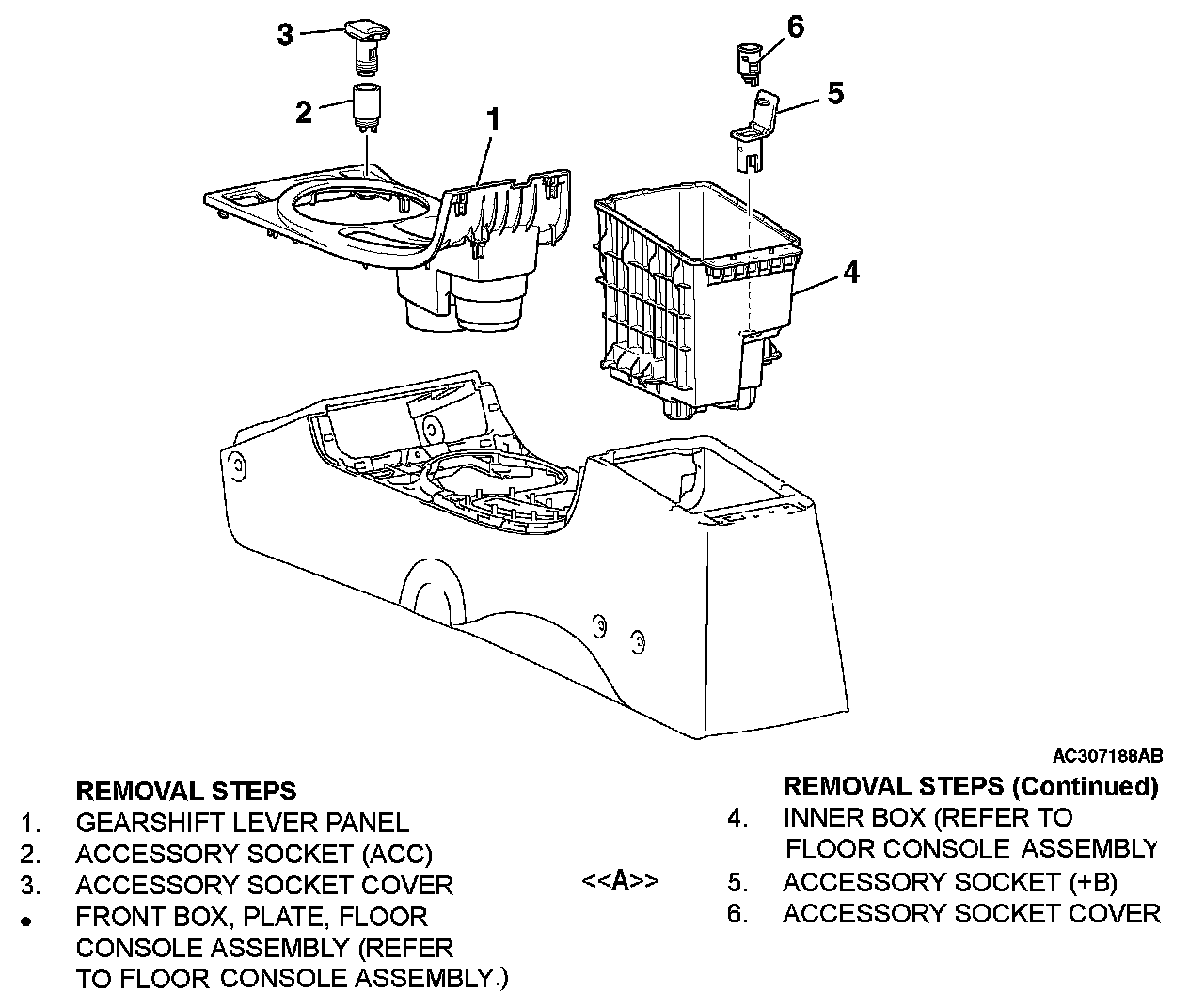

Removal Steps 1-6:




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




<> ACCESSORY SOCKET REMOVAL

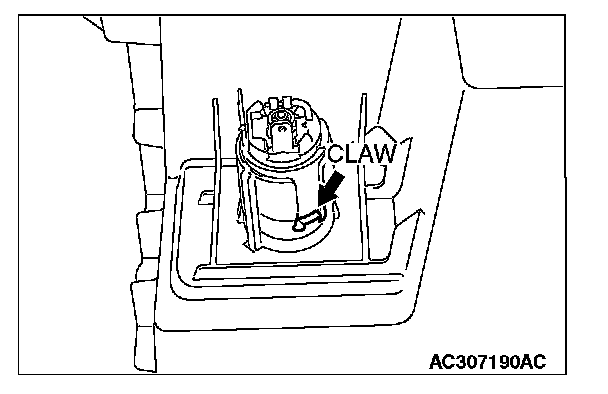

Disengage the claw shown in the illustration and remove the accessory socket.
