Variable Induction Control Solenoid: Testing and Inspection

INSPECTION VARIABLE AIR INTAKE SOLENOID CHECK

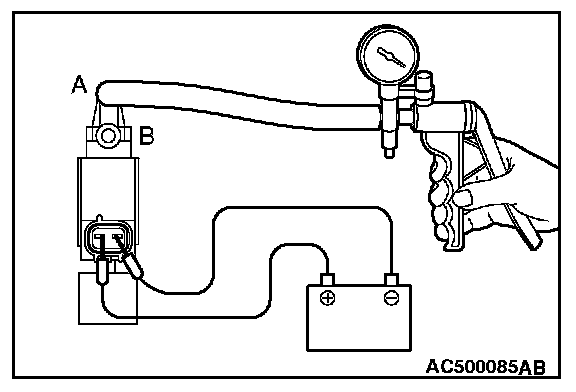

1. Connect a hand vacuum pump to nipple (A) of the solenoid.

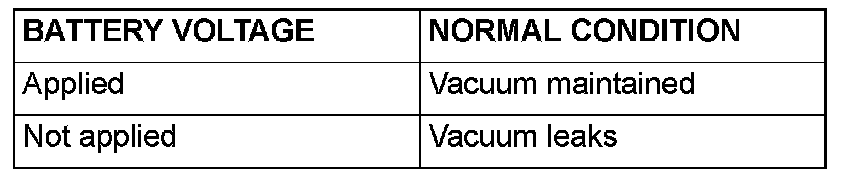

2. Check air tightness by applying a vacuum with voltage applied directly from the battery to the variable air intake solenoid and without applying voltage.

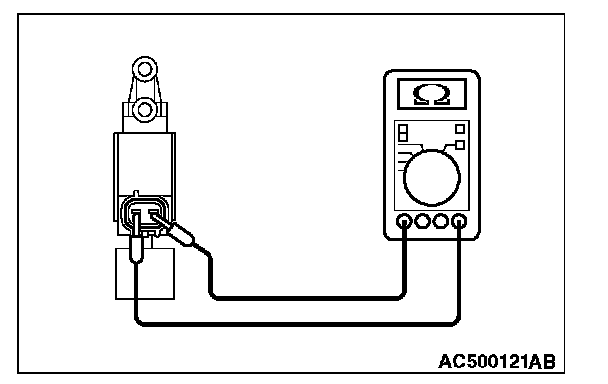

3. Measure the resistance between the terminals of the solenoid.

Standard value: 29 - 35 ohms [at 20 °C (68 °F)]
