Fuel Injector: Service and Repair

Pre-removal Operation & Post-installation Operation:

Removal Steps 1 - 19:

CAUTION: Do not kink the fuel high-pressure hose as it is made of plastics and will become damaged.

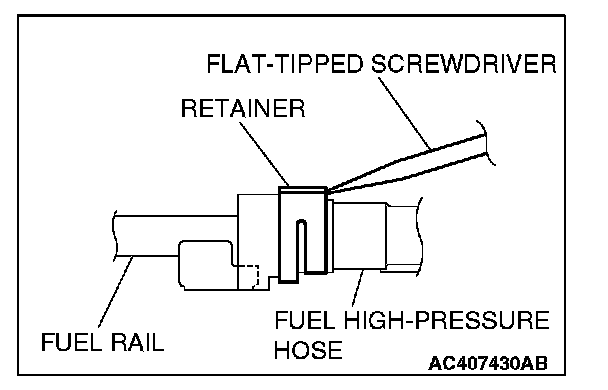

1. Insert a flat-tipped screwdriver [width 6 mm (0.24 inch), thickness 1 mm (0.04 inch)] to the retainer.

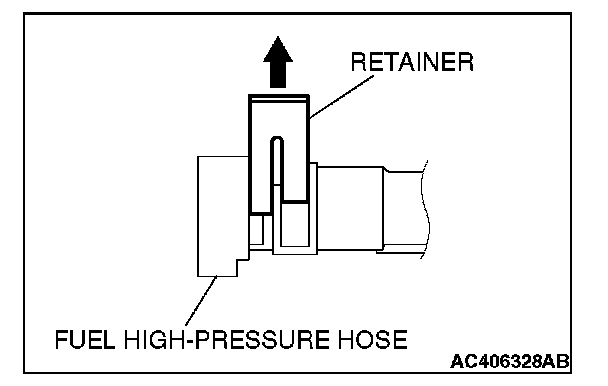

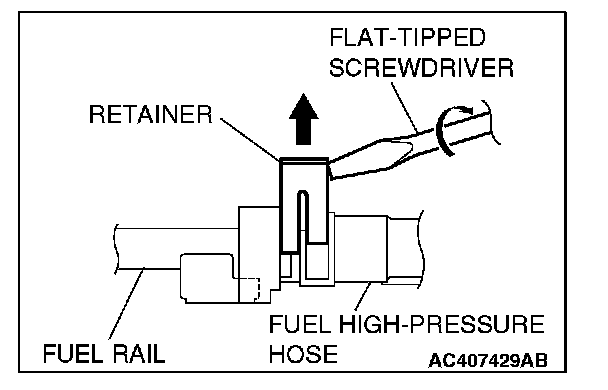

2. Turn the flat-tipped screwdriver approximately 90° to the arrowed direction, and lift the retainer to unlock and disconnect the fuel high-pressure hose.

<>

FUEL RAIL AND FUEL INJECTOR ASSEMBLY REMOVAL

CAUTION: Do not drop the injector.

Remove the fuel rail with the injectors attached to it.

INSTALLATION SERVICE POINTS

>>A<< FUEL INJECTOR ASSEMBLY INSTALLATION.

CAUTION: Do not let the engine oil get into the fuel rail.

1. Apply a drop of new engine oil to the O-ring.
2. Turn the injector to the right and left to install to the fuel rail. Be careful not to damage the O-ring. After installing, check that the item turns smoothly.
3. If it dose not turn smoothly, the O-ring may be trapped, remove the item, re-install it into the fuel rail and check again.

>>B<< FUEL HIGH-PRESSURE HOSE CONNECTION

1. Pull up the retainer of fuel high-pressure hose to unlock before installing.

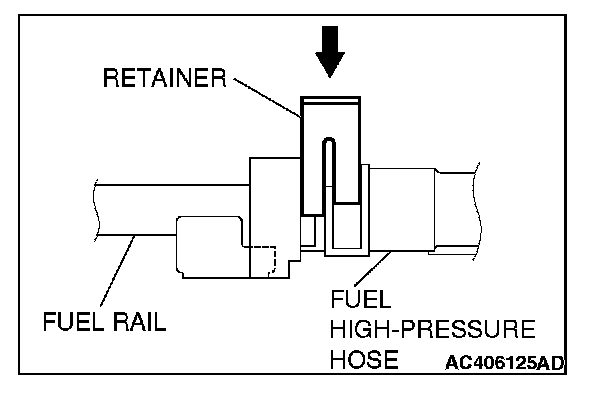

2. Install the fuel high-pressure hose to the fuel rail securely and push the retainer of fuel high-pressure hose downward and lock thoroughly.
3. After installing, slightly pull the fuel high-pressure hose and ensure that there is no disengaged fuel high-pressure hose. Also confirm that there is approximately 1 mm (0.04 inch) play at this time.
