Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL

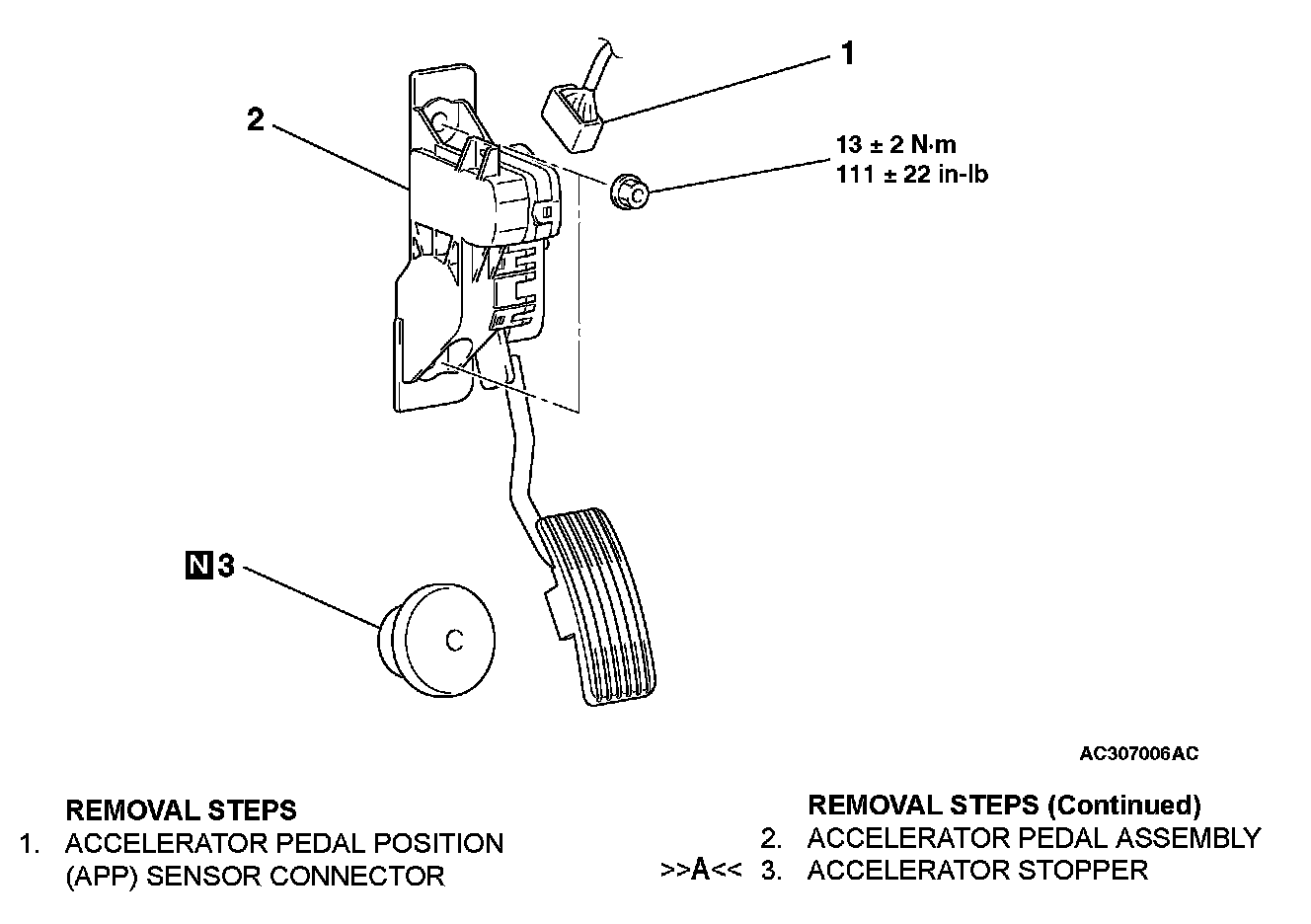

Removal Steps 1-3:

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>>A<< ACCELERATOR STOPPER INSTALLATION




1. Insert the accelerator stopper straight into the stud bolt of the floor.

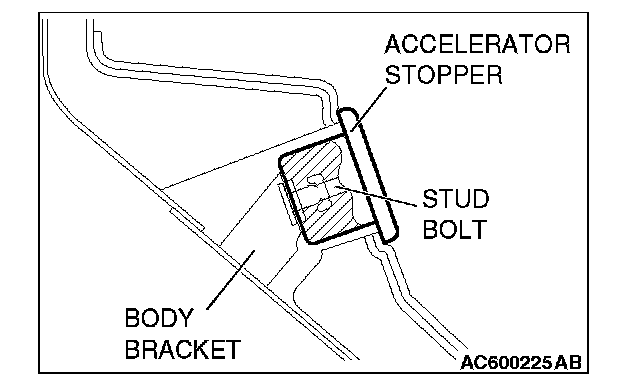

2. Install the accelerator stopper securely by turning it clockwise until its underside contacts with the body bracket as shown in the figure.
3. After the installation, slightly pull the accelerator stopper by hand to check that it cannot be removed easily (appropriate holding power: 100N or more).
