Mode 6 Data

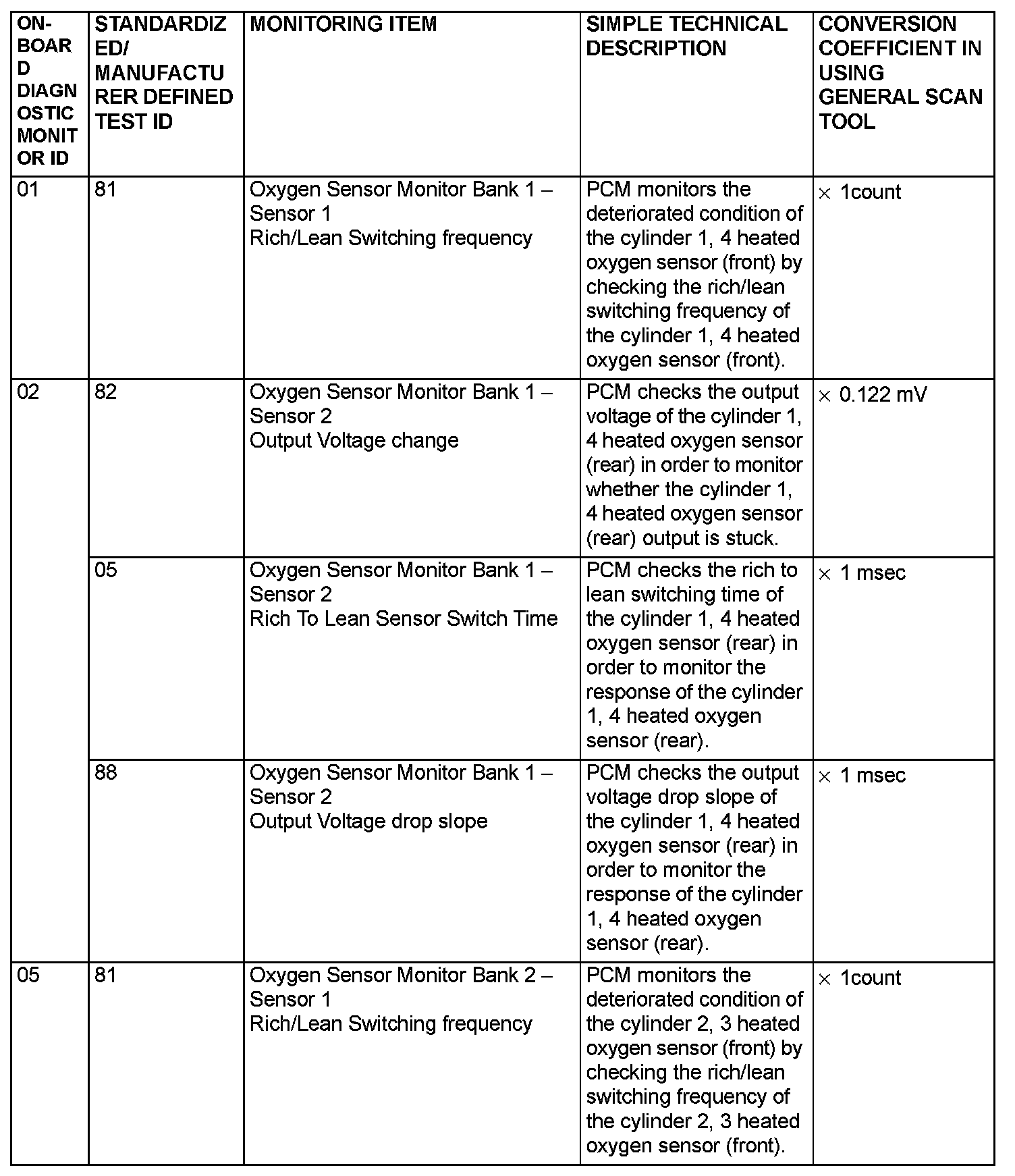

MODE 6 REFERENCE TABLEMode 6 Reference Table Part 1:
Mode 6 Reference Table Part 2:

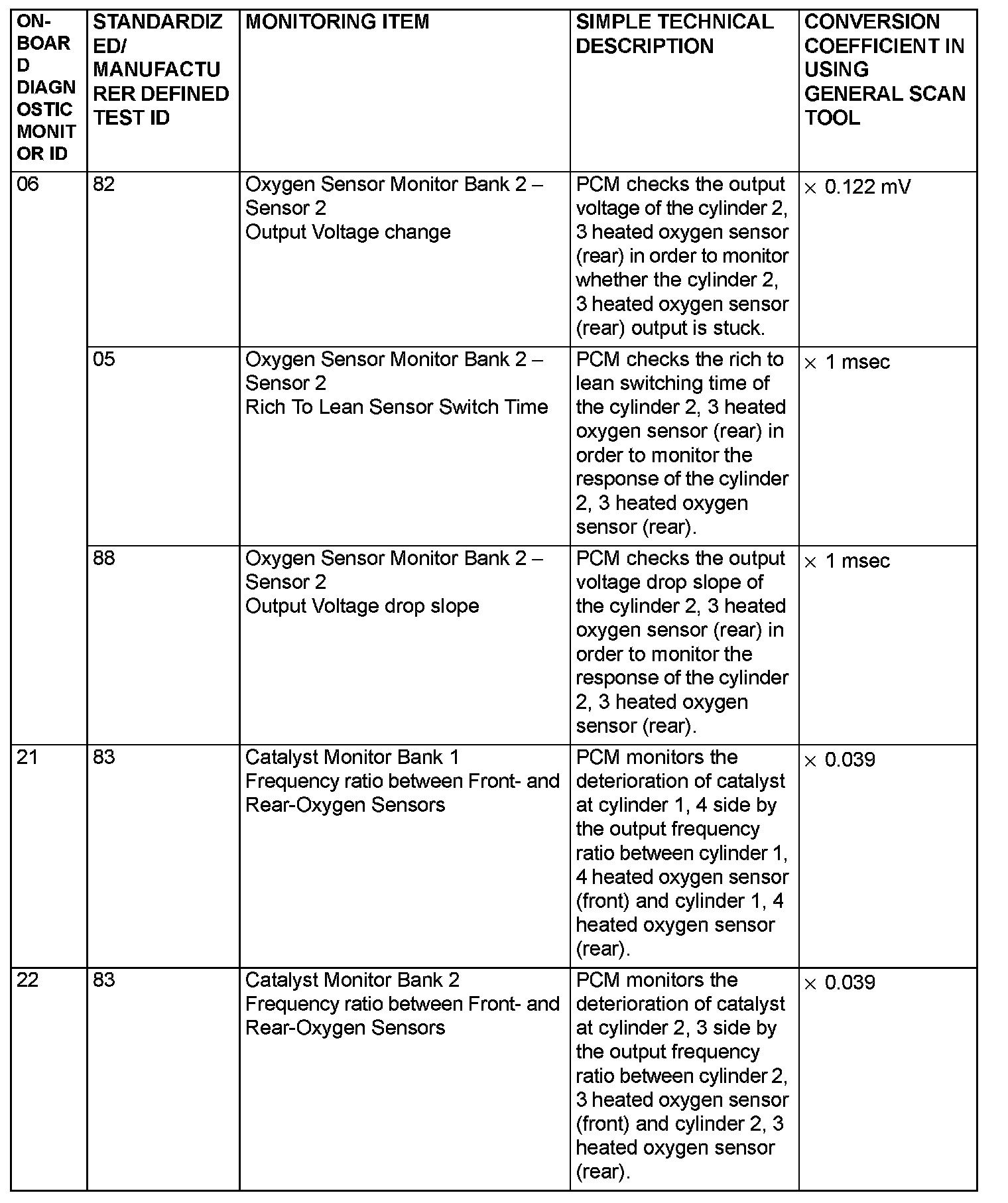

Mode 6 Reference Table Part 3:

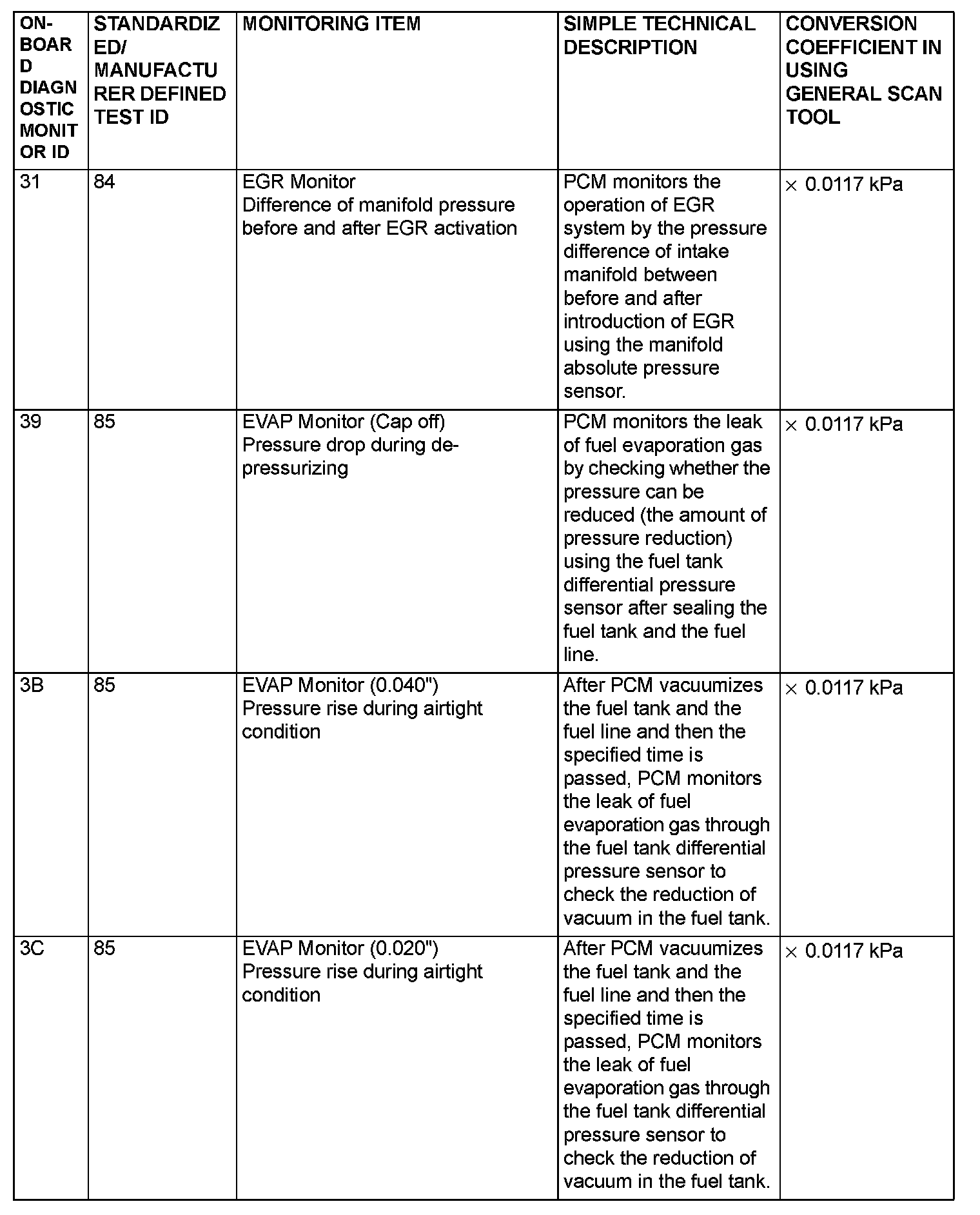

Mode 6 Reference Table Part 4:

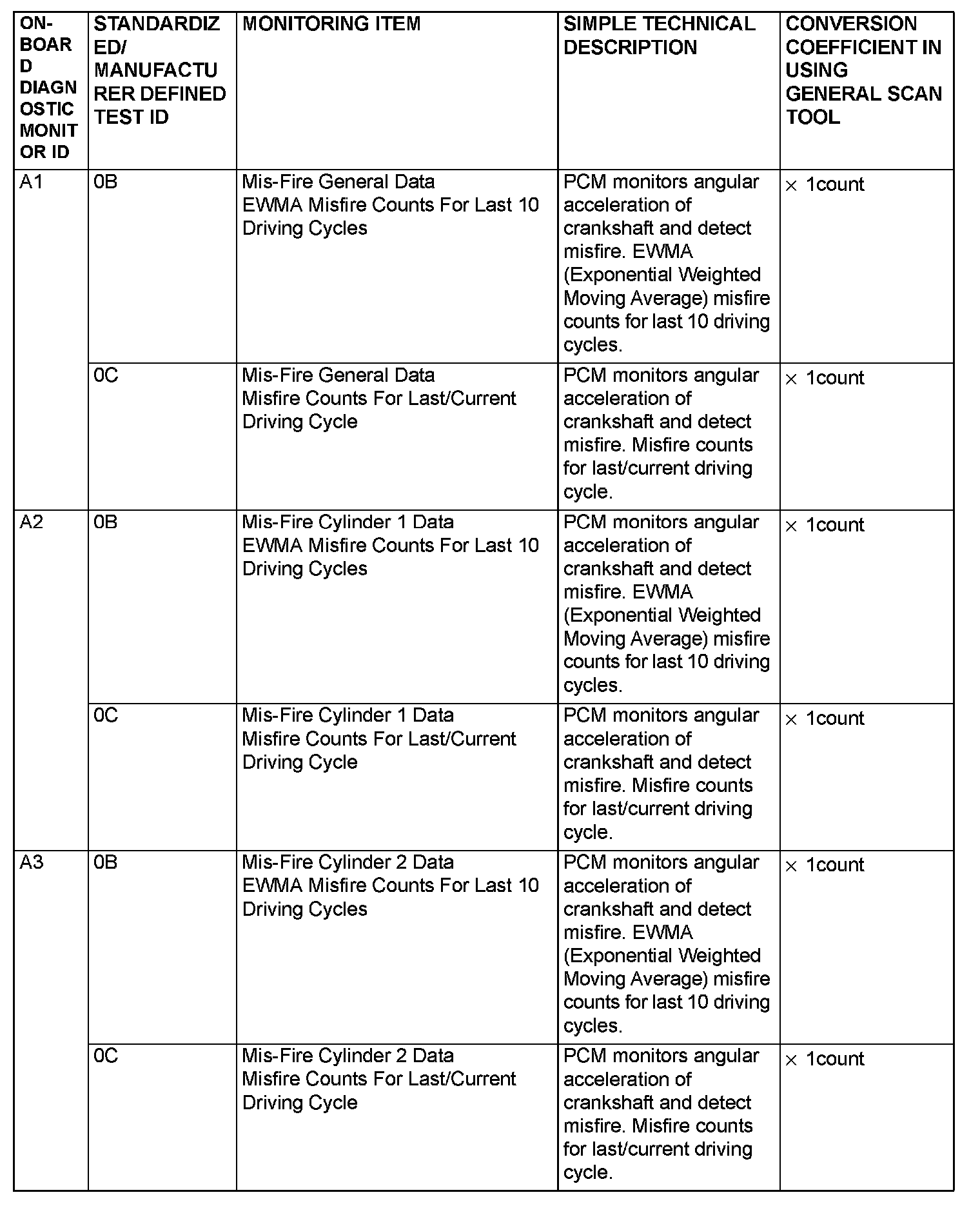

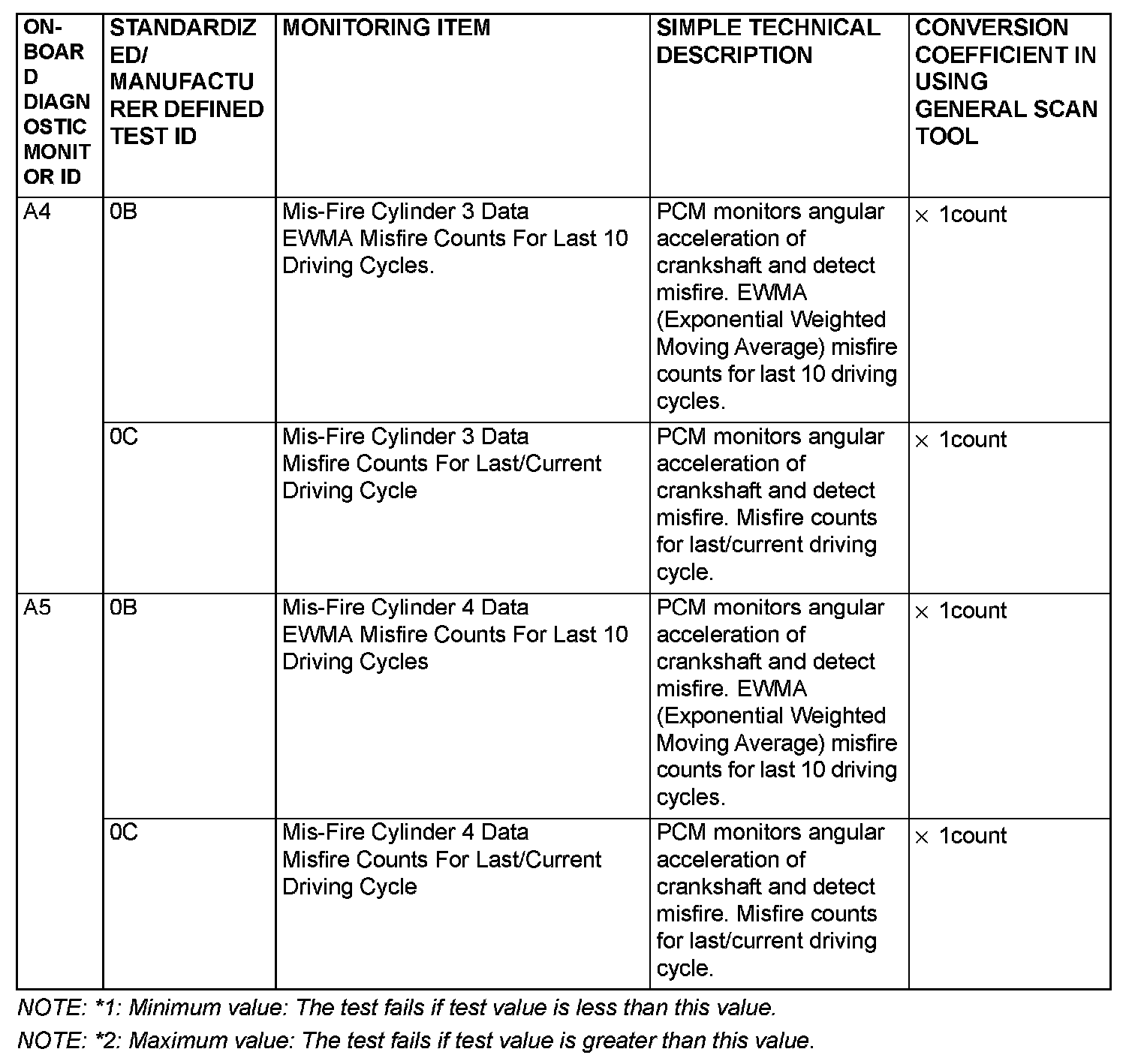

Mode 6 Reference Table Part 5:
The powertrain control module (PCM) monitors the condition of emission control system.
By selecting MODE 6 using scan tool, Test Result and Limit Value (minimum) *1 or (maximum) *2 about the main items of emission control system which PCM monitors can be confirmed. The value at the last monitoring is output by PCM as a test result.
NOTE: When not finishing the monitor of the driving cycle for the request of On-Board Monitoring Test Request, the PCM outputs the stored latest monitor test result.
NOTE: When the monitored test results are erased by the battery disconnection and so on, the PCM outputs the values in hexadecimal of "0000" or "FFFF", otherwise it outputs abnormal values and so on. In case of this, the PCM outputs are handled as invalid-values. When the first monitor (Readiness Status) is completed after this, the PCM outputs the valid-values.
NOTE: "Test Limit Type & Component ID byte" output from the PCM is given in hexadecimal of "00" or "80". "00" means the maximum value and "80" means the minimum value.
