Removal and Replacement

KNOCK SENSOR

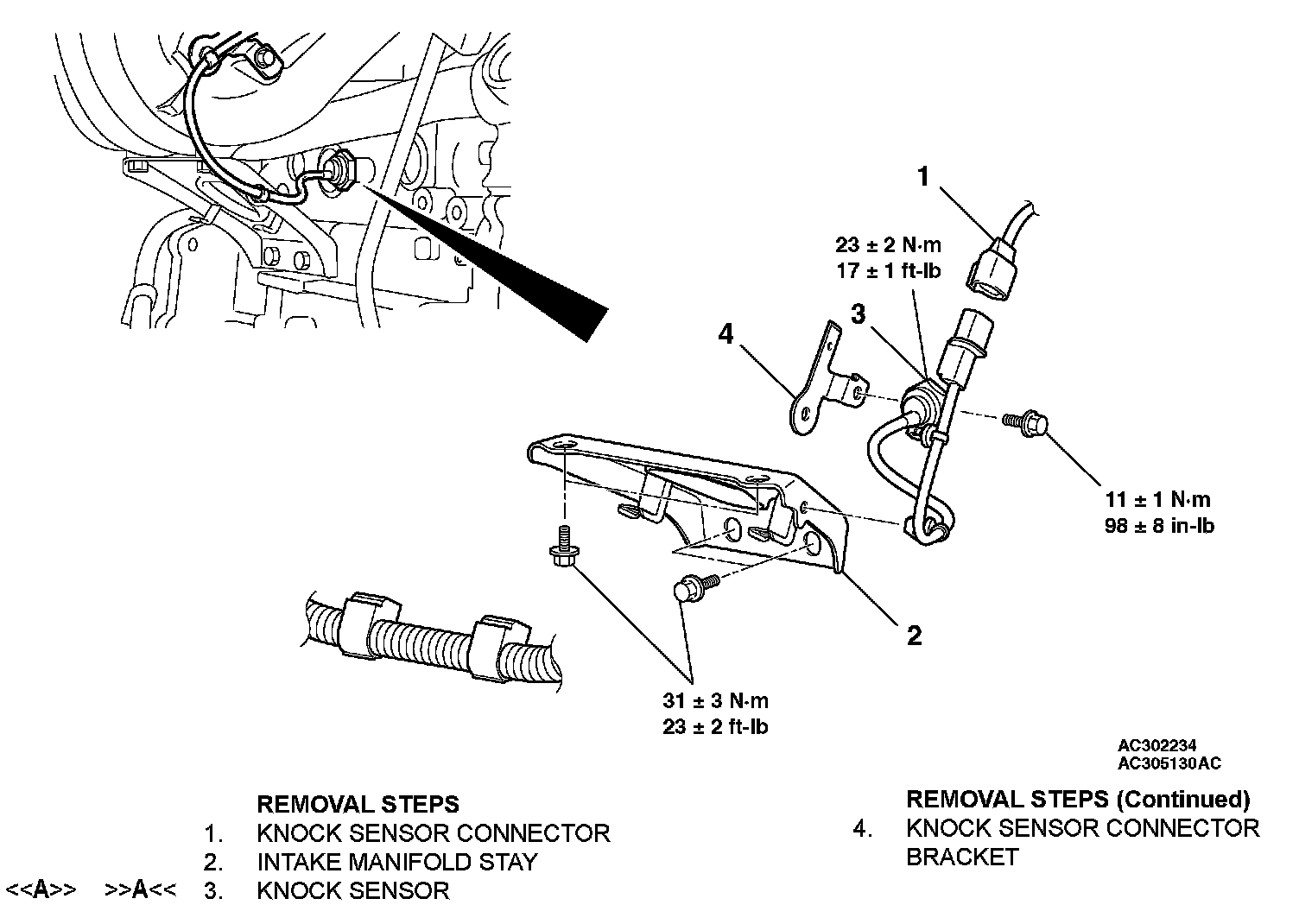

Removal Steps 1-4:

REMOVAL AND INSTALLATION <2.4L ENGINE>

CAUTION: When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to Initialization Procedure for Learning Value in MFI Engine).

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT




<> KNOCK SENSOR REMOVAL

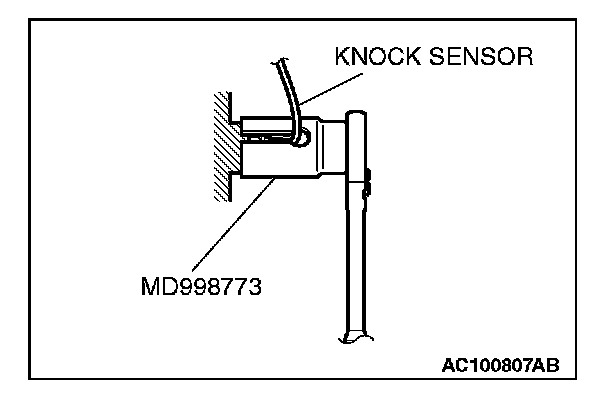

Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT




>>A<< KNOCK SENSOR INSTALLATION

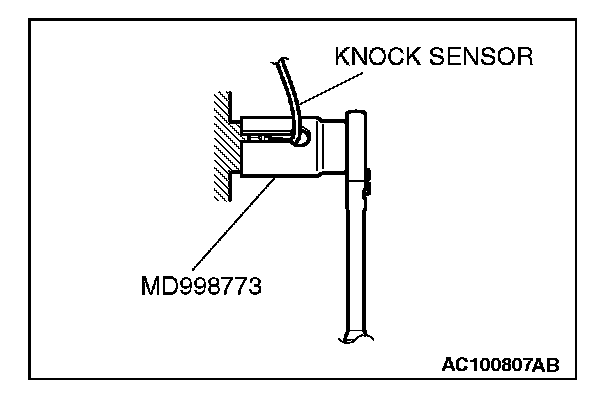

Use special tool MD998773 to install the knock sensor.
